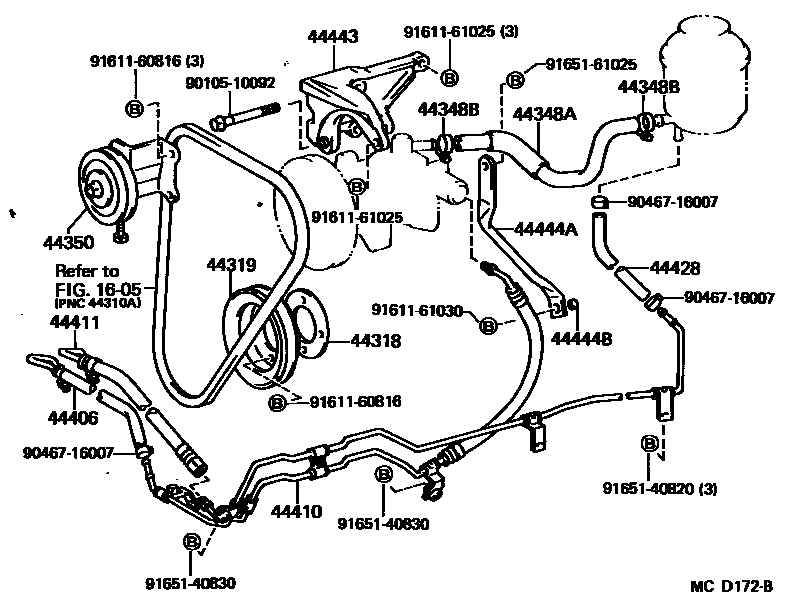

POWER STEERING TUBE

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYM4#198601-198808

44319PULLEY, VANE PUMP DRIVE

main44319-28013iYM4#198601-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-27030iYM4#198601-198603

sub44348-27100

main44348-27100iYM4#198603-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iYM4#198601-198808

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYM4#198601-198808

44406TUBE SUB-ASSY, RETURN

main44406-27020iYM4#198601-198808

44410TUBE ASSY, PRESSURE FEED

main44410-27060iYM4#198601-198808

44411HOSE, PRESSURE FEED

main44411-27040iYM4#198601-198808

44428HOSE, RETURN, NO.2

main44428-27010iYM4#198601-198808

44443BRACKET, PUMP

main44443-28021iYM4#198601-198808

44444ASTAY, PUMP, REAR NO.1

main44444-27030iYM4#198601-198808

44444BCOLLAR (FOR PUMP REAR STAY)

main90387-12031iYM4#198601-198808

9010510092

main90105-10092

9046716007

main90467-16007

9161160816

main91611-60816

9161161025

main91611-61025

9161161030

main91611-61030

9165140820

main91651-40820

9165140830

main91651-40830

9165161025

main91651-61025

21 parts on this diagram · 1 diagram in section
