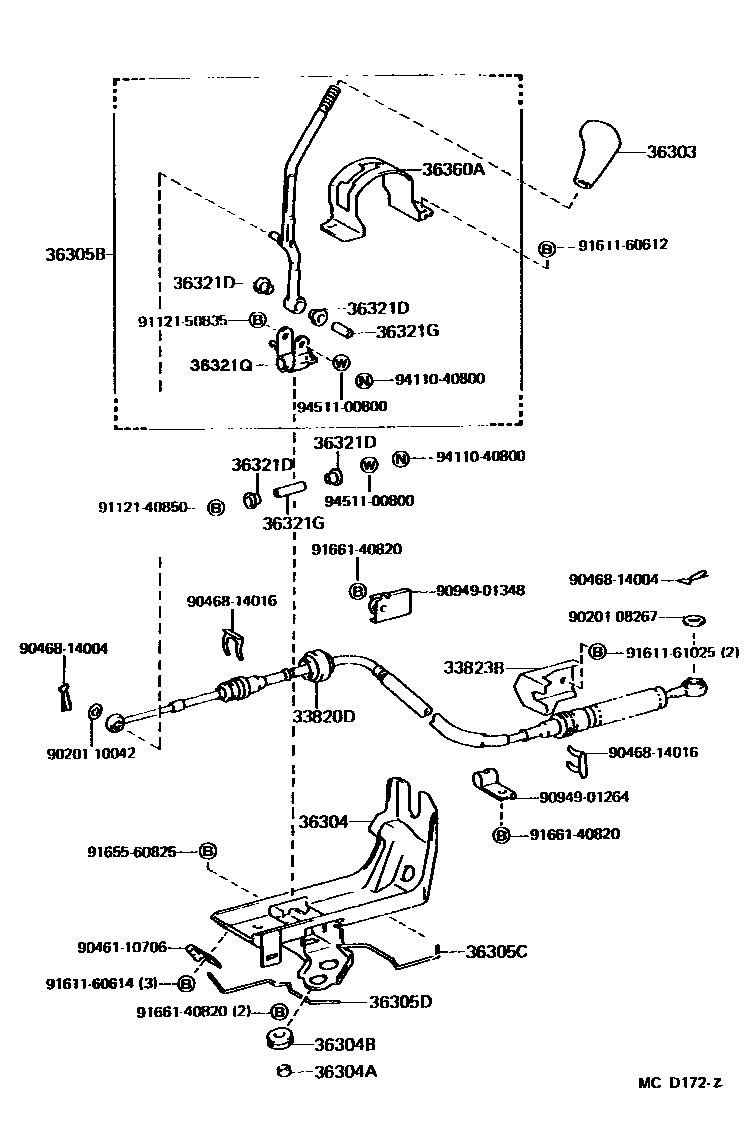

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33820DCABLE ASSY, TRANSFER CONTROL

main33820-27041iYM4#¥18,100198601-198808

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iYM4#¥1,140198601-198808

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-28010-04iYM40198601-198808

BLUE,BLUE

sub36303-28010¥2,100

main36303-28010-16iYM4#198601-198808

BROWN,BROWN

sub36303-28010¥2,100

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-27030iYM4#¥3,640198601-198808

36304ACOLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90387-09011iYM4#¥230198601-198808

36304BGROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90480-13012iYM4#¥270198601-198808

36305BLEVER SUB-ASSY, TRANSFER SHIFT

main33503-27160iYM4#¥6,000198601-198808

36305CSPRING, NO.1 (FOR TRANSFER SHIFT LEVER)

main33769-27010iYM4#¥300198601-198808

36305DSPRING, NO.2 (FOR TRANSFER SHIFT LEVER)

main33769-27020iYM4#¥300198601-198808

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11006iYM4#¥100198601-198808

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08067iYM4#¥260198601-198808

L=34

main90387-08069iYM4#¥110198601-198808

L=22

36321QLEVER, TRANSFER SHIFT

main33503-27130iYM4#¥1,000198601-198808

36360APLATE, DETENT (FOR TRANSFER SHIFT LEVER)

main33633-27020iYM4#¥1,150198601-198808

9020108267

main90201-08267¥100

9020110042

main90201-10042¥90

9046110706

main90461-10706¥190

9046814004

main90468-14004¥80

9046814016

main90468-14016¥160

9094901264

main90949-01264¥400

9094901348

main90949-01348¥470

9112140850

main91121-40850¥220

9112150835

main91121-50835

9161160612

main91611-60612¥130

9161160614

main91611-60614¥180

9161161025

main91611-61025¥240

9165560825

main91655-60825¥170

9166140820

main91661-40820¥130

9411040800

main94110-40800¥120

9451100800

main94511-00800¥100

29 parts on this diagram · 2 diagrams in section
