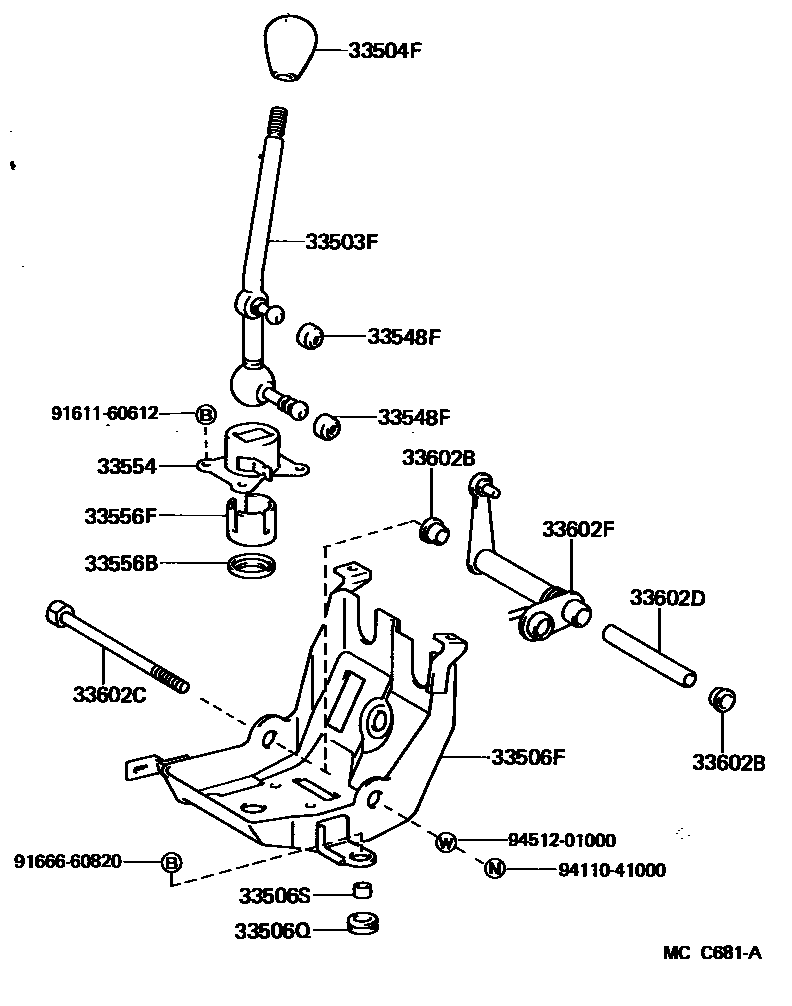

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-27050iYM30,35..4FC198509-198808

W/URETHANE STEERING WHEEL

main33503-27070iYM35..4FC198509-198808

main33503-27090iCM35,KM36..RHD..4F198509-198808

main33503-27100iCM35..LHD..4F198509-198808

main33503-27110iCM3#,YM3#,4#..5F198509-198808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-06iYM41198601-198808

BROWN,BROWN

sub33504-14070

sub33504-14050

main33504-20062-06iKM36..DLX198608-198808

BROWN,BROWN

sub33504-20062

sub33504-14040

main33504-22101-16iCM35,KM36..4F..STD198509-198808

BROWN,BROWN

sub33504-14040

sub33504-22101

main33504-22111-36iCM3#,YM31,35..5F198509-198808

BROWN,BROWN

sub33504-14050

sub33504-22111

main33504-24010-06iYM30,35,4#..5F198509-198808

W/URETHANE STRG WHEEL,BROWN,BROWN

sub33504-24010

main33504-24010-44iYM30,40..5F198509-198808

W/URETHANE STRG WHEEL,BLUE,BLUE

sub33504-24010

main33542-32010-16iYM35..4FC198509-198808

BROWN,BROWN

sub33542-32010

main33542-32040-14iYM30..4FC198509-198808

W/URETHANE STRG WHEEL,BLUE,BLUE

sub33542-32040

main33542-32040-16iYM30,35..4FC198509-198808

W/URETHANE STRG WHEEL,BROWN,BROWN

sub33542-32040

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-27020iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-13012iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33554CAP, SHIFT LEVER

main33554-27020iCM35,KM36..4F198509-198808

main33554-27030iCM3#,YM3#,4#..5F198509-198808

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-24001iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-27020iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33602CBOLT (FOR SELECT LEVER)

main90101-10191iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33602DCOLLAR (FOR SELECT LEVER)

main90387-10083iCM3#,KM36,YM3#,4#..4F,5F198509-198808

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-27040iCM35,KM36..4F198509-198808

main33602-27050iCM3#,YM3#,4#..5F198509-198808

9161160612

main91611-60612

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

17 parts on this diagram · 6 diagrams in section
