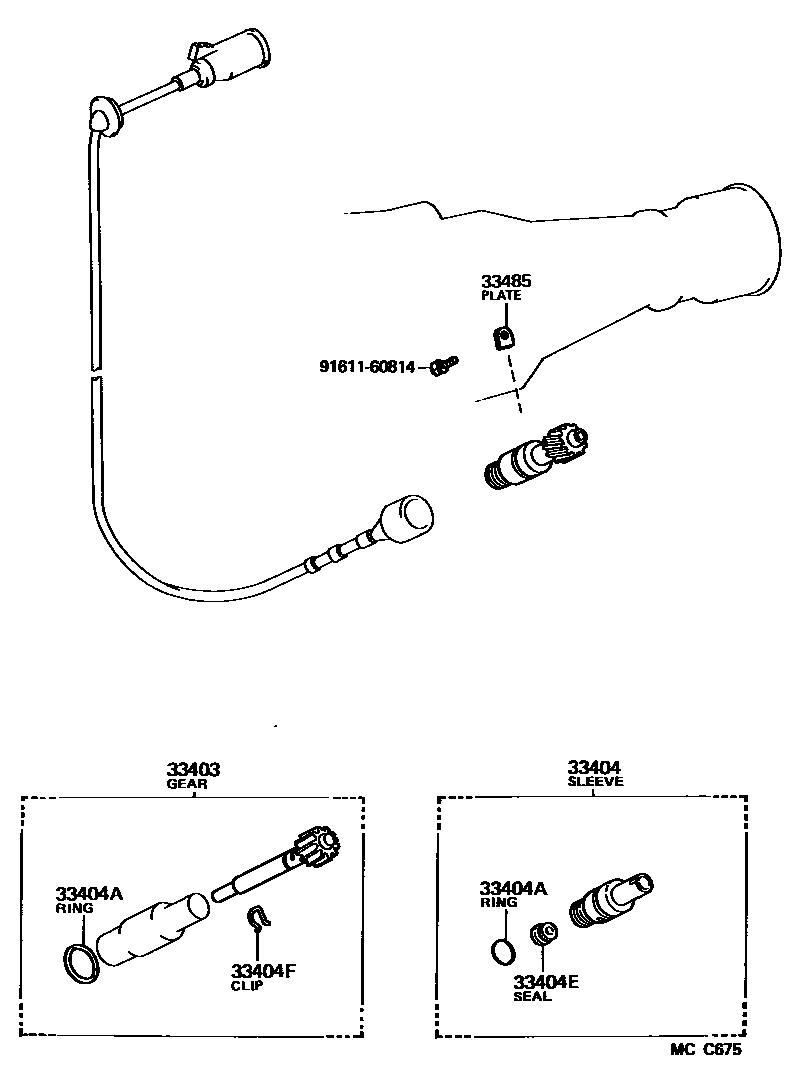

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29035iYM30..GEN198608-198808

N=22,MARK 22:6

main33482-29045iKM36..GEN198509-198808

N=19,MARK 19:5

main33482-29075iYM4#198601-198808

N=21,MARK 21:6

main33482-39035iYM30,31..GEN198509-198608

N=21,MARK 21:6

main33482-39085iYM30,35..5F..ARL198509-198808

N=18,MARK 18:5

main33482-39095iKM36..05S198509-198808

N=16,MARK 16:4

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-26010iYM4#198610-198705

main33404-35010iCM35,KM3#,YM3#,4#..MTM198509-198808

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iYM4#198610-198705

main90301-18018iCM3#,KM3#,YM30,35..MTM198509-198808

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCM3#,KM3#,YM3#,4#..MTM198509-198808

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCM3#,KM3#,YM3#,4#..MTM198509-198808

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCM3#,KM3#,YM3#,4#..MTM198509-198808

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
