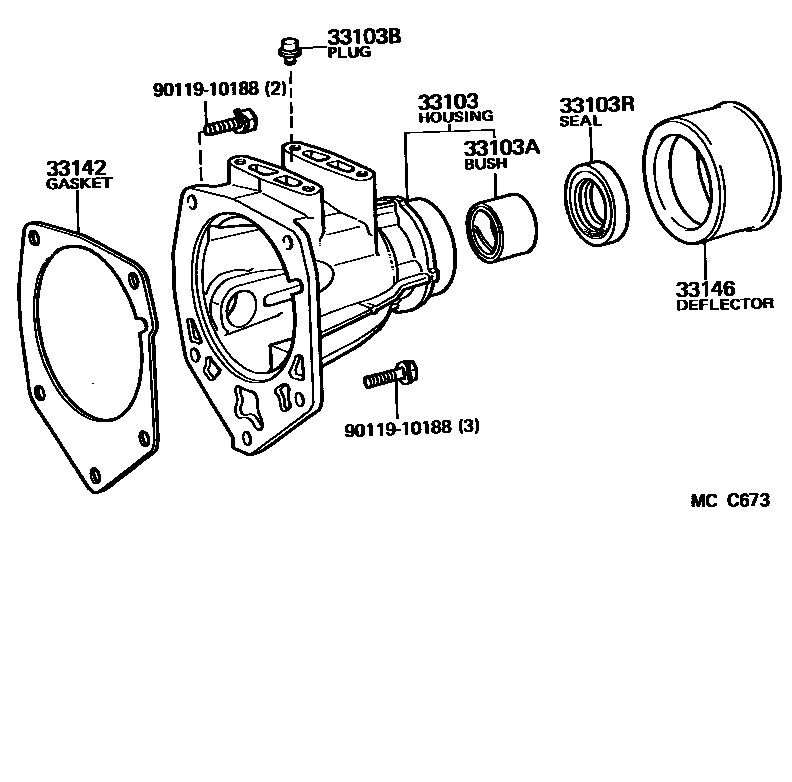

EXTENSION HOUSING (MTM)

0001 1 0002 1 0004 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-27020iCM35,KM3#..4F,4H198509-198808

sub33103-27021

main33103-28010iCM3#,YM3#..5F,5H198509-198808

sub33103-28031

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iCM3#,KM3#,YM3#..MTM198509-198808

sub90999-73139

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03075iCM35,KM3#..4F,4H198509-198808

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38040iCM3#,KM3#,YM30,35..MTM198609-198808

sub90311-38030

main90311-38043iCM35,KM3#,YM3#..MTM198509-198609

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iCM3#,YM3#,4#..5F,5H198509-198808

main33142-26010iCM35,KM3#..4F,4H198509-198808

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iCM3#,KM3#,YM3#..MTM198509-198808

sub33146-30020

9011910188

main90119-10188

7 parts on this diagram · 3 diagrams in section
