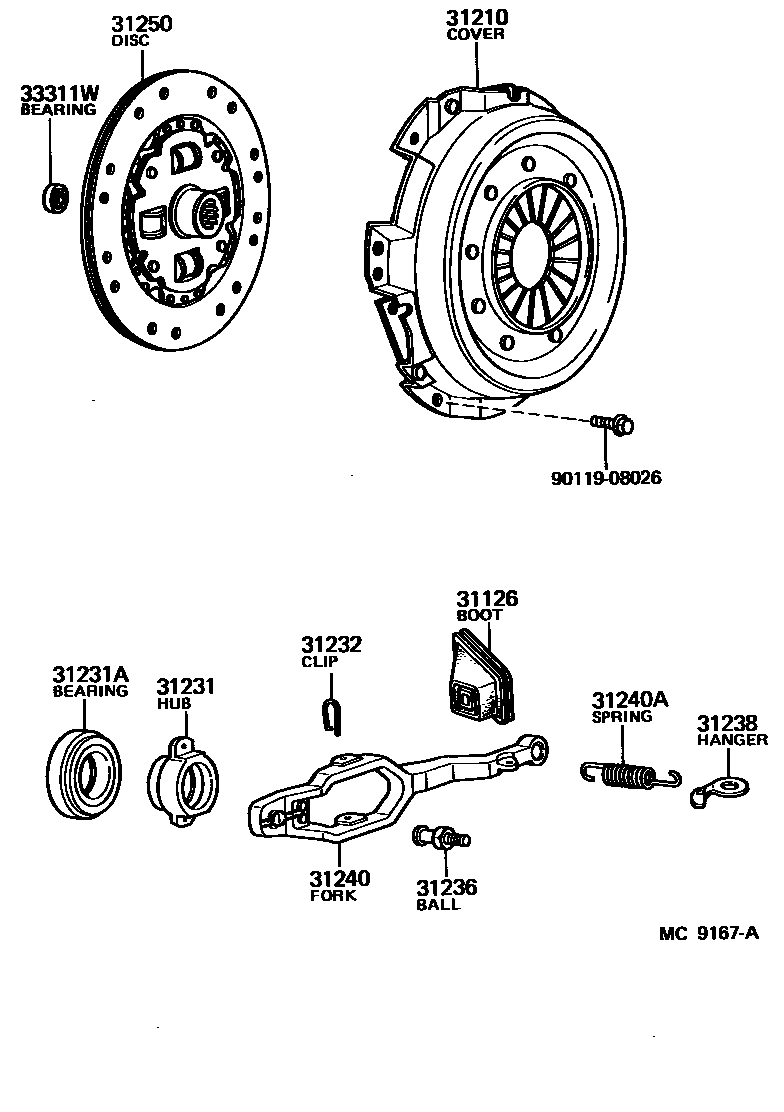

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCM3#,YM3#,4#..5F,5H198509-198808

main31126-20070iCM35..4F198509-198808

main31126-27020iKM3#198509-198808

31210COVER ASSY, CLUTCH

main31210-12100iKM3#198509-198610

sub31210-12180

main31210-26030iCM35,YM3#..MTM198509-198702

sub31210-26070

main31210-26070iCM3#,YM35,4#..MTM198702-198808

sub31210-22121

main31210-27010iKM3#198610-198808

sub31210-27011

main31210-36029iYM4#198601-198702

sub31210-36200

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKM3#198509-198808

main31231-36070iCM3#,YM3#,4#..MTM198509-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iCM3#,KM3#,YM3#,4#..MTM198509-198808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iCM3#,YM3#,4#..MTM198509-198808

main31232-30020iKM3#198509-198808

31236BALL, RELEASE FORK

main31236-30060iCM3#,KM3#,YM3#,4#..MTM198509-198808

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM3#198509-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-20071iCM3#,YM3#,4#..5F,5H198509-198808

main31204-20090iCM35..4F198509-198808

main31204-27011iKM3#198509-198808

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM3#198509-198808

31250DISC ASSY, CLUTCH

main31250-20113iCM3#198509-198808

sub31250-20114

main31250-20120iYM4#198601-198609

sub31250-20121

main31250-20121iYM4#198609-198808

sub31250-25122

main31250-27025iKM3#..GEN198509-198808

sub31250-27060

main31250-27060iKM36..ARL198509-198808

sub31250-27061

main31250-35062iYM3#..5F198509-198808

sub31250-35063

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYM3#,4#..5F198509-198808

sub90363-12024

main90363-12003iKM3#198509-198808

main90363-12004iCM3#198509-198808

9011908026

main90119-08026

12 parts on this diagram · 3 diagrams in section
