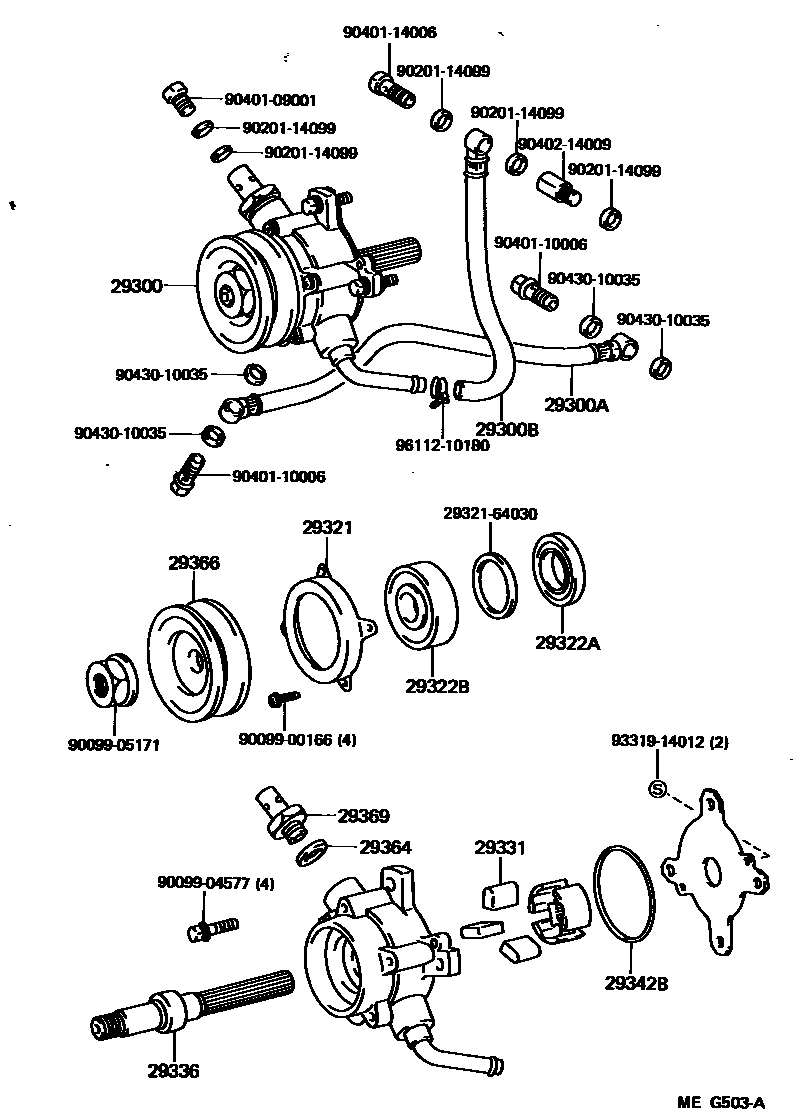

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-64030i1C..CM35198509-198608

PULLEY OD=70.1

main29300-64031i1C,2C..CM3#198608-198808

PULLEY OD=74.6

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02099i1C,2C..CM3#198509-198808

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02102i1C,2C..CM3#198509-198808

29321RING, OIL SEAL STOP, VACUUM PUMP

main29314-64030i1C,2C..CM3#198509-198808

29322ASEAL, VACUUM PUMP OIL

main29341-64030i1C,2C..CM3#198509-198808

29322BBEARING, VACUUM PUMP

main90099-10166i1C,2C..CM3#198509-198808

29331BLADE, VACUUM PUMP, A

main29331-64030i1C,2C..CM3#198509-198808

29336SHAFT, VACUUM PUMP

main29336-64030i1C,2C..CM3#198509-198808

sub29336-64031

sub90099-10166

29342BRING, O

main29342-64030i1C,2C..CM3#198509-198808

29364WASHER, VACUUM PUMP

main29364-66010i1C,2C..CM3#198509-198808

29366PULLEY, VACUUM PUMP

main29366-64030i1C..CM35198509-198608

OD=70.1

main29366-64031i1C,2C..CM3#198608-198808

OD=74.6

29369VALVE SUB-ASSY, CHECK

main29369-64030i1C,2C..CM3#198509-198808

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114006

main90401-14006

9040214009

main90402-14009

9043010035

main90430-10035

9331914012

main93319-14012

9611210180

main96112-10180

24 parts on this diagram · 1 diagram in section
