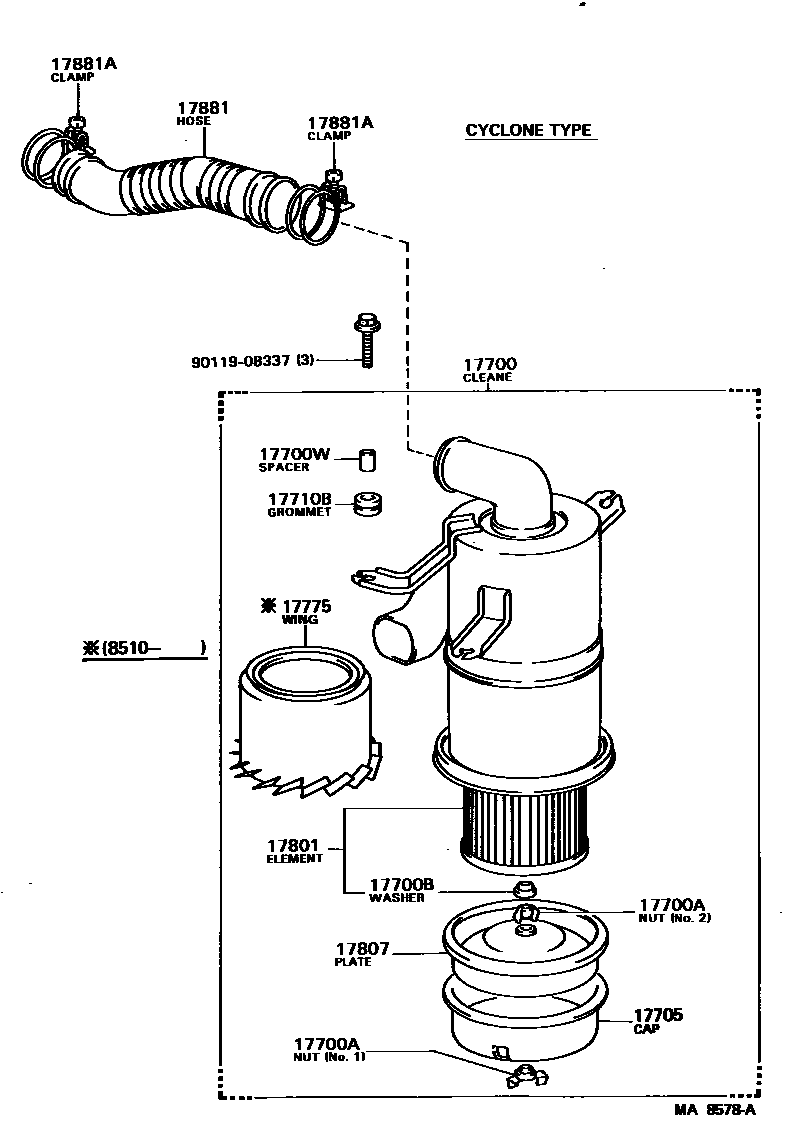

AIR CLEANER

0001 1 0002 1 0003 1 0005 1 0007 1

17700CLEANER ASSY, AIR

main17700-13560i5KC..KM36198805-198808

main17700-13570i5KC..KM36198509-198805

main17700-13600i5K..KM3#..4H198509-198808

main17700-13610i5K..KM3#..LHD198509-198808

CYCLONE TYPE

main17700-13680i5K..KM36..05S198707-198808

main17700-64180i1C,2C..CM3#198509-198808

main17700-72100i2Y#,3YC..YM3#,4#198509-198708

sub17700-72101

main17700-72101i2Y#,3YC..YM30,35,40198708-198808

main17700-72110i2Y#,3YC..YM30,35,4#198509-198708

CYCLONE TYPE

sub17700-72111

main17700-72111i2Y#,3YC..YM30,35,40198708-198808

CYCLONE TYPE

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i1C,2C..CM3#198509-198808

NO.1

main94271-00800i1C,2C..CM3#198509-198808

NO.2

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i1C,2C..CM3#198509-198808

17700WSPACER(FOR AIR CLEANER)

main90560-08038i1C,2C..CM3#198509-198808

17705CAP SUB-ASSY, AIR CLEANER

main17705-13130i5KC..KM36198509-198808

main17705-13140i5K..KM3#198509-198808

main17705-64070i1C,2C..CM3#198509-198808

main17705-72040i2Y#,3YC..YM3#,4#198509-198808

main17705-72050i2Y#,3YC..YM30,35,4#198509-198808

CYCLONE TYPE

17710BGROMMET

main90480-16014i1C,2C..CM3#198509-198808

17775WING, CYCLONE

main17775-64010i1C,2C..CM3#198509-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13050i2Y#,3YC..YM3#,4#198509-198808

main17801-64030i1C,2C..CM3#198509-198808

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17703-64010i1C,2C..CM3#198509-198808

17881HOSE, AIR CLEANER, NO.1

main17881-13140i5K#..KM36..RHD198509-198808

main17881-13150i5K..KM3#..LHD198509-198808

main17881-64110i1C,2C..CM3#198509-198808

sub17880-64110

sub90460-73003

sub90460-77003

main17881-72020i2Y#,3YC..YM3#,4#198509-198808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80001i2Y#,3YC..YM3#,4#198509-198808

sub90460-80006

main96111-10690i1C,2C..CM3#198509-198808

9011908337

main90119-08337

12 parts on this diagram · 5 diagrams in section
