CYLINDER HEAD

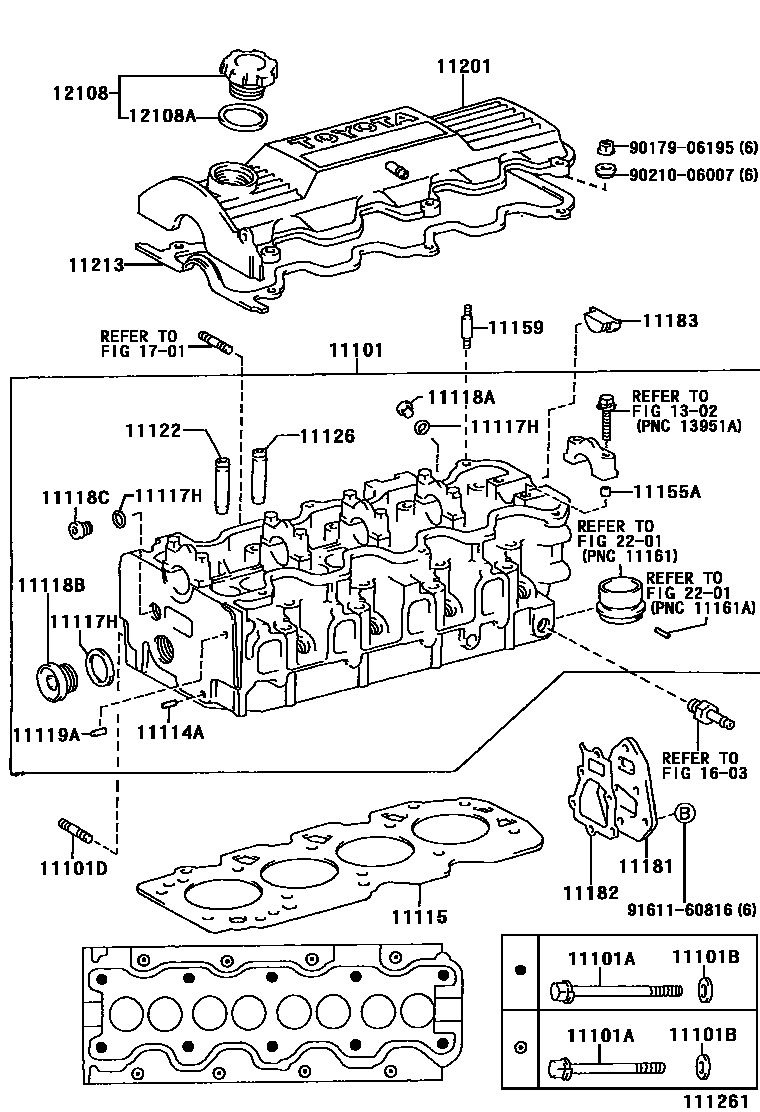

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-13041i198509-198808
main11101-13051i198509-198808
main11101-13062i198509-198808
SINGAPORE SPEC
main11101-64060i198509-198808
sub11101-64061
main11101-64100i198709-198801
sub11101-64110
main11101-64120i198801-198808
sub11101-64121
main11101-71010i198509-198808
main11101-73010i198601-198808
11101ABOLT(FOR CYLINDER HEAD SET)
main90105-11018i198509-198808
*11-1.25PX123-51.5
sub90910-02097
main90105-11019i198509-198808
*11-1.25PX145-51.5
sub90910-02099
main90105-12056i198509-198808
main90910-02069i198509-198808
main90910-02074i198805-198808
HEAD FR RIGHT
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10005i198509-198808
main90201-12222i198509-198808
main90201-13021i198509-198808
11101DBOLT, STUD(FOR WATER OUTLET)
main92122-60820i198509-198808
11114APIN, STRAIGHT
main90250-06068i198509-198808
L=11,OD=6
11115GASKET, CYLINDER HEAD
main11115-13040i198509-198808
sub11115-13041
main11115-64070i198509-198808
sub11115-64110
main11115-64100i198709-198808
sub11115-64121
main11115-71011i198509-198808
sub11115-73040
11117HGASKET(FOR WATER HOLE)
main90430-10204i198509-198808
PNC 11118A
main90430-12010i198509-198808
PNC 11118C
main90430-20004i198509-198808
main90430-33133i198509-198808
PNC 11118B
11118APLUG, STRAIGHT, NO.1
main90341-10005i198509-198808
11118BPLUG, STRAIGHT, NO.2
main90341-32070i198509-198808
11118CPLUG, STRAIGHT, NO.3
main90341-12002i198509-198705
sub90341-12013
main90341-12013i198705-198808
11119APIN, STRAIGHT, NO.1
main90250-06068i198509-198808
L=11,OD=6
main90250-08120i198509-198808
L=18,OD=8,L=18,OD=8
11122BUSH, INTAKE VALVE GUIDE
main11122-24020i198509-198808
STD,STD
main11122-64010i198509-198808
STD,STD
main11122-71020i198509-198808
STD,STD
main11123-24020i198509-198808
O/S 0.05,O/S 0.05
main11123-64010i198509-198808
O/S 0.05,O/S 0.05
main11123-71020i198509-198808
O/S 0.05,O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-24020i198509-198808
STD,STD
main11123-24020i198509-198808
O/S 0.05,O/S 0.05
main11126-64010i198509-198808
STD,STD
sub11126-64030
main11126-71020i198509-198808
STD,STD
main11127-64010i198509-198808
O/S 0.05,O/S 0.05
sub11127-64030
main11127-71020i198509-198808
O/S 0.05,O/S 0.05
11155APIN, RING W/HEAD
main90253-11021i198509-198808
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
main90116-06023i198509-198808
11181PLATE, CYLINDER HEAD, REAR
main11181-13020i198705-198808
main11181-13040i198509-198808
main11181-24020i198509-198705
ADR 36 SPEC
sub11181-13020
main11181-64010i198509-198808
main11181-71010i198509-198808
11182GASKET, CYLINDER HEAD REAR PLATE
main11182-24010i198509-198808
sub11182-13020
main11182-64010i198509-198808
sub11182-64020
main11182-71010i198509-198808
sub11182-71011
11183PLUG, SEMICIRCULAR
main11183-64010i198509-198808
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-13021i198712-198808
main11201-19026i198509-198712
sub11201-13021
main11201-64060i198509-198808
main11201-79035i198509-198808
sub11201-71011
sub11213-71020
sub90210-09001
11213GASKET, CYLINDER HEAD COVER
main11213-22010i198509-198808
main11213-64020i198509-198808
sub11213-64040
main11213-71020i198509-198808
12108CAP SUB-ASSY, OIL FILLER
main12180-13030i198601-198808
sub12180-55010
main12180-61010i198705-198808
sub12180-70020
main12180-70010i198509-198601
sub12108-78010
main12180-71011i198509-198705
sub12180-61010
12108AGASKET(FOR OIL FILLER CAP)
main12195-71020i198509-198808
main90430-37140i198509-198808
1302
1603
1701
2201
9017906195
main90179-06195
9021006007
main90210-06007
9161160816
main91611-60816

29 parts on this diagram · 3 diagrams in section
