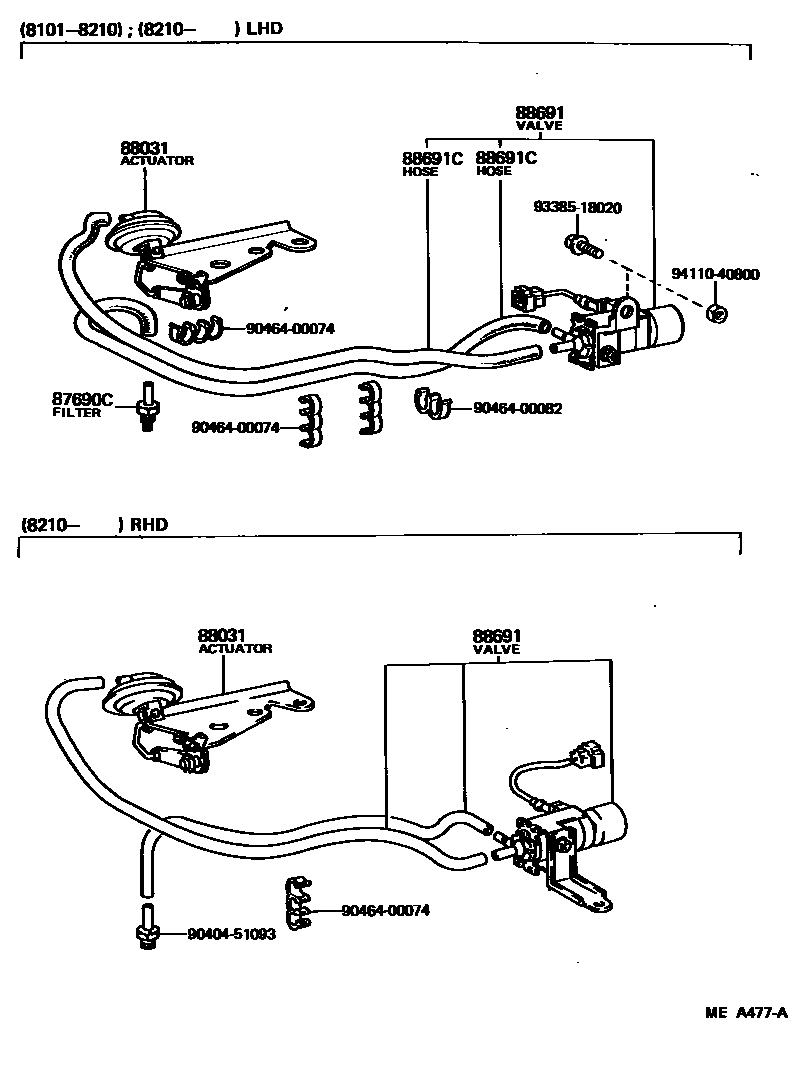

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0005 1

87690CFILTER ASSY, GAS

main90917-11022iKM20..LHD..GEN198101-198508

main90917-87002iKM20..RHD..(HRF,SRF)..GEN198101-198210

88031ACTUATOR SET, IDLE-UP

main88031-12081iKM20..(HRF,SRF)..GEN198101-198508

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95701iKM20..LHD..GEN198101-198508

main88690-95710iKM20..RHD..(HRF,SRF)..GEN198101-198210

main88690-95718iKM20..RHD..GEN198210-198508

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main95411-10060iKM20..LHD..GEN198101-198508

*H,L=390,MARK=#0,*H,L=390

sub90999-92003

main95411-19960iKM20..LHD..GEN198101-198508

*H,L=420,MARK=#*

sub90999-92003

9040451093

main90404-51093

9046400074

main90464-00074

9046400082

main90464-00082

9338518020

main93385-18020

9411040800

main94110-40800

9 parts on this diagram · 4 diagrams in section
