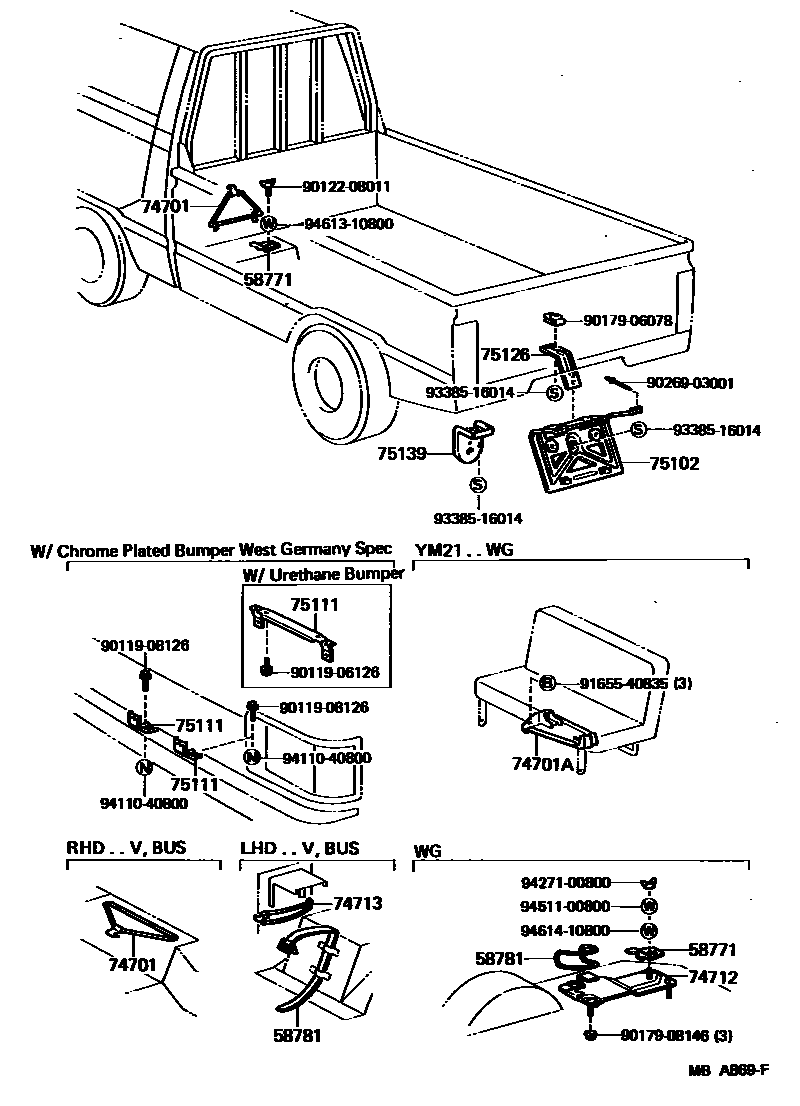

TOOL BOX & LICENSE PLATE BRACKET

58771CLAMP, JACK, NO.1

main74713-87001iKM20..TR197910-198210

main74713-95704iKM20..WG197910-198508

58781BAND, TOOL BAG

main58781-87001iCM20,KM20..LHD..(BUS,V)197910-198508

main58795-20011iKM20..WG197910-198508

74701CLAMP SUB-ASSY, TOOL BAG

main74701-87402iKM20..TR197910-198210

main74701-95601iCM20,KM20,YM2#..RHD..(BUS,V)197910-198508

sub58705-95701

74701AREST SUB-ASSY, TOOL BAG

main74701-95704iYM21..08S198311-198508

74712HANGER, JACK HOLDER

main74701-95703iKM20..WG197910-198508

74713BAND, JACK HOLDER

main58795-20011iKM20..V..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;KM20..LHD..V..SRF..4H..EUR198103-198210

WEST GERMANY SPEC

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-87401iKM20..TR..CBU197910-198210

75111BRACKET, FRONT LICENSE PLATE

main75101-95700iKM20..DLX198108-198210

W/URETHANE BUMPER

main75111-95703×2iKM20..WG;KM20..02S..ARL197910-198204

W/CHROME PLATED BUMPER

main75111-95706×2iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198103-198210

WEST GERMANY SPEC

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-87401iKM20..TR..CBU197910-198210

75139BRACKET, REFLEX REFLECTOR

main75139-87401×2iKM20..03S..ARL197910-198210

9011906126

main90119-06126

9011908126

main90119-08126

9012208011

main90122-08011

9017906078

main90179-06078

9017908146

main90179-08146

9026903001

main90269-03001

9165540835

main91655-40835

9338516014

main93385-16014

9411040800

main94110-40800

9427100800

main94271-00800

9451100800

main94511-00800

9461310800

main94613-10800

9461410800

main94614-10800

23 parts on this diagram · 1 diagram in section
