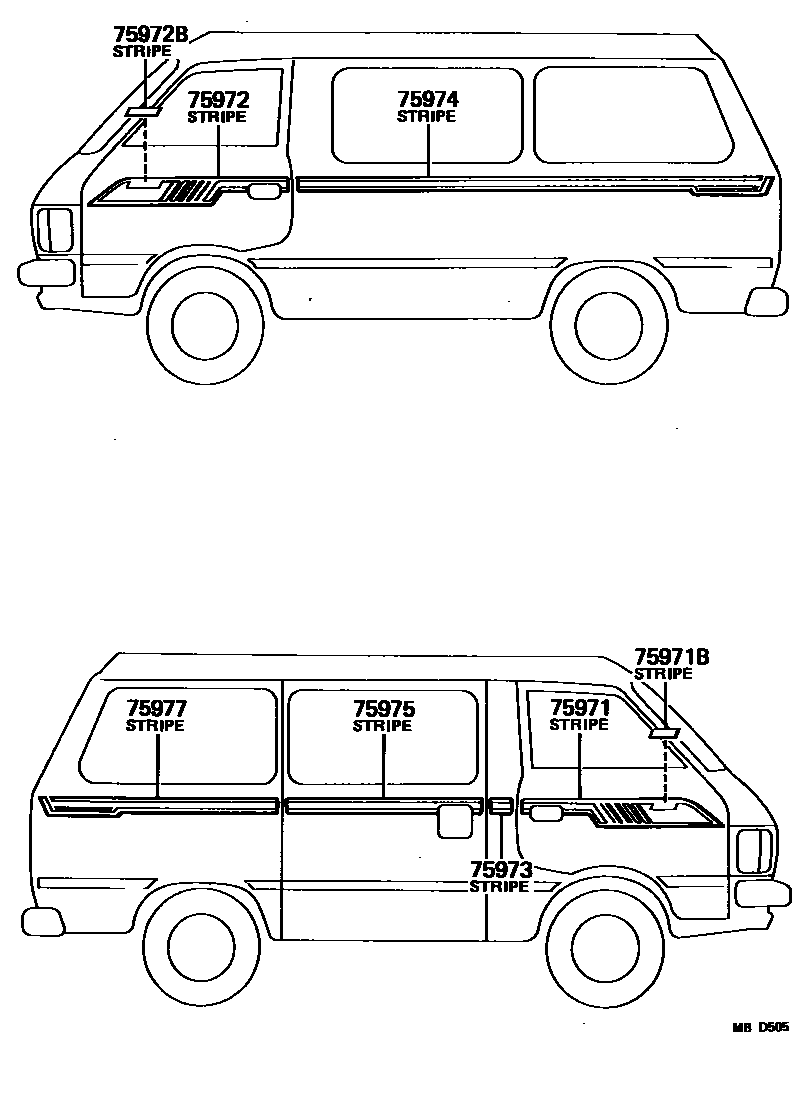

BODY STRIPE
75971STRIPE, SIDE, RH NO.1
NIGERIA SPEC,RED & DARK GRAY,RED/MAROON
NIGERIA SPEC,ORANGE & BLACK,BROWN
LIGHT GRAY & RED,RED/MAROON
BROWN & GOLD,BROWN
75971BSTRIPE, SIDE, RH NO.1 (FOR CENTER)
NIGERIA SPEC,BLACK,BLACK
NIGERIA SPEC,DARK BLUE,GRAY
75972STRIPE, SIDE, LH NO.1
NIGERIA SPEC,RED & DARK GRAY,RED/MAROON
NIGERIA SPEC,ORANGE & BLACK,BROWN
LIGHT GRAY & RED,RED/MAROON
BROWN & GOLD,BROWN
75972BSTRIPE, SIDE, LH NO.1 (FOR CENTER)
NIGERIA SPEC,BLACK,BLACK
NIGERIA SPEC,DARK BLUE,GRAY
75973STRIPE, SIDE, RH NO.2
BROWN & RED,RED/MAROON
BROWN & GOLD,BROWN
NIGERIA SPEC,RED & DARK GRAY,RED/MAROON
NIGERIA SPEC,ORANGE & BLACK,BROWN
LIGHT GRAY & RED,RED/MAROON
BROWN & GOLD,BROWN
75974STRIPE, CENTER PILLAR, LH NO.2
BROWN & RED,RED/MAROON
BROWN & GOLD,BROWN
LIGHT GRAY & RED,RED/MAROON
BROWN & GOLD,BROWN
NIGERIA SPEC,RED & DARK GRAY,RED/MAROON
NIGERIA SPEC,ORANGE & BLACK,BROWN
75975STRIPE, SIDE, RH UPR NO.3
NIGERIA SPEC,RED & DARK GRAY,RED/MAROON
NIGERIA SPEC,ORANGE & BLACK,BROWN
BROWN & RED,RED/MAROON
BROWN & GOLD,BROWN
LIGHT GRAY & RED,RED/MAROON
BROWN & GOLD,BROWN
75977STRIPE, SIDE, RH NO.4
NIGERIA SPEC,RED & DARK GRAY,RED/MAROON
NIGERIA SPEC,ORANGE & BLACK,BROWN
8 parts on this diagram · 3 diagrams in section
