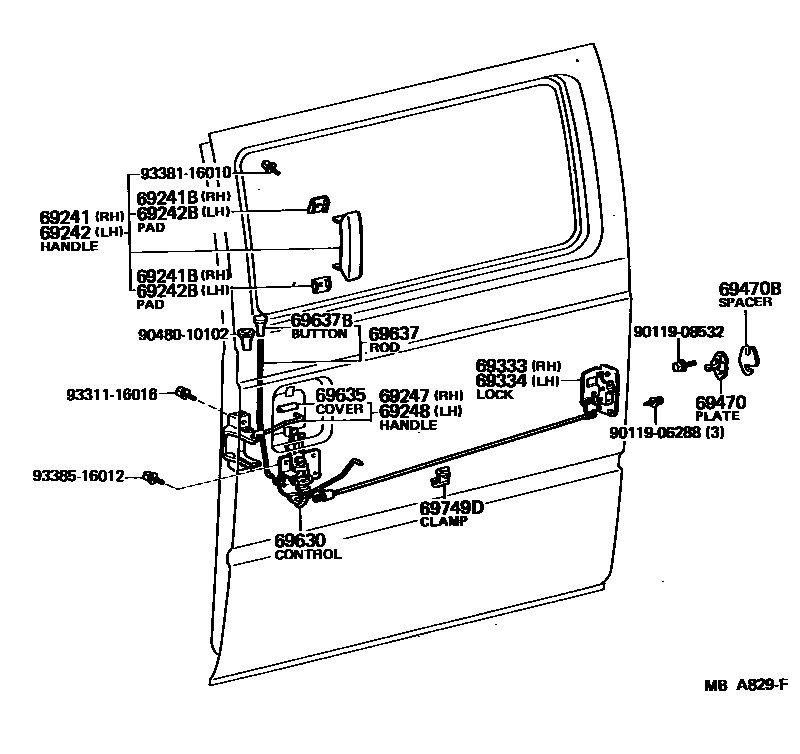

REAR DOOR LOCK & HANDLE

69241HANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-95A90iKM20..V5D197910-198508

69241BPAD, SLIDE DOOR OUTSIDE HANDLE, NO.2 RH

main69246-95A00iKM20..V5D197910-198508

UPR

main69247-95A00iKM20..V5D197910-198508

LWR

69242HANDLE ASSY, SLIDE DOOR OUTSIDE, LH

main69240-95A90iKM20..V5D197910-198508

69242BPAD, SLIDE DOOR OUTSIDE HANDLE, NO.2 LH

main69246-95A00iKM20..V5D197910-198508

UPR

main69247-95A00iKM20..V5D197910-198508

LWR

69247HANDLE, SLIDE DOOR INSIDE, RH

main69730-95701iKM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)197910-198210

main69730-95702iCM20..LHD;KM20..LHD..HRF;KM20..LHD..V4D..SRF;KM20..LHD..SRF..(08S,09S)198210-198508

69248HANDLE, SLIDE DOOR INSIDE, LH

main69740-95701iKM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)197910-198210

main69740-95703-05iCM20,YM2#..RHD;KM20..V4D..SRF..03S;KM20..RHD..(02S,05S,06S,09S)198210-198508

BEIGE,BEIGE

69333LOCK ASSY, SLIDE DOOR, RH

main69330-95701iKM20..V5D197910-198508

69334LOCK ASSY, SLIDE DOOR, LH

main69340-95701iKM20..V5D197910-198508

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95700iKM20..V5D197910-198508

69470BSPACER, SLIDE DOOR LOCK STRIKER

main69473-95700iKM20..V5D197911-198508

RH

main69474-95700iKM20..V5D197911-198508

LH

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95702iKM20..V5D197910-198508

RH

main69640-95700iKM20..V5D197910-198508

LH

69635COVER, SLIDE DOOR INSIDE HANDLE CONTROL ROD

main69635-95701iKM20..V5D197910-198508

69637ROD, SLIDE DOOR INSIDE HANDLE LOCK REMOTE CONTROL

main69703-95700iKM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)197910-198210

RH

main69703-95700-05iCM20..LHD;KM20..LHD..HRF;KM20..LHD..V4D..SRF;KM20..LHD..SRF..(08S,09S)198210-198508

RH,BEIGE,BEIGE

main69704-95700iKM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)197910-198210

LH

main69704-95700-05iCM20,YM2#..RHD;KM20..V4D..SRF..03S;KM20..RHD..(02S,05S,06S,09S)198210-198508

LH,BEIGE,BEIGE

69637BBUTTON, DOOR LOCKING(FOR SLIDE DOOR)

main69747-20020iKM20..BUS,WG;KM20..V4D..4F;KM20..RHD..V4D;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)197910-198210

main69747-20020-05iKM20..V5D198210-198508

BEIGE,BEIGE

69749DCLAMP, SLIDE DOOR LOCK LINK

main69749-95700iKM20..V5D197910-198508

9011906288

main90119-06288

9011908532

main90119-08532

9048010102

main90480-10102

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

21 parts on this diagram · 1 diagram in section
