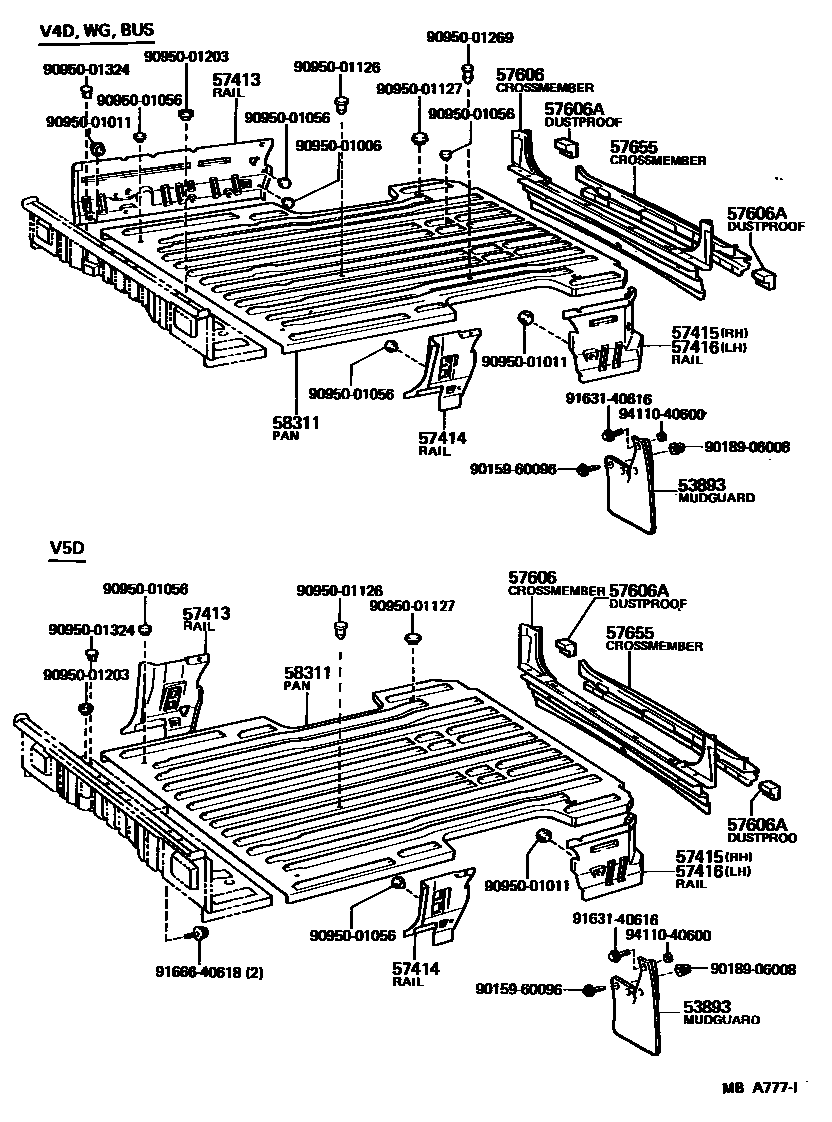

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

53893MUDGUARD, REAR

main76607-95700iCM20,KM20..02S..ARL198101-198508

RH,FORMED TYPE

main76607-95700iYM21;CM20,KM20..GEN198311-198508

RH

main76608-95700iCM20,KM20..02S..ARL198101-198508

LH,FORMED TYPE

main76608-95700iKM20..05S..ARL198311-198508

LH

57413RAIL, FLOOR SIDE, CENTER RH

main57405-95702iKM20..RHD..V4D197910-198101

main57405-95706iKM20..RHD..(02S,05S,09S)..(EUR,GEN);KM20..RHD..V4D..(02S,03S,06S)..(ARL,GEN)198101-198210

main57405-95707iKM20..DLX198108-198508

main57405-95708iKM20..V4D..SRF..03S;KM20..RHD..(02S,06S,09S)198210-198508

main57405-95709iYM21..08S198311-198508

main57405-95711iYM21..08S198311-198508

W/RR HEATER

main57405-95714iYM21..02S198210-198508

main57405-95715iKM20..HRF..06S198210-198508

NEW ZEALAND SPEC

main57405-95715iYM20198402-198508

main57405-95716iKM20..05S..ARL198204-198210

main57405-95717iKM20..VSP..4H..EUR198401-198508

main57405-95718iCM20..RHD..EUR198401-198508

main57413-95705iKM20..V5D197910-198508

sub57413-95719

main57413-95719iCM20,KM20..LHD..V4D..EUR198401-198508

57414RAIL, FLOOR SIDE, CENTER LH

main57406-95700iKM20..07S197910-198101

sub57406-95702

main57406-95701iKM20..05S..ARL198204-198508

main57406-95701iKM20..RHD..HRF198210-198508

NEW ZEALAND SPEC

main57406-95702iKM20..WG198101-198210

main57406-95703iKM20..WG198101-198210

W/RR HEATER

main57406-95704iCM20..LHD198210-198508

main57406-95705iKM20..08S198210-198508

W/RR HEATER

main57406-95706iKM20..08S198210-198508

main57406-95707iCM20..LHD..EUR198401-198508

main57414-95702iKM20..09S;KM20..LHD..V4D..VSP..EUR;KM20..LHD..V4D..(03S,05S,06S)197910-198101

sub57414-95707

main57414-95703iKM20..V5D197910-198508

sub57414-95712

main57414-95706iKM20..V4D..4F;KM20..LHD..09S;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)198101-198210

main57414-95711iYM21..08S198210-198508

main57414-95712iKM20..V5D..EUR198401-198508

main57414-95714iKM20..LHD..V4D..EUR198401-198508

57415RAIL, FLOOR SIDE, REAR RH

main57045-95700iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198508

main57045-95702iCM20,YM21..V4D;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)197910-198508

main57045-95703iKM20..08S198401-198508

main57045-95704iCM20,KM20..V4D..EUR198401-198508

57416RAIL, FLOOR SIDE, REAR LH

main57046-95700iKM20,YM21..WG197910-198508

main57046-95702iCM20,YM21..V4D;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)197910-198508

main57046-95703iKM20..08S198401-198508

main57046-95704iCM20,KM20..V4D..EUR198401-198508

57606CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER

main57607-95702iCM20,KM20,YM2#..HRF,SRF197910-198508

main57607-95704iKM20..08S;CM20,KM20..LHD..V4D..SRF..02S..EUR198104-198508

WEST GERMANY SPEC

57606ADUST PROOF(FOR REAR CROSSMEMBER)

main57614-95700iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198508

57655MEMBER, REAR FLOOR CROSS, NO.5

main57708-95702iCM20,KM20,YM2#..HRF,SRF197910-198508

58311PAN, REAR FLOOR

main58311-95700iKM20..08S198210-198508

W/RR HEATER

sub58311-95704

main58311-95706iKM20..RHD..V4D197910-198109

sub58311-95730

main58311-95707iKM20..RHD..V5D197910-198109

main58311-95708iKM20..V4D..4F;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)197910-198210

main58311-95711iKM20..LHD..V5D197910-198210

main58311-95713iKM20..07S197910-198101

main58311-95717iKM20..WG..STD198101-198210

main58311-95718iKM20..WG..STD198101-198210

W/RR HEATER

main58311-95724iKM20..09S198012-198101

main58311-95726iKM20..RHD..09S198101-198210

main58311-95727iKM20..LHD..09S198101-198210

main58311-95728iKM20..DLX198108-198210

main58311-95729iKM20..DLX198108-198210

W/RR HEATER

main58311-95730iKM20..02S..ARL;KM20..RHD..V4D..(EUR,GEN)198109-198210

main58311-95731iKM20..RHD..V5D198109-198210

main58311-95735iKM20..RHD..06S198210-198508

main58311-95736iCM20..06S198210-198508

main58311-95744iKM20..LHD..V4D198210-198508

main58311-95746iKM20..08S198210-198508

main58311-95747iKM20..RHD..V4D..VSP198210-198508

W/O RR SEAT

main58311-95747iYM21..02S198311-198508

main58311-95748iCM20..RHD198210-198508

W/O RR SEAT

main58311-95751iKM20..05S..ARL198204-198210

main58311-95752iKM20..RHD..09S198210-198508

main58311-95753iKM20..LHD..09S198210-198508

main58311-95756iKM20..RHD..V5D198210-198508

main58311-95757iCM20..LHD198210-198508

main58311-95758iKM20..LHD..V5D198210-198508

main58311-95761iKM20..HRF..06S198210-198508

NEW ZEALAND SPEC

main58311-95761iYM20198402-198508

main58311-95764iYM21..08S198311-198508

9015960096

main90159-60096

9018906008

main90189-06008

9095001006

main90950-01006

9095001011

main90950-01011

9095001056

main90950-01056

9095001126

main90950-01126

9095001127

main90950-01127

9095001203

main90950-01203

9095001269

main90950-01269

9095001324

main90950-01324

9163140616

main91631-40616

9166640618

main91666-40618

9411040600

main94110-40600

22 parts on this diagram · 3 diagrams in section
