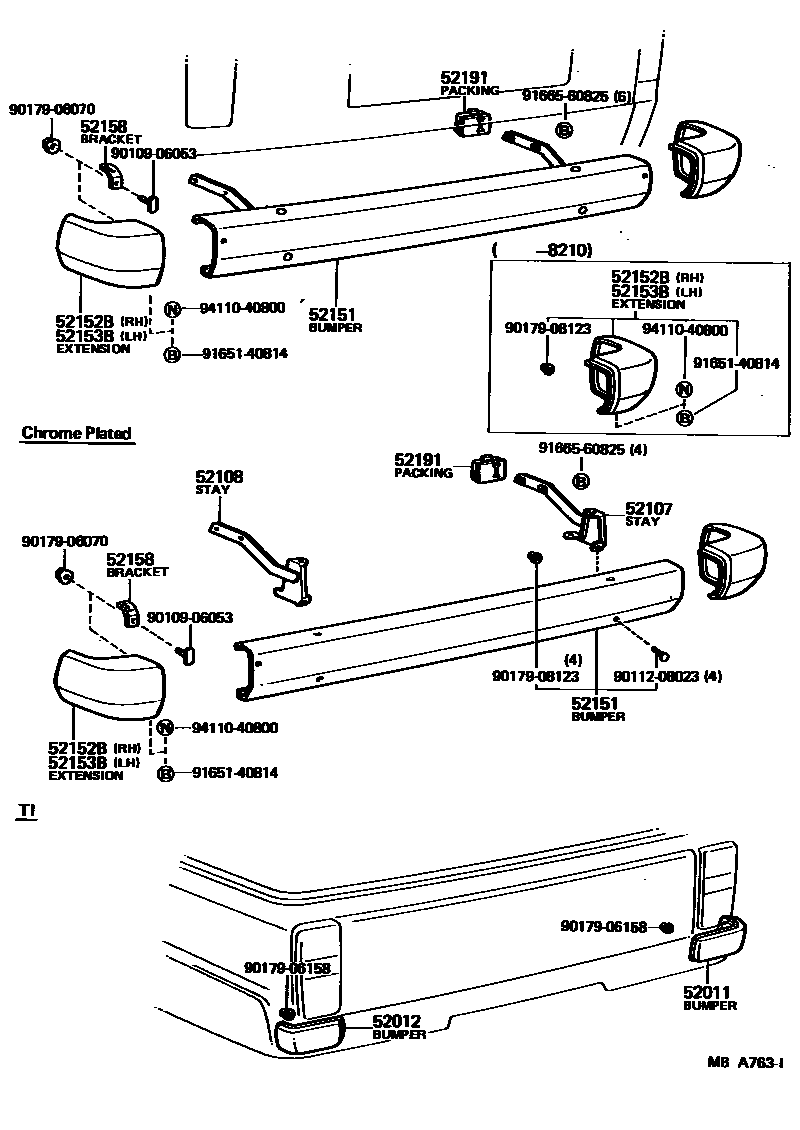

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52011BUMPER SUB-ASSY, REAR RH

main52106-87401iKM20..T1197910-198210

52012BUMPER SUB-ASSY, REAR, LH

main52107-87401iKM20..T1197910-198210

52107STAY SUB-ASSY, REAR BUMPER, RH

main52150-95701iKM20..WG;KM20..02S..ARL197910-198508

W/CHROME PLATED BUMPER

52108STAY SUB-ASSY, REAR BUMPER, LH

main52160-95701iKM20..WG;KM20..02S..ARL197910-198508

W/CHROME PLATED BUMPER

52151BUMPER ASSY, REAR

main52102-95701iKM20..(HRF,SRF)..(ARL,GEN)197910-198101

main52102-95703iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

main52102-95704iCM20,KM20,YM2#198101-198508

main52151-29365iKM20..08S197910-198508

W/CHROME PLATED BUMPER

sub52151-95702

52152BEXTENSION, REAR BUMPER, RH

main52021-29015iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main52121-95701iCM20,KM20,YM2#198210-198508

52153BEXTENSION, REAR BUMPER, LH

main52022-29015iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main52122-95701iCM20,KM20,YM2#198210-198508

52158BRACKET, REAR BUMPER

main52137-95701iCM20,KM20,YM2#198210-198508

52191PACKING, REAR BUMPER STAY

main52191-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

9010906053

main90109-06053

9011208023

main90112-08023

9017906070

main90179-06070

9017906158

main90179-06158

9017908123

main90179-08123

9165140814

main91651-40814

9166560825

main91665-60825

9411040800

main94110-40800

17 parts on this diagram · 2 diagrams in section
