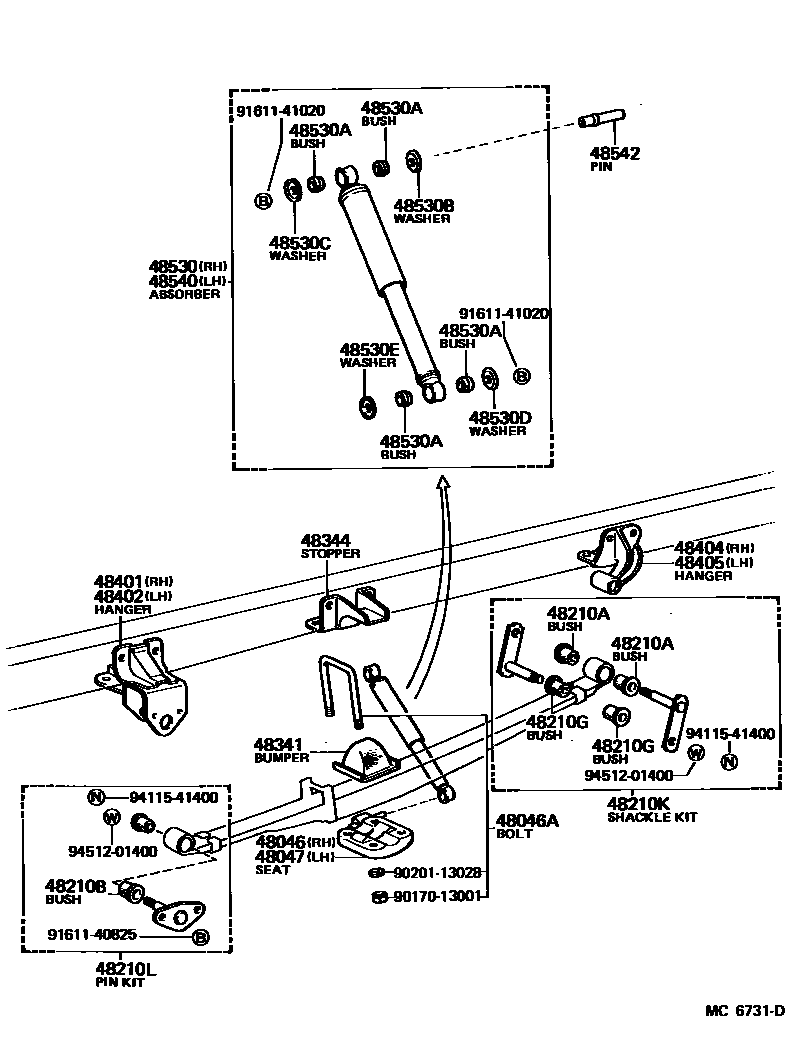

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0008 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26023iYM21;CM20,KM20,YM20..BUS,V198210-198508

main48046-27020iKM20..TR197910-198210

sub48046-27100

main48046-27040iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

sub48046-26023

main48046-27060iKM20..08S198210-198508

48046ABOLT, U(FOR REAR SPRING)

main90118-13091iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198108-198508

sub90117-13082

sub94110-51300

sub94512-01300

main90118-13152iCM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)197910-198301

sub90118-13218

main90118-13184iKM20..TR197910-198210

sub90118-13219

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26023iYM21;CM20,KM20,YM20..BUS,V198210-198508

main48047-27020iKM20..TR197910-198210

sub48047-27080

main48047-27040iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

sub48047-26023

main48047-27060iKM20..08S198210-198508

48210SPRING ASSY, REAR RH

main48210-27080iKM20..TR197910-198210

main48210-27100iKM20..RHD..V..(ARL,GEN)197910-198210

main48210-27140iKM20..RHD..EUR198101-198210

main48210-27141iCM20,KM20..V..EUR198210-198508

main48210-27170iKM20..07S198101-198108

main48210-27171iKM20..08S198108-198210

main48210-27172iKM20..08S198210-198508

main48210-27200iKM20..ARL198210-198508

main48210-27250iCM20,YM2#..RHD..(02S,05S)..(ARL,GEN)198311-198508

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-15001iCM20,KM20,YM2#..HRF,SRF197910-198508

main90385-18003iKM20..TR197910-198210

sub90385-18046

48210BBUSH(FOR REAR SPRING PIN)

main90385-18003iKM20..TR197910-198210

sub90385-18046

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18003iKM20..TR197910-198210

sub90385-18046

48210KSHACKLE KIT, REAR SPRING

main04483-27010iKM20..TR197910-198210

main04483-27021iCM20,KM20,YM2#..HRF,SRF197910-198508

48210LPIN KIT, REAR SPRING

main04484-27030iKM20..TR197910-198210

sub04482-35030

48341BUMPER, REAR SPRING

main48341-27010iCM20,KM20,YM2#..HRF,SRF197910-198508

main48341-27020iKM20..TR197910-198210

48344STOPPER, BUMPER, REAR

main48344-27010iKM20..TR197910-198210

RH

main48354-27010iKM20..TR197910-198210

LH

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-27030iKM20..TR197910-198210

main57701-95701iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main57701-95705iCM20,KM20,YM2#198210-198508

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-27030iKM20..TR197910-198210

main57701-95701iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main57701-95705iCM20,KM20,YM2#198210-198508

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-27030iKM20..TR197910-198210

main57703-95702iCM20,KM20,YM2#..HRF,SRF197910-198508

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48417-27020iKM20..TR197910-198210

main57705-95702iCM20,KM20,YM2#..HRF,SRF197910-198508

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29645iKM20..TR197910-198210

sub48531-29646

main48531-29665iCM20197910-198508

sub48531-29666

main48531-80015iCM20,YM2#..RHD..(02S,05S)..(ARL,GEN)198311-198508

sub48531-80591

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iCM20,KM20,YM2#197910-198508

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iCM20,KM20,YM2#197910-198508

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03007iCM20,KM20,YM2#197910-198508

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004iCM20,KM20,YM2#197910-198508

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03007iCM20,KM20,YM2#197910-198508

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29645iKM20..TR197910-198210

sub48531-29646

main48531-29665iCM20197910-198508

sub48531-29666

main48531-80015iCM20,YM2#..RHD..(02S,05S)..(ARL,GEN)198311-198508

sub48531-80591

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-26020iKM20..TR197910-198210

9017013001

main90170-13001

9020113028

main90201-13028

9161140825

main91611-40825

9161141020

main91611-41020

9411541400

main94115-41400

9451201400

main94512-01400

29 parts on this diagram · 5 diagrams in section
