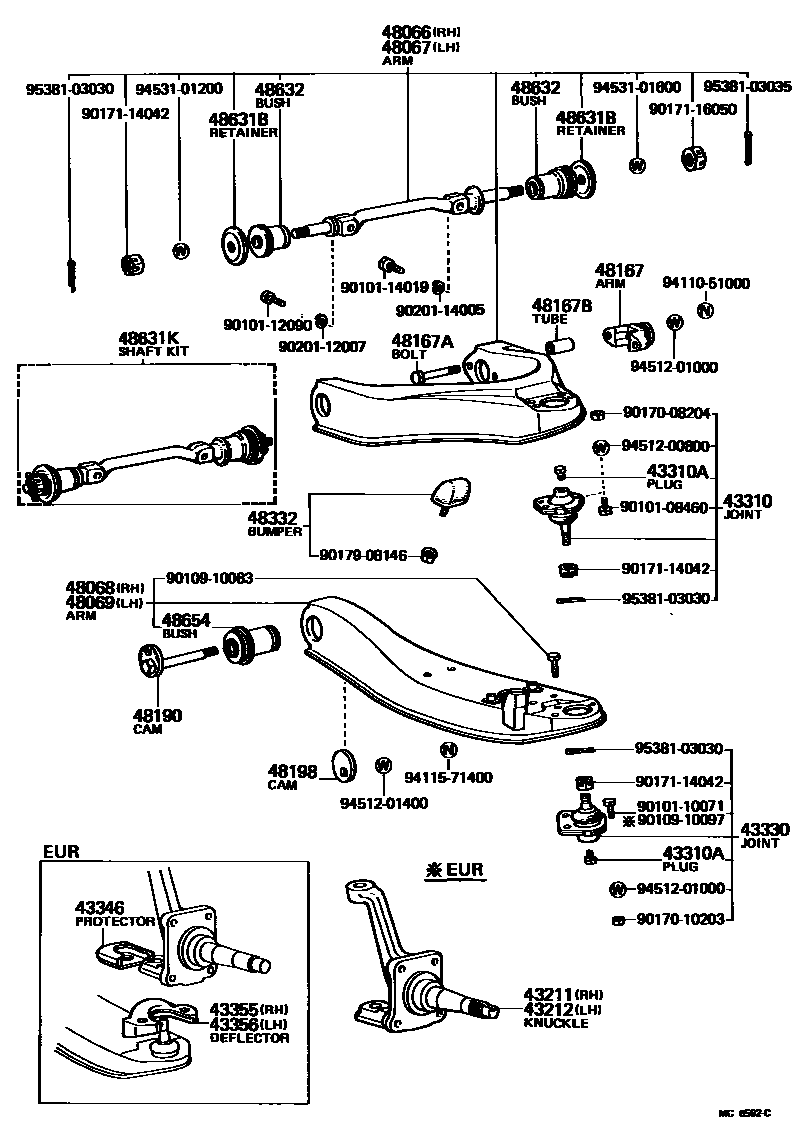

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-27010iKM20197910-198210

main43211-28020iCM20,KM20,YM2#198210-198507

sub43211-28021

main43211-28021iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198507-198508

43212KNUCKLE, STEERING, LH

main43211-27010iKM20197910-198210

main43211-28020iCM20,KM20,YM2#198210-198507

sub43211-28021

main43211-28021iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198507-198508

43310JOINT ASSY, UPPER BALL

main43350-29035iKM20197910-198210

RH

sub43350-29036

main43350-29036iCM20,KM20,YM2#198210-198508

RH

sub43350-29076

main43360-29055iKM20197910-198210

LH

sub43360-29056

main43360-29056iCM20,KM20,YM2#198210-198508

LH

sub43350-29076

43310APLUG (FOR BALL JOINT)

main90345-06014iCM20,KM20,YM2#197910-198508

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29095iKM20197910-198210

RH

main43330-29115iCM20,KM20,YM2#198210-198508

RH

sub43330-29175

main43340-29075iKM20197910-198210

LH

sub43330-29095

main43340-29095iCM20,KM20,YM2#198210-198508

LH

sub43330-29175

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-20021iKM20..EUR197910-198210

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-27010iKM20..EUR197910-198210

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-27010iKM20..EUR197910-198210

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-27020iKM20197910-198210

sub48610-28011

main48601-28010iCM20,KM20,YM2#198210-198508

sub48601-28011

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-27020iKM20197910-198210

sub48630-28011

main48602-28010iCM20,KM20,YM2#198210-198508

sub48602-28011

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-27030iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

main48068-27040iKM20..WG198101-198210

main48068-28020iCM20,KM20,YM2#198210-198508

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-27030iKM20197910-198210

main48069-27040iKM20..WG198101-198210

main48069-28020iCM20,KM20,YM2#198210-198508

48167ARM, TORQUE

main48106-27010iKM20197910-198210

sub48106-28010

main48106-28010iCM20,KM20,YM2#198210-198508

48167ABOLT(FOR TORQUE ARM SETTING)

main91121-71085iCM20,KM20,YM2#197910-198508

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCM20,KM20,YM2#197910-198508

48190CAM ASSY, CAMBER ADJUST

main48190-20010iCM20,KM20,YM2#197910-198508

sub48190-27010

48198CAM, CAMBER ADJUST, NO.2

main48198-20010iCM20,KM20,YM2#197910-198508

sub48198-27010

48332BUMPER, FRONT SPRING, NO.2

main48305-39015iCM20,KM20,YM2#197910-198508

sub48305-30030

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCM20,KM20,YM2#197910-198508

RR SIDE

main90948-02049iCM20,KM20,YM2#197910-198508

FR SIDE

48631KSHAFT KIT, UPPER SUSPENSION ARM

main04485-27010iKM20197910-198210

sub04485-28020

main04485-28020iCM20,KM20,YM2#198210-198508

48632BUSH, UPPER ARM

main48632-27010iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198506-198508

FR SIDE

main48632-30040iCM20,KM20,YM2#197910-198506

FR SIDE

main48635-27010iKM20197910-198210

RR SIDE

main48635-28010iCM20,KM20,YM2#198210-198508

RR SIDE

48654BUSH, LOWER ARM

main48061-20020iKM20197910-198210

main48061-28010iCM20,KM20,YM2#198210-198508

sub48061-28020

9010108460

main90101-08460

9010110071

main90101-10071

9010112090

main90101-12090

9010114019

main90101-14019

9010910083

main90109-10083

9010910097

main90109-10097

9017008204

main90170-08204

9017010203

main90170-10203

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9020112007

main90201-12007

9020114005

main90201-14005

9411051000

main94110-51000

9411571400

main94115-71400

9451200800

main94512-00800

9451201000

main94512-01000

9451201400

main94512-01400

9453101200

main94531-01200

9453101600

main94531-01600

9538103030

main95381-03030

9538103035

main95381-03035

44 parts on this diagram · 2 diagrams in section
