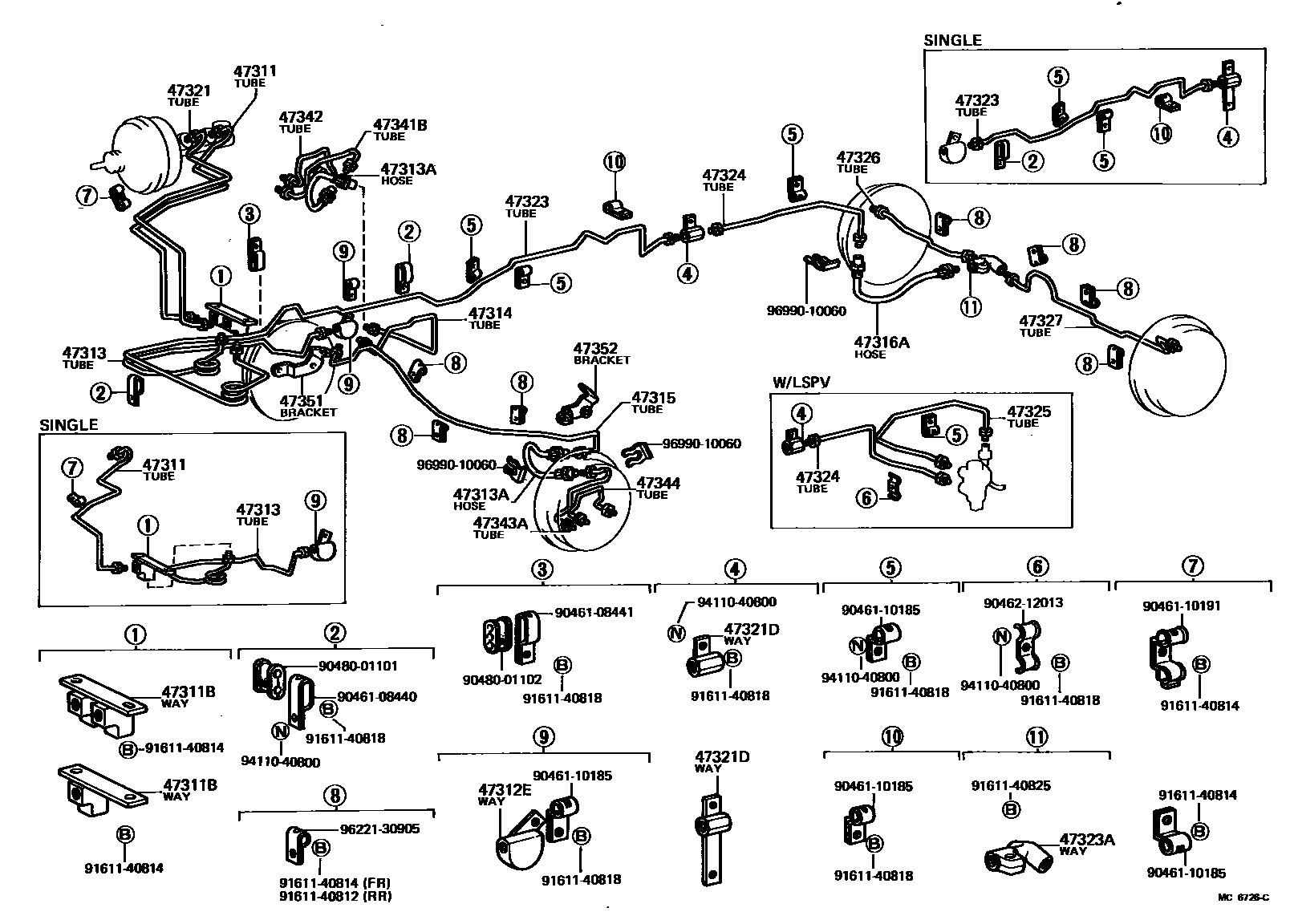

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-27050iKM20..RHD..(03S,06S,09S)197910-198210

TANDEM MASTER CYLINDER

main47311-27051iKM20..RHD..GEN198210-198508

TANDEM MASTER CYLINDER

main47311-27060iKM20..RHD..(ARL,EUR)197910-198101

sub47311-27061

main47311-27061iKM20..RHD..V4D..(ARL,EUR)198101-198210

main47311-27062iKM20..RHD..(ARL,EUR)198210-198508

main47311-27070iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198004

sub47311-27071

main47311-27071iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)198004-198210

main47311-27072iCM20,KM20..LHD..V..EUR198210-198508

main47311-27090iCM20,KM20..LHD..GEN197910-198508

SINGLE MASTER CYLINDER

main47311-27100iKM20..LHD..GEN197910-198210

TANDEM MASTER CYLINDER

main47311-27101iCM20,KM20..LHD..GEN198210-198508

TANDEM MASTER CYLINDER

main47311-27110iKM20..RHD..GEN197910-198210

SINGLE MASTER CYLINDER

main47311-27111iCM20,KM20..RHD..GEN198210-198508

SINGLE MASTER CYLINDER

main47311-27150iKM20..08S198108-198508

main47311-27160iCM20,YM20..RHD..GEN198210-198508

TANDEM MASTER CYLINDER

main47311-27170iCM20,YM21..RHD..(ARL,EUR)198210-198508

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10057iKM20..(HRF,SRF)..GEN197910-198210

TANDEM MASTER CYLINDER

sub90412-10098

main90412-10058iKM20..V..GEN197910-198508

SINGLE MASTER CYLINDER

main90412-10061iKM20..TR..GEN197910-198210

SINGLE MASTER CYLINDER

main90412-10069iKM20..TR197910-198210

TANDEM MASTER CYLINDER

main90412-10098iKM20..GEN198210-198508

TANDEM MASTER CYLINDER

main90412-10099iCM20,YM20..GEN198210-198508

TANDEM MASTER CYLINDER

main90412-10102iCM20..GEN198210-198508

SINGLE MASTER CYLINDER

47312TUBE, FRONT BRAKE, NO.2

main47319-27020iKM20..03S..ARL197910-198210

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10096iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

TANDEM MASTER CYLINDER

main90413-10133iCM20,KM20,YM2#198210-198508

TANDEM MASTER CYLINDER

main90414-10005iKM20..GEN197910-198210

SINGLE MASTER CYLINDER

main90414-10013iCM20,KM20..GEN198210-198508

SINGLE MASTER CYLINDER

47313TUBE, FRONT BRAKE, NO.3

main47312-27040iKM20..(HRF,SRF)..GEN197910-198210

main47312-27041iCM20,KM20,YM20..GEN198210-198508

main47312-27050iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S);KM20..RHD..V4D..(ARL,EUR)197910-198101

sub47312-27051

main47312-27051iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..RHD..V4D..(ARL,EUR);KM20..HRF..4H..(05S,07S)..EUR198101-198210

main47312-27052iCM20,KM20,YM21..ARL,EUR198210-198508

main47312-27060iKM20..TR..GEN197910-198210

main47312-27070iKM20..03S..ARL197910-198210

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-32805iKM20..VSP..02S;KM20..(03S,05S)..(ARL,EUR)197910-198210

FR DISC BRAKE

main96940-32805iCM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S198210-198310

FR DISC BRAKE,L=280

main96940-32855iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198310-198508

FR DISC BRAKE,L=285

main96950-32805iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

FR DRUM BRAKE

main96950-32905iCM20,KM20..GEN198210-198508

FR DRUM BRAKE

47314TUBE, FRONT BRAKE, NO.4

main47313-27030iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main47313-27031iCM20,KM20,YM2#198210-198508

main47313-27040iKM20..TR197910-198210

47315TUBE, FRONT BRAKE, NO.5

main47314-27040iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main47314-27041iCM20,KM20,YM2#198210-198508

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33805iCM20,KM20,YM2#197910-198508

47321TUBE, REAR BRAKE, NO.1

main47321-27020iKM20..RHD..(03S,06S,09S)197910-198210

main47321-27021iKM20..RHD..GEN198210-198508

main47321-27030iKM20..RHD..V4D..(ARL,EUR)197910-198101

sub47321-27031

main47321-27031iKM20..RHD..V4D..(ARL,EUR)198101-198210

main47321-27032iKM20..RHD..(ARL,EUR)198210-198508

main47321-27040iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198210

main47321-27041iCM20,KM20..LHD..V..EUR198210-198508

main47321-27050iKM20..LHD..GEN197910-198004

sub47321-27051

main47321-27051iKM20..LHD..GEN198004-198210

main47321-27052iCM20,KM20..LHD..GEN198210-198508

main47321-27080iKM20..08S198108-198210

main47321-27081iKM20..08S198210-198508

main47321-27090iCM20,YM20..RHD..GEN198210-198508

main47321-27100iCM20,YM21..RHD..(ARL,EUR)198210-198508

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10027iKM20..03S..ARL197910-198210

main90412-10062iCM20,KM20,YM21..(HRF,SRF)..(ARL,EUR)197910-198508

main90412-10063iCM20,KM20,YM20..GEN197910-198508

47323TUBE, REAR BRAKE, NO.3

main47322-27020iKM20..(HRF,SRF)..GEN197910-198210

main47322-27021iCM20,KM20,YM20..GEN198210-198508

TANDEM MASTER CYLINDER

main47322-27040iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..RHD..V4D..(ARL,EUR);KM20..HRF..4H..(05S,07S)..EUR197910-198210

main47322-27041iCM20..ARL,EUR;KM20..VSP..02S;KM20..(03S,05S,08S)..(ARL,EUR)198210-198508

main47322-27050iKM20..TR..GEN197910-198210

TANDEM MASTER CYLINDER

main47322-27060iKM20..03S..ARL197910-198002

main47322-27061iKM20..03S..ARL198002-198210

main47322-27080iKM20..TR..GEN197910-198210

SINGLE MASTER CYLINDER

main47322-27120iCM20..RHD..EUR198210-198311

main47322-27130iYM21198311-198508

main47323-27021iCM20,KM20..GEN198210-198508

SINGLE MASTER CYLINDER

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

main90413-10098iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198508

main90413-10103iKM20..TR197910-198101

47324TUBE, REAR BRAKE, NO.4

main47323-27010iKM20..V..GEN197910-198210

W/O LSPV

main47323-27030iCM20,KM20..GEN197910-198508

W/LSPV

main47323-27040iKM20..ARL,EUR197910-198508

main47323-27050iKM20..TR..GEN197910-198210

W/O LSPV

main47323-27060iKM20..TR..GEN197910-198210

W/LSPV

main47323-27070iKM20..03S..ARL197910-198210

main47323-27120iYM20198402-198508

main47323-27130iCM20,YM21..MTM..(ARL,EUR)198210-198508

main47323-27140iCM20,KM20..V..GEN198210-198508

W/O LSPV

main47323-27180iYM21..3FC198311-198508

main47323-27200iCM20,YM21..RHD..MTM..(ARL,EUR)198402-198508

47325TUBE, REAR BRAKE, NO.5

main47324-27010iKM20..(HRF,SRF)..GEN197910-198210

main47324-27011iCM20,KM20,YM20..GEN198210-198508

main47324-27020iCM20,KM20,YM21..(HRF,SRF)..(ARL,EUR)197910-198508

main47324-27030iKM20..TR..GEN197910-198210

main47328-27010iKM20..03S..ARL197910-198210

47326TUBE, REAR BRAKE, NO.6

main47325-27030iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198508

main47325-27040iKM20..TR197910-198101

47327TUBE, REAR BRAKE, NO.7

main47326-27010iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198508

main47326-27020iKM20..TR197910-198101

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

main47351-28030iCM20,KM20..GEN198210-198508

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-27030iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

main47352-28030iCM20,KM20..GEN198210-198508

9046108440

main90461-08440

9046108441

main90461-08441

9046110185

main90461-10185

9046110191

main90461-10191

9046212013

main90462-12013

9048001101

main90480-01101

9048001102

main90480-01102

9161140812

main91611-40812

9161140814

main91611-40814

9161140818

main91611-40818

9161140825

main91611-40825

9411040800

main94110-40800

9622130905

main96221-30905

9699010060

main96990-10060

37 parts on this diagram · 6 diagrams in section
