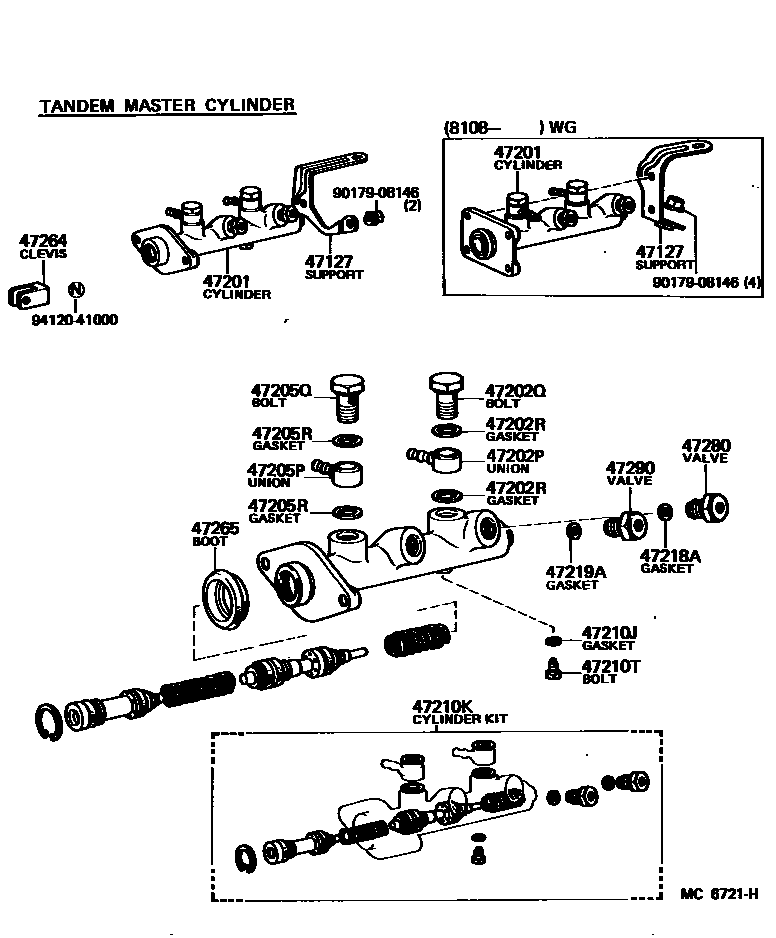

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47127SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95703iKM20..RHD197910-198210

main55175-95703iCM20,KM20..RHD..GEN198210-198508

SINGLE M/C

main55175-95704iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198210

main55175-95704iCM20,KM20..LHD..GEN198210-198508

SINGLE M/C

main55175-95707iKM20..08S198108-198508

main55175-95708iCM20,KM20,YM2#..RHD198210-198508

TANDEM M/C

main55175-95709iCM20,KM20..LHD..(BUS,V)198210-198508

TANDEM M/C

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

TANDEM CYLINDER,DRUM BRAKE

main47201-27030iCM20,KM20..GEN197910-198508

SINGLE CYLINDER

main47201-27040iKM20..RHD..09S197910-198210

TANDEM CYLINDER,DISC BRAKE

main47201-27060iKM20..08S198108-198210

TANDEM CYLINDER,DISC BRAKE

main47201-27080iYM21;CM20,KM20,YM20..BUS,V198210-198508

TANDEM M/C,ID=22.22

main47201-27090iKM20..08S198210-198508

TANDEM M/C,ID=23.81

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-27010iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..RHD..(ARL,EUR);KM20..HRF..(05S,07S)197910-198011

sub47220-27011

main47220-27011iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..RHD..(ARL,EUR);KM20..HRF..(05S,07S)198011-198101

sub47220-27012

main47220-27012iKM20..LHD198210-198508

TANDEM M/C,FR DISC BRAKE

main47220-27012iKM20..RHD..09S198101-198210

main47220-27020iKM20..GEN197910-198011

SINGLE M/C

sub47220-27021

main47220-27021iKM20..GEN198011-198101

SINGLE M/C

sub47220-27022

main47220-27022iKM20..LHD..GEN198101-198508

SINGLE M/C

main47220-27032iCM20..LHD198210-198508

TANDEM M/C,FR DISC BRAKE

main47220-27040iKM20..GEN197910-198011

TANDEM M/C

sub47220-27041

main47220-27041iKM20..GEN198011-198101

TANDEM M/C

sub47220-27042

main47220-27042iKM20..GEN198101-198210

TANDEM M/C

main47220-27042iKM20..LHD..GEN198210-198508

TANDEM M/C,FR DRUM BRAKE

main47220-27050iCM20..RHD198210-198301

TANDEM M/C,FR DISC BRAKE

sub47220-27051

main47220-27051iCM20,YM2#..RHD..MTM198301-198508

TANDEM M/C,FR DISC BRAKE

main47220-27060iKM20..RHD198210-198301

TANDEM M/C,FR DISC BRAKE

sub47220-27061

main47220-27061iYM21..3FC198301-198508

TANDEM M/C,FR DISC BRAKE

main47220-27070iCM20..RHD..GEN198210-198301

TANDEM M/C,FR DRUM BRAKE

sub47220-27071

main47220-27071iCM20..RHD..GEN198301-198508

TANDEM M/C,FR DRUM BRAKE

main47220-27080iKM20..RHD..GEN198210-198301

TANDEM M/C,FR DRUM BRAKE

sub47220-27081

main47220-27081iKM20..RHD..GEN198301-198508

TANDEM M/C,FR DRUM BRAKE

main47220-27090iCM20..LHD..GEN198210-198508

TANDEM M/C,FR DRUM BRAKE

main47220-27100iCM20..RHD..GEN198210-198301

SINGLE M/C

sub47220-27101

main47220-27101iCM20..RHD..GEN198301-198508

SINGLE M/C

main47220-27110iKM20..RHD..GEN198210-198301

SINGLE M/C

sub47220-27111

main47220-27111iKM20..RHD..GEN198301-198508

SINGLE M/C

main47220-27120iCM20..LHD..GEN198210-198508

SINGLE M/C

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10003iCM20,KM20,YM2#197910-198508

TANDEM MASTER CYLINDER

main90405-10073iCM20,KM20..GEN197910-198508

SINGLE MASTER CYLINDER

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-10037iCM20,KM20..GEN197910-198508

SINGLE MASTER CYLINDER

main90401-16002iCM20,KM20,YM2#197910-198508

TANDEM MASTER CYLINDER

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-10074iCM20,KM20..GEN197910-198508

SINGLE MASTER CYLINDER

main90430-16242iCM20,KM20,YM2#197910-198508

TANDEM MASTER CYLINDER

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-10003iCM20,KM20,YM2#197910-198508

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iCM20,KM20,YM2#197910-198508

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242iCM20,KM20,YM2#197910-198508

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCM20,KM20,YM2#197910-198508

47210KCYLINDER KIT, BRAKE MASTER

main04471-27020iCM20,KM20..GEN197910-198508

SINGLE CYLINDER

main04493-27030iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

TANDEM CYLINDER,DRUM BRAKE

main04493-27040iKM20..RHD..09S197910-198210

TANDEM CYLINDER,DISC BRAKE

main04493-27050iKM20..08S198108-198210

TANDEM CYLINDER,DISC BRAKE

main04493-27060iYM21;CM20,KM20,YM20..BUS,V198210-198508

TANDEM M/C,ID=22.22

main04493-27070iKM20..08S198210-198508

TANDEM M/C,ID=23.81

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCM20,KM20,YM2#197910-198508

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iCM20,KM20,YM2#197910-198508

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iCM20,KM20,YM2#197910-198508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCM20,KM20,YM2#197910-198508

47265BOOT, MASTER CYLINDER

main47265-14011iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-12030iCM20,KM20..GEN197910-198508

SINGLE MASTER CYLINDER

sub47280-24010

main47280-26030iCM20,KM20,YM2#197910-198508

TANDEM MASTER CYLINDER

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-26030iCM20,KM20,YM2#197910-198508

9017908146

main90179-08146

9412041000

main94120-41000

20 parts on this diagram · 6 diagrams in section
