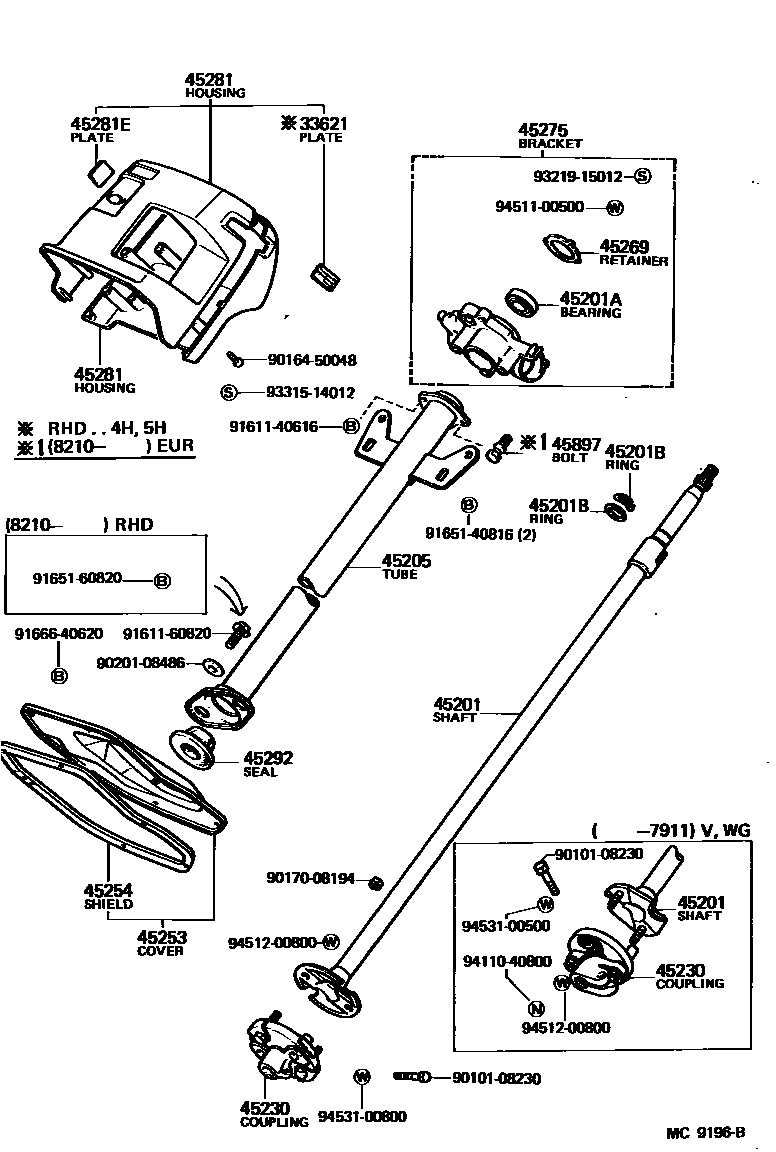

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iCM20..ARL198210-198508

main33621-36040iCM20,KM20..RHD..4H197910-198508

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-27070iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

sub45201-27071

main45201-27080iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-197911

sub45201-27070

sub45230-36010

main45201-27120iCM20,KM20,YM2#198210-198508

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iCM20,KM20,YM2#197910-198508

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM20,KM20,YM2#197910-198508

T=1.20,LWR

main90520-17269iCM20,KM20,YM2#197910-198508

T=1.20,UPR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27030iKM20..RHD197910-198210

main45205-27031iCM20,KM20,YM2#..RHD198210-198508

main45205-27040iCM20,KM20..LHD..4H197910-198508

main45205-27080iKM20..4F198108-198508

45230COUPLING ASSY, FLEXIBLE

main45230-27010iKM20..RHD..(BUS,TR)197910-198104

sub45230-36010

main45230-35020iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198508

main45230-36010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197911-198210

45253COVER, STEERING COLUMN HOLE

main45253-27010iKM20..RHD197910-198210

main45253-27011iCM20,KM20..RHD..(4H,5H)198210-198508

main45253-27020iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198108

main45253-27021iCM20,KM20..LHD..4H198108-198508

main45253-27031iCM20,YM2#..RHD..(3FC,5F)198210-198508

main45253-27070iCM20,KM20..LHD..(4F,5F)198108-198508

45254SHIELD, STEERING COLUMN HOLE

main45254-27010iKM20..RHD197910-198210

main45254-27011iCM20,KM20,YM2#..RHD198210-198508

main45254-27020iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198108

main45254-27021iCM20,KM20..LHD198108-198508

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198508

main45269-36010iKM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)198101-198210

45275BRACKET, STEERING COLUMN, UPPER

main45307-26050iCM20..LHD..GEN;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198211

sub45307-26051

main45307-26051iCM20,KM20..LHD..4H198211-198508

main45307-27040iKM20..4F198108-198209

sub45307-27041

main45307-27041iCM20,KM20..LHD..(4F,5F)198209-198508

main45307-28010iKM20..RHD197910-198209

sub45307-28011

main45307-28011iCM20,KM20,YM2#..RHD198209-198508

sub45307-26061

45281HOUSING, STEERING COLUMN

main45286-27070iKM20..RHD197910-198210

UPR

main45286-27070-05iCM20,KM20..RHD..4H198210-198508

UPR,BEIGE,BEIGE

main45286-27080iKM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

UPR

main45286-27080-05iCM20,KM20..LHD..4H198210-198508

UPR,BEIGE,BEIGE

main45286-27090-05iYM2#198210-198508

UPR,BEIGE,BEIGE

sub45286-27090

main45286-27110iKM20..4F198108-198210

UPR

main45286-27110-05iCM20,KM20..LHD..(4F,5F)198210-198508

UPR,BEIGE,BEIGE

main45286-27120-05iCM20..ARL198210-198508

UPR,BEIGE,BEIGE

sub45286-27120

main45287-27030iKM20..RHD197910-198210

LWR

main45287-27030-05iYM2#198210-198508

LWR,BEIGE,BEIGE

sub45287-27030

main45287-27040iKM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

LWR

main45287-27040-05iCM20,KM20..LHD..4H198210-198508

LWR,BEIGE,BEIGE

main45287-27060iKM20..4F198108-198210

LWR

main45287-27060-05iCM20,KM20..LHD..(4F,5F)198210-198508

LWR,BEIGE,BEIGE

45281EPLATE, SAFETY CAUTION

main45283-22010iCM20,KM20,YM2#..RHD197910-198508

main45283-22020iCM20,KM20..LHD..4H197910-198508

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35021iCM20,KM20,YM2#..RHD198210-198508

main45292-36010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

45897BOLT, STEERING LOCK SET

main45897-12030iCM20,KM20..EUR198210-198508

9010108230

main90101-08230

9016450048

main90164-50048

9017008194

main90170-08194

9020108486

main90201-08486

9161140616

main91611-40616

9161160820

main91611-60820

9165140816

main91651-40816

9165160820

main91651-60820

9166640620

main91666-40620

9321915012

main93219-15012

9331514012

main93315-14012

9411040800

main94110-40800

9451100500

main94511-00500

9451200800

main94512-00800

9453100500

main94531-00500

9453100800

main94531-00800

30 parts on this diagram · 2 diagrams in section
