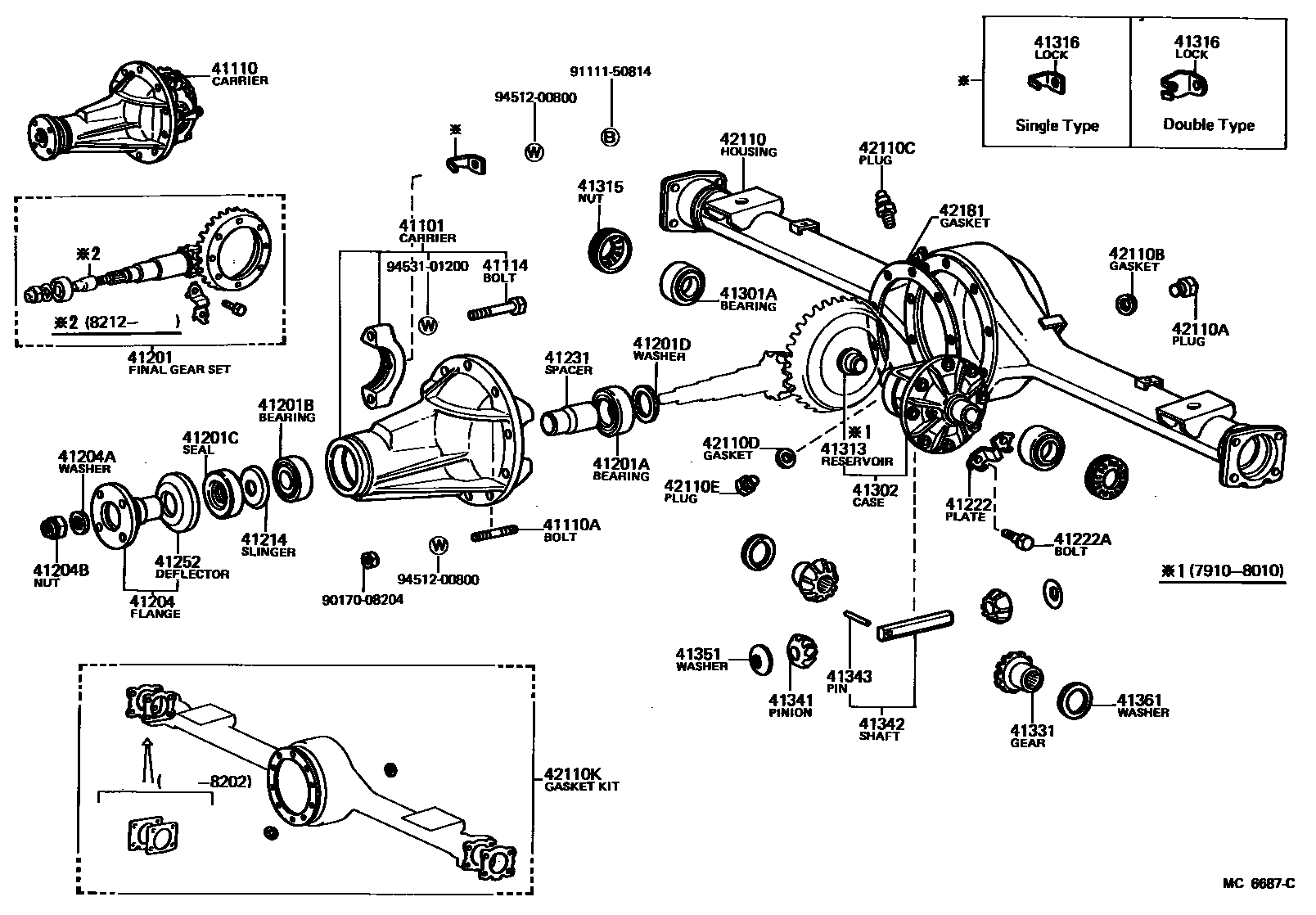

REAR AXLE HOUSING & DIFFERENTIAL

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCM20,KM20,YM2#197910-198508

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-21020iYM2#198311-198508

*FGR=43:10=4.300,*AXC=E282,*FGR=43:10

main41110-22110iCM20198210-198508

*FGR=41:9=4.555,*AXC=E252,*FGR=41:9

sub41110-27120

main41110-27030iKM20197910-198508

*FGR=43:9=4.778,*AXC=E362,*FGR=43:9

sub41110-27100

main41110-27040iKM20..ARL,GEN197910-198508

*FGR=41:8=5.125,*AXC=E152,*FGR=41:8

sub41110-27110

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iCM20,KM20,YM2#197910-198508

S=12 & 15,L=34

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iCM20,KM20,YM2#197910-198508

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iYM2#198311-198508

*FGR=43:10=4.300,*AXC=E282,*FGR=43:10

main41201-29275iKM20..ARL,GEN197910-198008

*AXC=E152,*FGR=41:8

sub41201-29276

main41201-29276iKM20..ARL,GEN198008-198212

*AXC=E152,*FGR=41:8

sub41201-29277

main41201-29277iKM20..ARL,GEN198212-198508

*FGR=41:8=5.125,*AXC=E152,*FGR=41:8

sub41201-29895

main41201-29305iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198008

*AXC=E362,*FGR=43:9

sub41201-29306

main41201-29306iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S198008-198212

*AXC=E362,*FGR=43:9

sub41201-29307

main41201-29307iKM20..V4D..02S;KM20..03S,05S,06S,08S,09S198212-198508

*FGR=43:9=4.778,*AXC=E362,*FGR=43:9

sub41201-29865

main41201-39286iCM20198210-198212

*AXC=E252,*FGR=41:9

sub41201-39287

main41201-39287iCM20198212-198508

*FGR=41:9=4.556,*AXC=E252,*FGR=41:9

sub41201-80020

41201ABEARING (FOR REAR DRIVE PINION REAR)

main97609-32307iCM20,KM20,YM2#197910-198508

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iCM20,KM20,YM2#197910-198508

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iCM20,KM20,YM2#197910-198508

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCM20,KM20,YM2#197910-198508

T=2.36,MARK 05,T=2.35-2.37

main90201-35397iCM20,KM20,YM2#197910-198508

T=2.39,MARK 06,T=2.38-2.40

main90201-35398iCM20,KM20,YM2#197910-198508

T=2.42,MARK 07,T=2.41-2.43

main90201-35399iCM20,KM20,YM2#197910-198508

T=2.43,MARK 08,T=2.44-2.46

main90201-35400iCM20,KM20,YM2#197910-198508

T=2.48,MARK 09,T=2.47-2.49

main90201-35401iCM20,KM20,YM2#197910-198508

T=2.51,MARK 10,T=2.50-2.52

main90201-35402iCM20,KM20,YM2#197910-198508

T=2.54,MARK 11,T=2.53-2.55

main90201-35403iCM20,KM20,YM2#197910-198508

T=2.57,MARK 12,T=2.56-2.58

main90201-35404iCM20,KM20,YM2#197910-198508

T=2.60,MARK 13,T=2.59-2.61

main90201-35434iCM20,KM20,YM2#197910-198508

T=2.24,MARK 01,T=2.23-2.25

sub90201-35515

main90201-35435iCM20,KM20,YM2#197910-198508

T=2.27,MARK 02,T=2.26-2.28

sub90201-35516

main90201-35436iCM20,KM20,YM2#197910-198508

T=2.30,MARK 03,T=2.29-2.31

sub90201-35517

main90201-35437iCM20,KM20,YM2#197910-198508

T=2.33,MARK 04,T=2.32-2.34

sub90201-35518

main90201-35438iCM20,KM20,YM2#197910-198508

T=2.63,MARK 14,T=2.62-2.64

main90201-35439iCM20,KM20,YM2#197910-198508

T=2.66,MARK 15,T=2.65-2.67

main90201-35440iCM20,KM20,YM2#197910-198508

T=2.69,MARK 16,T=2.68-2.70

main90201-35441iCM20,KM20,YM2#197910-198508

T=2.72,MARK 17,T=2.71-2.73

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCM20,KM20,YM2#197910-198508

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCM20,KM20,YM2#197910-198508

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCM20,KM20,YM2#198008-198508

main90179-18060iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198008

sub90179-18001

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCM20,KM20,YM2#197910-198508

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-30030iCM20,KM20,YM2#197910-198508

sub41222-28010

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCM20,KM20,YM2#197910-198508

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22020iCM20,KM20,YM2#197910-198508

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCM20,KM20,YM2#197910-198508

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066iCM20,KM20,YM2#197910-198508

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-30021iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

sub41311-30022

main41311-30022iCM20,KM20,YM2#198010-198508

41313RESERVOIR, DIFFERENTIAL CASE OIL

main41313-30020iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCM20,KM20,YM2#197910-198508

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCM20,KM20,YM2#197910-198508

SINGLE TYPE

main41317-30010iCM20,KM20,YM2#197910-198508

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-30020iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

N=16

sub41331-30021

sub41361-22020

sub41361-22030

sub41361-22040

sub41361-22140

sub41361-22150

sub41361-22160

main41331-30021iCM20,KM20,YM2#198010-198508

N=16

sub41331-22070

41341PINION, REAR DIFFERENTIAL

main41341-30010iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

N=10

sub41341-30011

sub41351-30032

main41341-30011iCM20,KM20,YM2#198010-198508

N=10

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39015iCM20,KM20,YM2#197910-198508

sub41342-30011

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCM20,KM20,YM2#197910-198508

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30031iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

main41351-30032iCM20,KM20,YM2#198010-198508

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCM20,KM20,YM2#198010-198508

T=1.00,MARK 02,T=0.98-1.02

main41361-22030iCM20,KM20,YM2#198010-198508

T=1.10,MARK 03,T=1.08-1.12

main41361-22040iCM20,KM20,YM2#198010-198508

T=1.20,MARK 04,T=1.18-1.22

main41361-22140iCM20,KM20,YM2#198010-198508

T=0.95,MARK 14,T=0.93-0.97

main41361-22150iCM20,KM20,YM2#198010-198508

T=1.05,MARK 15,T=1.03-1.07

main41361-22160iCM20,KM20,YM2#198010-198508

T=1.15,MARK 16,T=1.13-1.17

main41361-30020iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

T=1.5-1.4

main41362-30020iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

T=1.6-1.5

main41363-30010iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

T=1.7-1.6

main41364-30010iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

T=1.8-1.7

42110HOUSING ASSY, REAR AXLE

main42110-27030iKM20..TR197910-198210

main42110-27050iCM20,KM20,YM2#..HRF,SRF197910-198508

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iCM20,KM20,YM2#197910-198508

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iCM20,KM20,YM2#197910-198508

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iCM20,KM20,YM2#197910-198508

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iCM20,KM20,YM2#197910-198508

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iCM20,KM20,YM2#197910-198508

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-20030iCM20,KM20,YM2#198202-198508

main04412-23010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198202

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iCM20,KM20,YM2#197910-198508

9017008204

main90170-08204

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

40 parts on this diagram · 1 diagram in section
