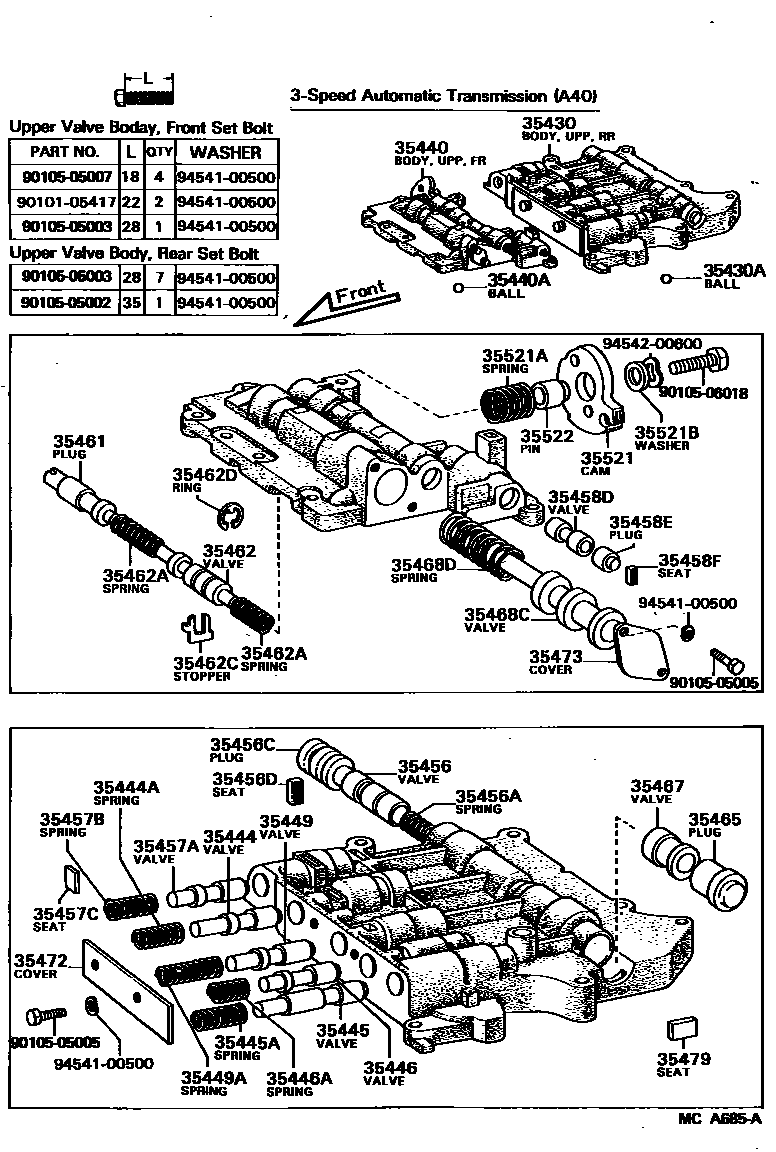

VALVE BODY & OIL STRAINER (ATM)
35430BODY ASSY, REAR UPPER VALVE
35430ABALL (FOR REAR UPPER VALVE BODY)
0D=5.56,OD=5.56,STEEL
35440BODY ASSY, FRONT UPPER VALVE
35440ABALL (FOR FRONT UPPER VALVE BODY)
35444VALVE, INTERMEDIATE MODULATOR
35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
sub90501-11009
35445VALVE, LOW MODULATOR
35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35446VALVE, GOVERNOR MODULATOR
35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)
35449VALVE, SEQUENCE
UPR VALVE
LWR VALVE
35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)
UPR VALVE
LWR VALVE
35456VALVE, 2-3 SHIFT
35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456CPLUG (FOR 2-3 SHIFT VALVE)
35456DSEAT (FOR 2-3 SHIFT VALVE)
35457AVALVE, DETENT REGULATOR
35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
35457CSEAT (FOR DETENT REGULATOR VALVE)
35458DVALVE, CUT BACK
35458EPLUG (FOR CUT BACK VALVE)
35458FSEAT (FOR CUT BACK VALVE)
35461PLUG, DOWN SHIFT
35462VALVE, THROTTLE
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
L=19.24,WD=1.87,CW=8,SECONDARY
L=39.71,WD=1.19,CW=15.5,PRIMARY
35462CSTOPPER, VALVE VIBRATING
35462DRING, E (FOR THROTTLE VALVE)
35465PLUG, INTERMEDIATE SHIFT VALVE
35467VALVE, INTERMEDIATE SHIFT
35468CVALVE, SECONDARY REGULATOR
35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35472COVER, VALVE BODY, NO.2
35473COVER, TRANSMISSION VALVE BODY
35479SEAT, INTERMEDIATE SHIFT VALVE
35521CAM, THROTTLE VALVE
35521ASPRING (FOR THROTTLE VALVE CAM RETURN)
35521BWASHER (FOR THROTTLE VALVE CAM SET)
35522PIN, THROTTLE VALVE CAM
9010105417
main90101-05417
9010505002
main90105-05002
9010505003
main90105-05003
9010505005
main90105-05005
9010505007
main90105-05007
9010506018
main90105-06018
9454100500
main94541-00500
9454200600
main94542-00600
46 parts on this diagram · 3 diagrams in section
