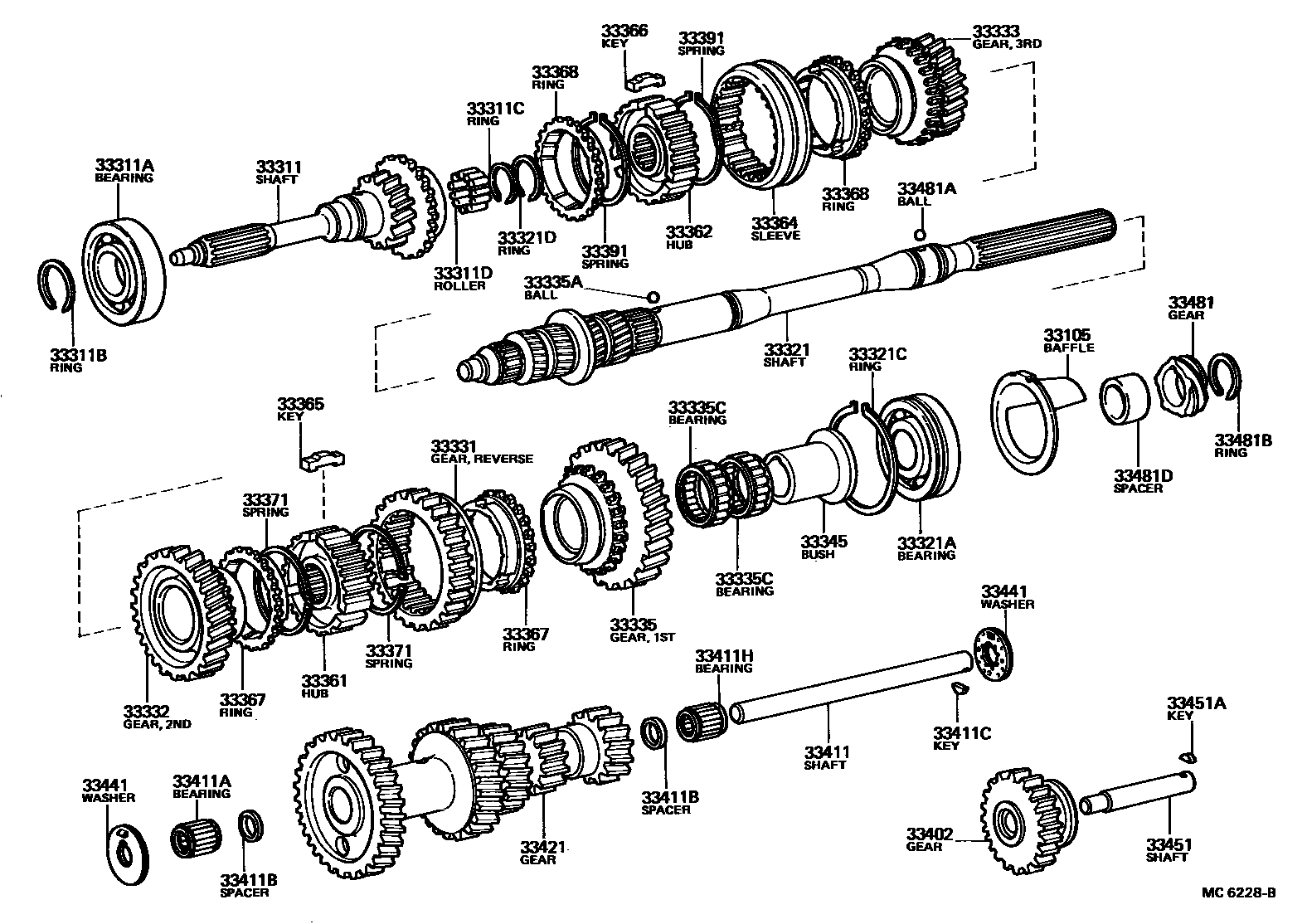

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311SHAFT, INPUT
SWITZERLAND SPEC
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.30,MARK 5,T=2.3
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.05,MARK 1,T=2.05-2.10
T=2.10,MARK 2,T=2.10-2.15
T=2.15,MARK 3,T=2.15-2.20
T=2.20,MARK 4,T=2.20-2.25
T=2.25,MARK 5,T=2.25-2.30
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.35,MARK 1,T=1.35-1.45
T=1.45,MARK 2,T=1.45-1.55
T=1.55,MARK 3,T=1.55-1.65
T=1.65,MARK 4,T=1.65-1.75
T=1.75,MARK 5,T=1.75-1.85
T=1.65,ID=71.1,T=1.65
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1,T=1.85
T=1.95-2.00,MARK E-1,T=1.95
T=1.75-1.80,MARK C-1,T=1.75
T=2.05-2.10,MARK F-1,T=2.05
T=1.50-1.55,MARK A,T=1.50-1.55
T=1.60-1.65,MARK B,T=1.60-1.65
T=1.70-1.75,MARK C,T=1.70-1.75
T=1.80-1.85,MARK D,T=1.80-1.85
T=1.90-1.95,MARK E,T=1.90
T=2.00-2.05,MARK F,T=2.0
33331GEAR, REVERSE
N=34
33332GEAR, 2ND
N=28
N=27
N=28,SWITZERLAND SPEC
N=28
N=27
33333GEAR, 3RD
N=22
33335GEAR, 1ST
N=32
33335ABALL, 1ST SHIFT RESTRICT
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33345BUSH, 1ST GEAR
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411COUNTERSHAFT
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
SWITZERLAND SPEC
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=2.25,T=2.20-2.30
T=2.35,T=2.30-2.40
T=2.45,T=2.40-2.50
T=2.55,T=2.50-2.60
T=2.65,T=2.60-2.70
T=2.21,T=2.16-2.26,FR
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5,MARK 5X17-19,N=5
N=4,N=4
main33481-25020iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR¥2,290197910-198508
N=5,MARK 5X17-19,N=5
N=4,MARK 4X16-18,N=4
N=6,MARK 6X21-23,N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=2.20-2.25,MARK 1,T=2.20-2.25
T=1.50-1.55,MARK A,T=1.50-1.55
T=1.60-1.65,MARK B,T=1.60-1.65
T=1.70-1.75,MARK C,T=1.70-1.75
T=1.80-1.85,MARK D,T=1.80-1.85
T=1.90-1.95,MARK E,T=1.90-1.95
T=2.00-2.05,MARK F,T=2.00-2.05
T=2.10-2.15,MARK G,T=2.10-2.15
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
40 parts on this diagram · 2 diagrams in section
