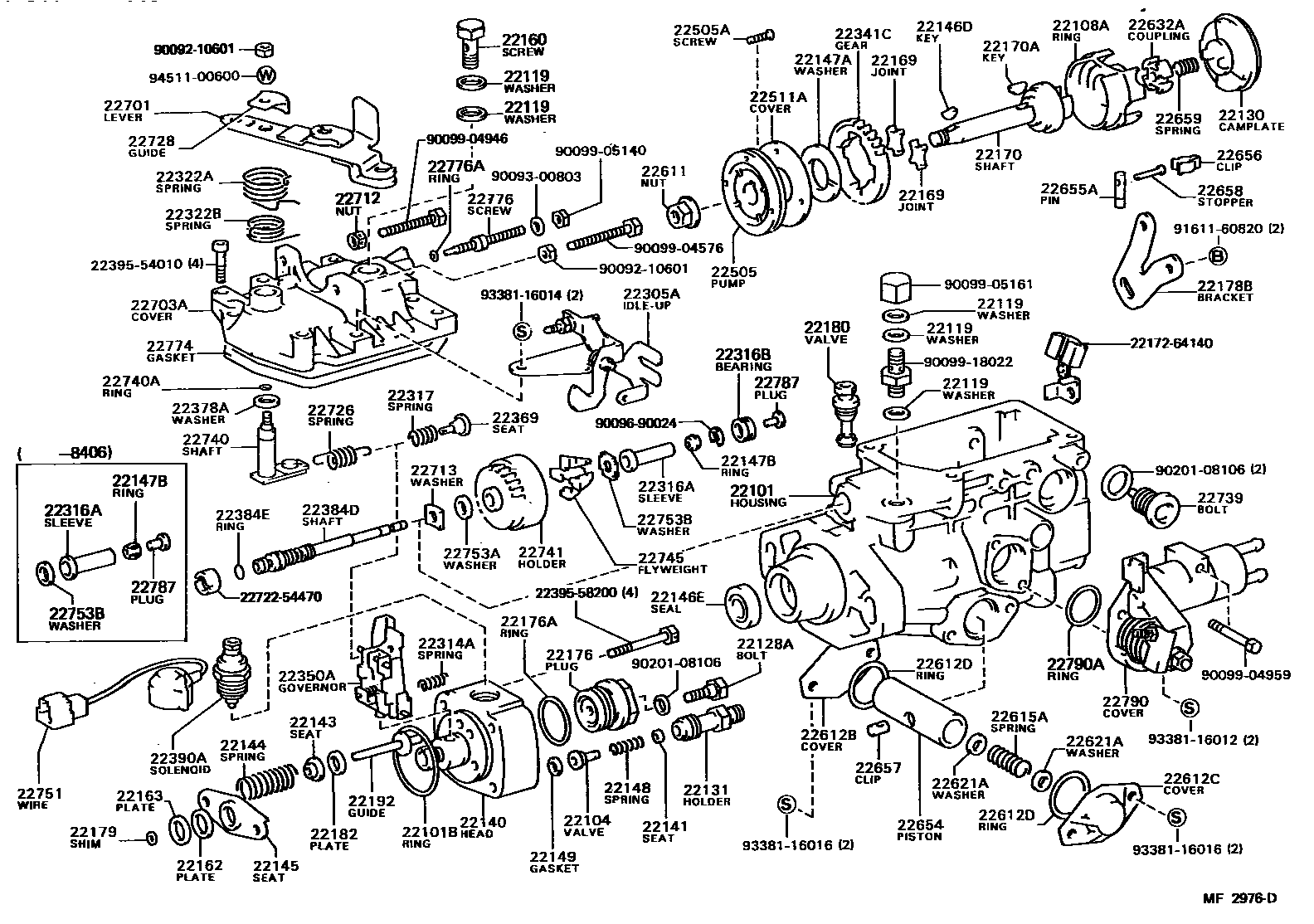

INJECTION PUMP BODY
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
sub90201-12109
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
sub22544-64740
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9,T=1.9
T=2.0,T=2.0
T=2.1,T=2.1
T=2.2,T=2.2
T=2.3,T=2.3
T=2.4,T=2.4
T=2.5,T=2.5
T=2.6,T=2.6
T=2.7,T=2.7
T=2.8,T=2.8
T=2.9,T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5,T=0.5
T=0.8,T=0.8
T=1.0,T=1.0
T=1.2,T=1.2
T=1.5,T=1.5
T=1.8,T=1.8
T=2.0,T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22314ASPRING, LEVER SUPPORT
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
22322ASPRING, RETURN
22322BSPRING, RETURN(INNER)
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
sub22019-6A510
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
sub90099-14105
22615ASPRING, TIMER OUTER
K=3.30,L=37.1
22621AWASHER, TIMER ADJUSTING
T=0.5,T=0.5
T=1.0,T=1.0
T=0.2,T=0.2
T=0.2,T=0.2
T=0.5,T=0.5
T=1.0,T=1.0
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
sub22656-17840
22657CLIP, TIMER
22658STOPPER, TIMER
sub22658-17840
22701LEVER SUB-ASSY, ADJUSTING
MARK"32"
MARK"33"
22703ACOVER SUB-ASSY, GOVERNOR
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05,T=1.05
T=1.25,T=1.25
T=1.45,T=1.45
T=1.65,T=1.65
T=1.85,T=1.85
22726SPRING, SPEED CONTROL
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
sub22193-54770
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
sub22751-55110
22753AWASHER, FLYWEIGHT, NO.1
22774GASKET, GOVERNOR COVER
sub22774-54270
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
22787PLUG, GOVERNOR SLEEVE
L=4.3,L=4.3
L=4.5,L=4.5
L=4.7,L=4.7
L=4.9,L=4.9
L=5.1,L=5.1
L=5.3,L=5.3
L=5.5,L=5.5
L=5.7,L=5.7
L=3.3,L=3.3
L=3.4,L=3.4
L=3.0,L=3.0
L=3.1,L=3.1
L=3.2,L=3.2
L=2.2,L=2.2
L=2.3,L=2.3
L=2.4,L=2.4
L=2.5,L=2.5
L=2.6,L=2.6
L=2.7,L=2.7
L=2.8,L=2.8
L=2.9,L=2.9
22790ARING, O(FOR TIMER COVER)
sub90099-14105
2217264140CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64140
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009210601
main90092-10601
9009300803
main90093-00803
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009904959
main90099-04959
9009905140
main90099-05140
9009905161
main90099-05161
9009918022
main90099-18022
9020108106
main90201-08106
9161160820
main91611-60820
9338116012
main93381-16012
9338116014
main93381-16014
9338116016
main93381-16016
9451100600
main94511-00600
101 parts on this diagram · 1 diagram in section
