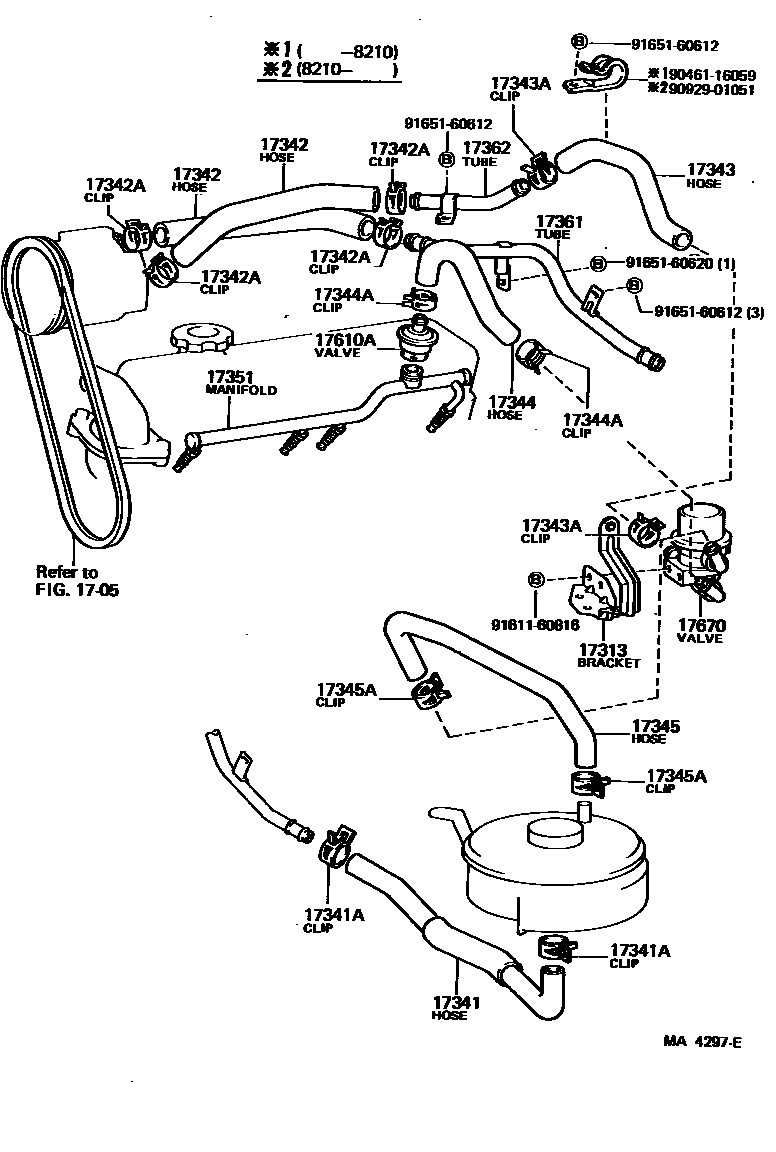

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

1705

17313BRACKET, AIR BY-PASS VALVE

main17313-13010i4K..KM20..ARL197910-198508

main17313-13020i4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-13010i4K..KM20..ARL197910-198508

main17341-13020i4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

main17341-71010i2YC..YM21198311-198508

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26001i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

sub96134-52600

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-26001i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

sub96134-52600

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-26001i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

sub96134-52600

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-23001i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

sub96134-52100

17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)

main17345-13010i4K..KM20..ARL197910-198508

main17345-13020i4K..KM20..V4D..4F198210-198508

SWIZERLAND SPEC

17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)

main90467-23001i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

sub96134-52100

17351MANIFOLD, AIR INJECTION

main17351-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

main17351-71020i2YC..YM21198311-198508

17361TUBE, AIR

main17361-13030i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17362TUBE, AIR, NO.2

main17362-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10045i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17670VALVE ASSY, AIR BY-PASS

main17670-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

9046116059

main90461-16059

9092901051

main90929-01051

9161160816

main91611-60816

9165160612

main91651-60612

9165160620

main91651-60620

22 parts on this diagram · 2 diagrams in section
