CRANKSHAFT & PISTON

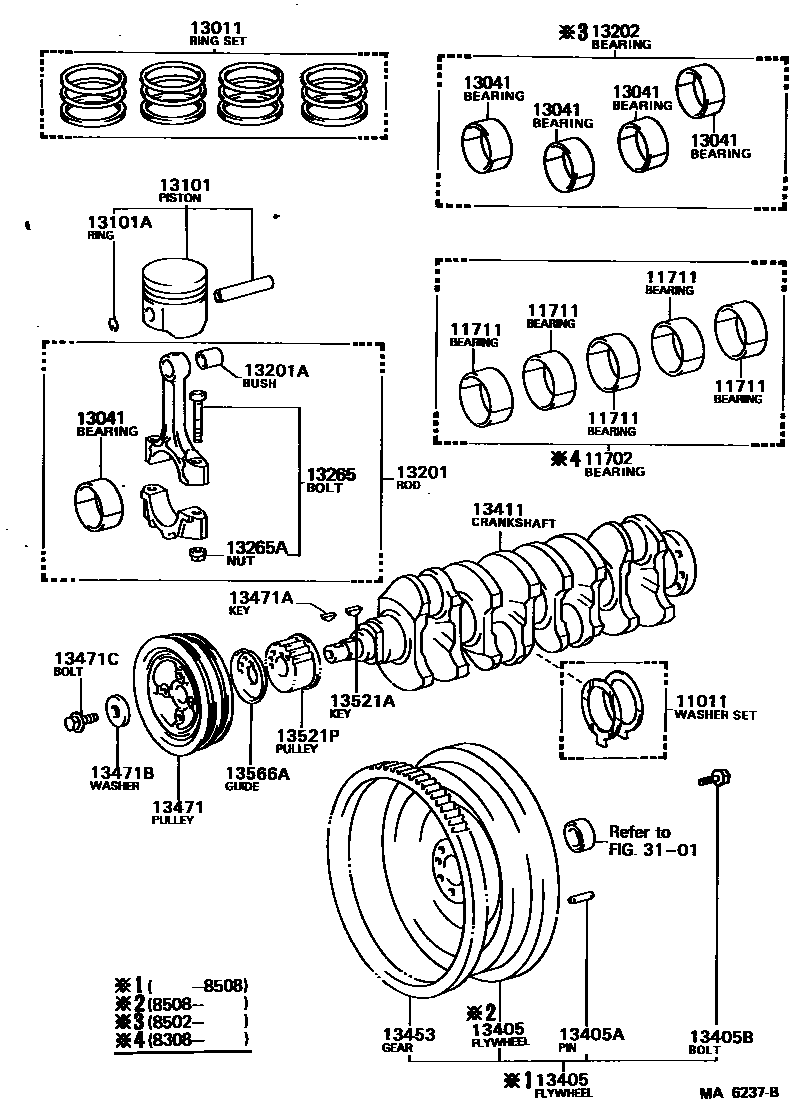

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-22011i197910-198508
STD,STD
main11011-25010i198311-198508
STD
main11011-64010i198210-198508
STD,STD
main11012-22011i197910-198508
O/S 0.125,O/S 0.125
main11012-64010i198210-198508
O/S 0.125,O/S 0.125
main11013-22011i197910-198508
O/S 0.250,O/S 0.250
main11013-64010i198210-198508
O/S 0.250,O/S 0.250
11702BEARING SET, CRANKSHAFT
main11702-22020i197910-198208
STD
main11703-22020i197910-198208
U/S 0.05
main11704-13010i198208-198309
U/S 0.25,U/S 0.25
sub11704-13011
main11704-13011i198309-198508
U/S 0.25,U/S 0.25
sub11704-13012
main11704-22020i197910-198208
U/S 0.25,U/S 0.25
main11705-13010i198208-198309
U/S 0.50,U/S 0.50
sub11705-13011
main11705-13011i198309-198508
U/S 0.50,U/S 0.50
sub11705-13012
main11705-22020i197910-198208
U/S 0.50
11711BEARING, CRANKSHAFT
main11701-13010-03i198208-198307
STD,MARK"3",MARK 3
sub11701-13011
main11701-13010-04i198208-198307
STD,MARK"4",MARK 4
sub11701-13011
main11701-13010-05i198208-198307
STD,MARK"5",MARK 5
sub11701-13011
main11701-13010-06i198208-198307
STD,MARK"6",MARK 6
sub11701-13011
main11701-13010-07i198208-198307
STD,MARK"7",MARK 7
sub11701-13011
main11701-13011-03i198307-198508
STD,MARK"3",MARK 3
sub11701-13012
main11701-13011-04i198307-198508
STD,MARK"4",MARK 4
sub11701-13012
main11701-13011-05i198307-198508
STD,MARK"5",MARK 5
sub11701-13012
main11701-13011-06i198307-198508
STD,MARK"6",MARK 6
sub11701-13012
main11701-13011-07i198307-198508
STD,MARK"7",MARK 7
sub11701-13012
main11701-64010-01i198210-198308
MARK"1",MARK 1
sub11701-64030
main11701-64010-02i198210-198308
MARK"2",MARK 2
sub11701-64030
main11701-64010-03i198210-198308
MARK"3",MARK 3
sub11701-64030
main11701-64030-01i198308-198508
MARK"1",MARK 1
sub11701-64040
main11701-64030-02i198308-198508
MARK"2",MARK 2
sub11701-64040
main11701-64030-03i198308-198508
MARK"3",MARK 3
sub11701-64040
main11701-71020-01i198311-198508
MARK"1",MARK 1
main11701-71020-02i198311-198508
MARK"2",MARK 2
main11701-71020-03i198311-198508
MARK"3",MARK 3
13011RING SET, PISTON
main13011-13030i198202-198508
STD,STD
main13011-24011i197910-198005
STD
sub13011-24012
main13011-24012i198005-198207
STD,STD
sub13011-13030
main13011-64020i198210-198508
STD
main13011-71030i198311-198508
STD,STD
sub13011-71031
main13013-13030i198202-198508
O/S 0.50,O/S 0.50
main13013-24011i197910-198005
O/S 0.50
sub13013-24012
main13013-24012i198005-198207
O/S 0.50
sub13013-13030
main13013-64020i198210-198508
O/S 0.50
main13013-71030i198311-198508
O/S 0.50,O/S 0.50
sub13013-71031
main13014-13030i198202-198508
O/S 0.75,O/S 0.75
main13014-24011i197910-198005
O/S 0.75
sub13014-24012
main13014-24012i198005-198207
O/S 0.75
sub13014-13030
main13014-71030i198311-198508
O/S 0.75
sub13014-71031
main13015-13030i198202-198508
O/S 1.00,O/S 1.00
main13015-24011i197910-198005
O/S 1.00
sub13015-24012
main13015-24012i198005-198207
O/S 1.00
sub13015-13030
main13015-71030i198311-198508
O/S 1.00,O/S 1.00
sub13015-71031
13041BEARING, CONNECTING ROD
main13041-13040-03i198307-198508
MARK"3",MARK 3
main13041-13040-04i198307-198508
MARK"4",MARK 4
main13041-13040-05i198307-198508
MARK"5",MARK 5
main13041-13040-06i198307-198508
MARK"6",MARK 6
main13041-13040-07i198307-198508
MARK"7",MARK 7
main13041-64010-01i198210-198308
MARK"1",MARK 1
sub13041-64030
main13041-64010-02i198210-198308
MARK"2",MARK 2
sub13041-64030
main13041-64010-03i198210-198308
MARK"3",MARK 3
sub13041-64030
main13041-64030-01i198308-198502
MARK"1",MARK 1
sub13041-64031
main13041-64030-02i198308-198502
MARK"2",MARK 2
sub13041-64031
main13041-64030-03i198308-198502
MARK"3",MARK 3
sub13041-64031
main13041-64031-01i198502-198508
MARK"1",MARK 1
sub13041-64041
main13041-64031-02i198502-198508
MARK"2",MARK 2
sub13041-64041
main13041-64031-03i198502-198508
MARK"3",MARK 3
sub13041-64041
main13041-71021-06i198311-198508
MARK"6",MARK 6
sub13041-71011
main13041-71021-07i198311-198508
MARK"7",MARK 7
sub13041-71011
main13041-71021-08i198311-198508
MARK"8",MARK 8
sub13041-71011
13101PISTON SUB-ASSY, W/PIN
main13101-24011i197910-198508
STD,STD
main13101-64010i198210-198508
STD
main13101-71010i198402-198508
STD,STD
main13101-72010i198311-198508
STD,STD
main13103-24010i197910-198508
O/S 0.50,O/S 0.50
main13103-64010i198210-198508
O/S 0.50
main13103-71010i198402-198508
O/S 0.50,O/S 0.50
main13103-72010i198311-198508
O/S 0.50,O/S 0.50
main13104-24010i197910-198508
O/S 0.75,O/S 0.75
main13104-71010i198402-198508
O/S 0.75,O/S 0.75
main13104-72010i198311-198508
O/S 0.75,O/S 0.75
main13105-24010i197910-198508
O/S 1.00,O/S 1.00
main13105-71010i198402-198508
O/S 1.00,O/S 1.00
main13105-72010i198311-198508
O/S 1.00,O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-21088i197910-198508
main90521-29003i198210-198508
13201ROD SUB-ASSY, CONNECTING
main13201-13010i197910-198508
main13201-69025i198210-198308
sub13201-69026
main13201-69035i198308-198508
sub13201-69036
main13201-69036i198508-198508
sub13201-69037
main13201-71011i198311-198508
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73070i197910-198508
main90999-73091i198210-198502
sub90999-73101
main90999-73101i198502-198508
13202BEARING SET, CONNECTING ROD
main13202-13010i197910-198307
STD,REP STD #1
sub13041-13040
main13203-13010i197910-198307
U/S 0.05,REP STD #2,U/S 0.05
sub13041-13040
main13204-13010i198307-198307
U/S 0.25,U/S 0.25
sub13204-13040
main13204-13040i198307-198508
U/S 0.25,U/S 0.25
main13205-13010i198307-198307
U/S 0.50,U/S 0.50
sub13205-13040
main13205-13040i198307-198508
U/S 0.50,U/S 0.50
main13206-13010i198307-198307
U/S 0.75,U/S 0.75
sub13206-13040
main13206-13040i198307-198508
U/S 0.75,U/S 0.75
13265BOLT, CONNECTING ROD
main13265-29015i197910-198507
sub13265-70010
sub90170-09001
main13265-29025i198311-198508
main13265-49015i198210-198508
main13265-70010i198507-198508
sub13265-70020
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198005-198508
main90170-09195i197910-198005
main90179-10042i198210-198508
13405FLYWHEEL SUB-ASSY
main13405-29125i197910-198508
N=106
main13405-64012i198508-198508
main13405-69047i198210-198508
sub13405-64011
main13405-79055i198311-198508
sub13405-71011
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198210-198508
L=23,OD=8
main90250-08054i198311-198508
L=23,OD=8,L=23,OD=8
main90250-08120i197910-198508
L=18,OD=8,L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198311-198508
main90105-10045i198210-198508
main90913-01005i197910-198508
13411CRANKSHAFT
main13411-13010i197910-198306
sub13411-13900
main13411-13900i198306-198508
sub13411-13903
main13411-64010i198210-198412
sub13411-64011
main13411-64011i198412-198508
sub13411-64900
main13411-71900i198402-198508
main13411-72010i198311-198508
sub13411-72900
13453GEAR, FLYWHEEL RING
main13453-10010i197910-198508
N=106
main13453-20010i198311-198508
N=115
main13453-64011i198210-198508
13471PULLEY, CRANKSHAFT
main13407-13010i198210-198508
sub13470-13010
main13408-64020i198210-198211
sub13408-64021
main13408-64021i198211-198305
sub13408-64022
main13408-64022i198305-198508
main13408-71010i198311-198508
main13471-13020i197910-198210
main13471-13040i197910-198108
HONG KONG SPEC
main13471-13040i197910-198210
main13471-13050i198210-198508
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05010i197910-198508
main95161-20516i198210-198508
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
main90201-14007i198210-198508
sub90201-14030
main90209-13003i197910-198508
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12050i197910-198011
main90105-12051i198011-198508
main90105-14013i198311-198508
sub90105-14069
main91511-61435i198210-198508
sub90105-14089
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-13020i198108-198508
main13521-22010i197910-198108
N=18
main13521-33010i198311-198508
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05010i197910-198508
main95161-20622i198210-198508
sub95161-30622
13521PPULLEY, CRANKSHAFT TIMING
main13521-64010i198210-198508
sub13521-64011
13566AGUIDE, TIMING BELT
main13566-64010i198210-198508
sub13566-64011
