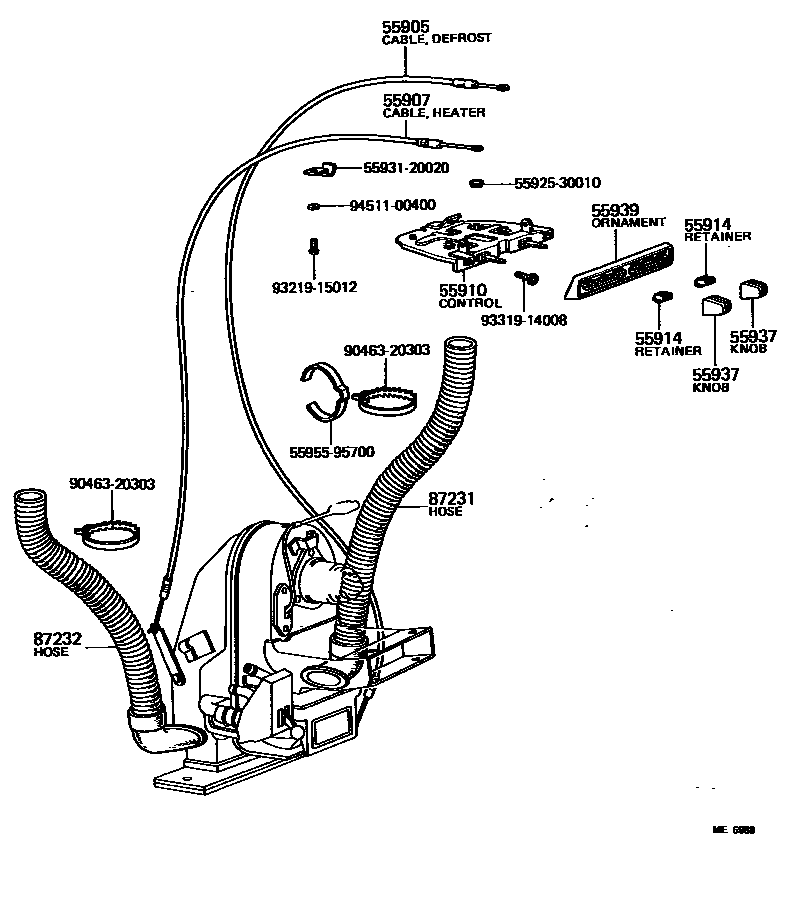

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55905-95700iKM10..WG197105-197309

main55905-95701iKM10..SRF197309-197607

main55906-95702iKM10197610-197801

main55906-95703iKM1#197801-197909

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55906-95700iKM10..WG197105-197309

main55906-95701iKM10..SRF197309-197607

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55902-95700iKM10197607-197610

main55902-95701iKM10197610-197801

main55902-95702iKM1#197801-197909

main55910-95700iKM10..WG197105-197309

55914RETAINER, HEATER CONTROL KNOB

main55914-12020×2iKM10..SRF197105-197607

55937KNOB, HEATER CONTROL LEVER

main55937-95700×2iKM1#197607-197909

55939ORNAMENT, HEATER CONTROL

main55939-95700iKM10..SRF197105-197607

main55939-95701iKM1#197610-197909

87231HOSE, HEATER DEFROSTER, RH

main55957-95700iKM1#197610-197909

main87231-27011iKM10..WG197105-197309

main87231-27012iKM10..WG197309-197410

main87231-27013iKM10197410-197607

87232HOSE, HEATER DEFROSTER, LH

main55958-95700iKM1#197610-197909

main87232-27011iKM10..WG197105-197309

main87232-27012iKM10..WG197309-197410

main87232-27013iKM10197410-197607

5592530010KNOB, HEATER CONTROL LEVER

main55925-30010

5593120020CLAMP, HEATER CONTROL WIRE

main55931-20020

5595595700GUIDE, DEFROSTER NOZZLE

main55955-95700

9046320303

main90463-20303

9321915012

main93219-15012

9331914008

main93319-14008

9451100400

main94511-00400

15 parts on this diagram · 2 diagrams in section
