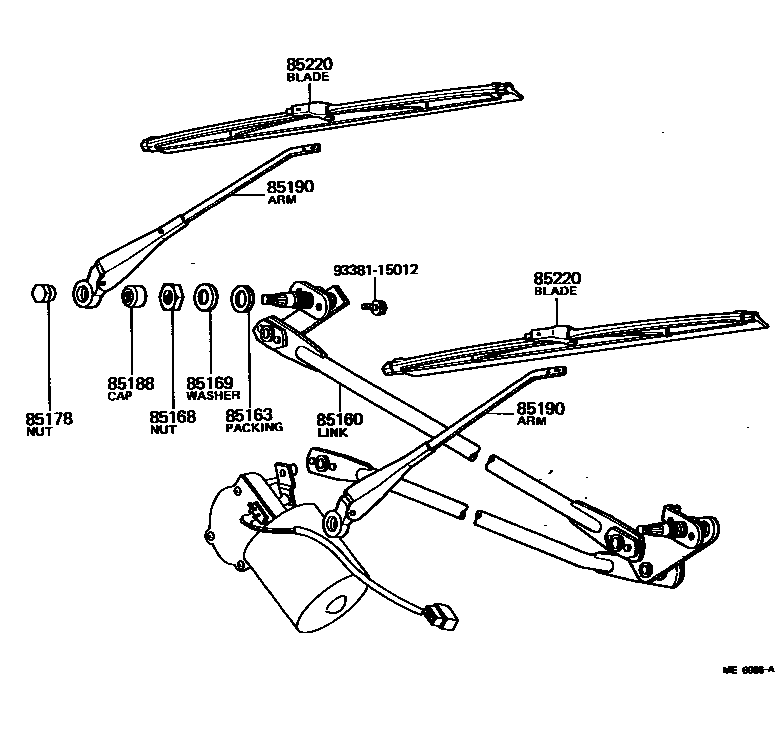

WINDSHIELD WIPER

0001 1 0002 1 0003 1

85160LINK ASSY, WINDSHIELD WIPER

main85160-95700iKM10197105-197309

main85160-95701iKM1#197309-197909

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-25040iKM1#197105-197909

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-55010iKM10197105-197909

main90170-12001iKM10197512-197802

sub85168-55010

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-55010iKM10197105-197512

sub90209-12002

main90209-12002iKM1#197512-197909

85178NUT (FOR FRONT WIPER ARM SETTING)

main85182-60040iKM1#197105-197909

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-55010iKM1#197105-197909

85190ARM ASSY, WINDSHIELD WIPER

main85190-95600iKM1#197111-197909

main85190-95700iKM10197105-197111

sub85190-95600

85220BLADE ASSY, WINDSHIELD WIPER

main85220-26010iKM1#197105-197809

main85220-95700iKM11197809-197901

main85220-95705iKM11197901-197909

sub85220-95700

9338115012

main93381-15012

9 parts on this diagram · 3 diagrams in section
