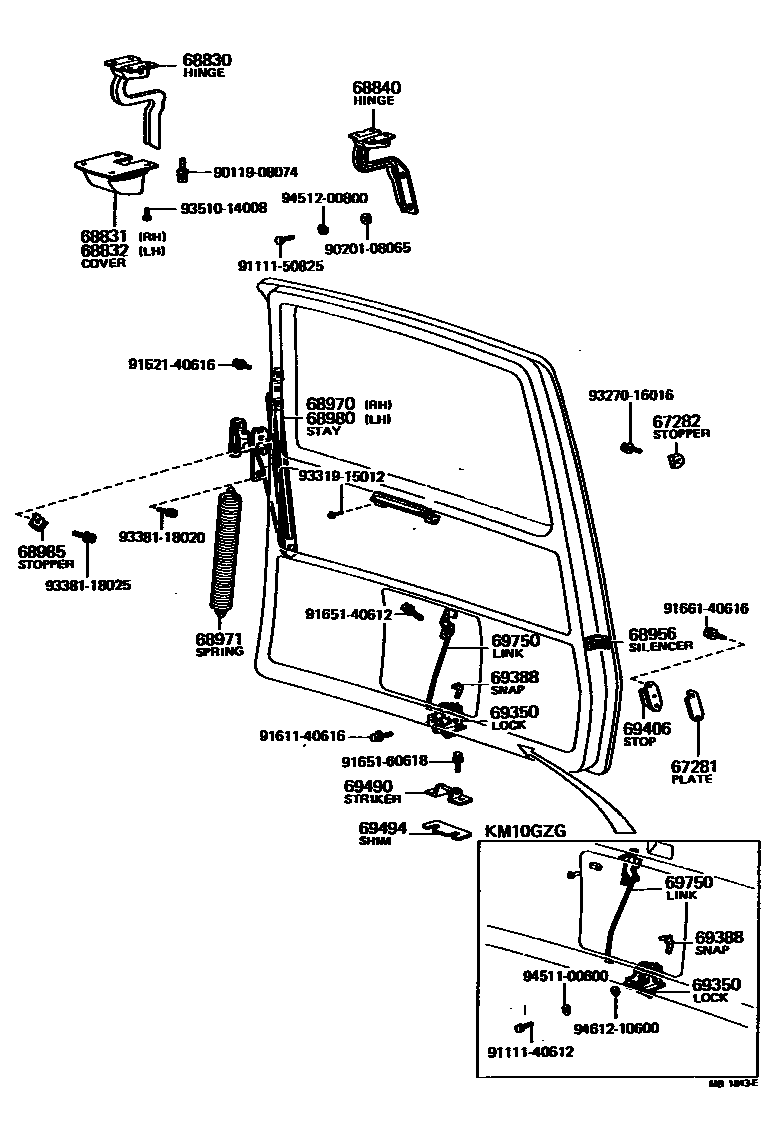

BACK DOOR LOCK & HINGE

67281PLATE, BACK DOOR STOPPER

main69467-95700×2iKM1#..HRF,SRF197105-197909

67282STOPPER, BACK DOOR, NO.1

main69452-95700×2iKM1#..HRF,SRF197105-197909

68830HINGE ASSY, BACK DOOR, RH

main68810-95700iKM1#..HRF,SRF197105-197909

68831COVER, BACK DOOR HINGE UPPER, RH

main68841-95700iKM10..WG197105-197408

68832COVER, BACK DOOR HINGE UPPER, LH

main68841-95700iKM10..WG197105-197408

68840HINGE ASSY, BACK DOOR, LH

main68820-95700iKM1#..HRF,SRF197105-197909

68956SILENCER, BACK DOOR STAY

main68956-95660×2iKM1#..HRF,SRF197105-197909

68970STAY ASSY, BACK DOOR, RH

main68950-95700iKM1#..HRF,SRF197105-197909

68971SPRING, BACK DOOR UPPER BALANCER

main90506-60345×2iKM1#..HRF,SRF197105-197909

68980STAY ASSY, BACK DOOR

main68960-95700iKM1#..HRF,SRF197105-197909

68985STOPPER, BACK DOOR UPPER STAY

main68966-95700×2iKM1#..HRF,SRF197105-197909

69350LOCK ASSY, BACK DOOR

main69350-95700iKM1#..HRF,SRF197105-197909

69388SNAP, ROD(FOR DOOR LOCK)

main69768-13010iKM1#..HRF,SRF197105-197909

69406STOP SUB-ASSY, BACK DOOR DOWN

main69407-95700×2iKM1#..HRF,SRF197105-197909

69490STRIKER ASSY, BACK DOOR LOCK

main69450-13010iKM1#..HRF,SRF197105-197909

69494SHIM, BACK DOOR LOCK STRIKER

main69469-13010iKM1#..V197511-197909

69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL

main75410-95700iKM1#..HRF,SRF197105-197909

9011908074

main90119-08074

9020108065

main90201-08065

9111140612

main91111-40612

9111150825

main91111-50825

9152140616

main91521-40616

9161140616

main91611-40616

9165140612

main91651-40612

9165160618

main91651-60618

9166140616

main91661-40616

9327016016

main93270-16016

9331915012

main93319-15012

9338118020

main93381-18020

9338118025

main93381-18025

9351014008

main93510-14008

9451100600

main94511-00600

9451200800

main94512-00800

9461210600

main94612-10600

34 parts on this diagram · 1 diagram in section
