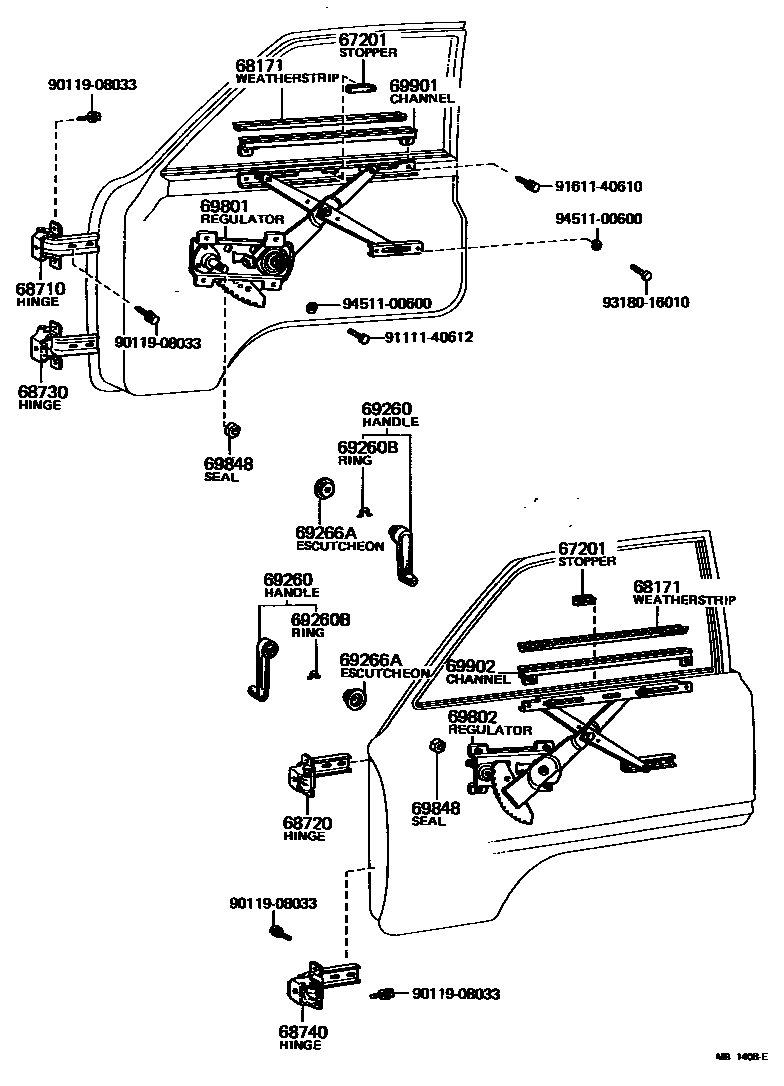

FRONT DOOR WINDOW REGULATOR & HINGE

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main69982-95700iKM1#197105-197909

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69981-95700iKM10197105-197707

sub69981-95600

main69981-95701iKM1#197707-197909

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95700iKM1#197105-197909

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95700iKM1#197105-197909

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-95700iKM1#197105-197903

sub68730-95D00

main68730-95D00iKM11197903-197909

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-95700iKM1#197105-197903

sub68740-95D00

main68740-95D00iKM11197903-197909

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10030iKM10197105-197204

sub69260-10040

main69260-10040iKM1#197511-197909

sub69260-16010

main69260-95402iKM10197204-197511

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iKM10197105-197212

sub90520-01274

main90520-01274iKM1#197212-197909

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iKM1#197105-197909

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95700iKM1#197105-197909

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95700iKM1#197105-197909

69848SEAL, WINDOW REGULATOR HOLE

main69848-95700iKM1#197105-197909

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95700iKM10197105-197707

main69901-95701iKM1#197707-197909

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95700iKM10197105-197707

main69901-95701iKM1#197707-197909

9011908033

main90119-08033

9111140612

main91111-40612

9161140610

main91611-40610

9318016010

main93180-16010

9451100600

main94511-00600

19 parts on this diagram · 1 diagram in section
