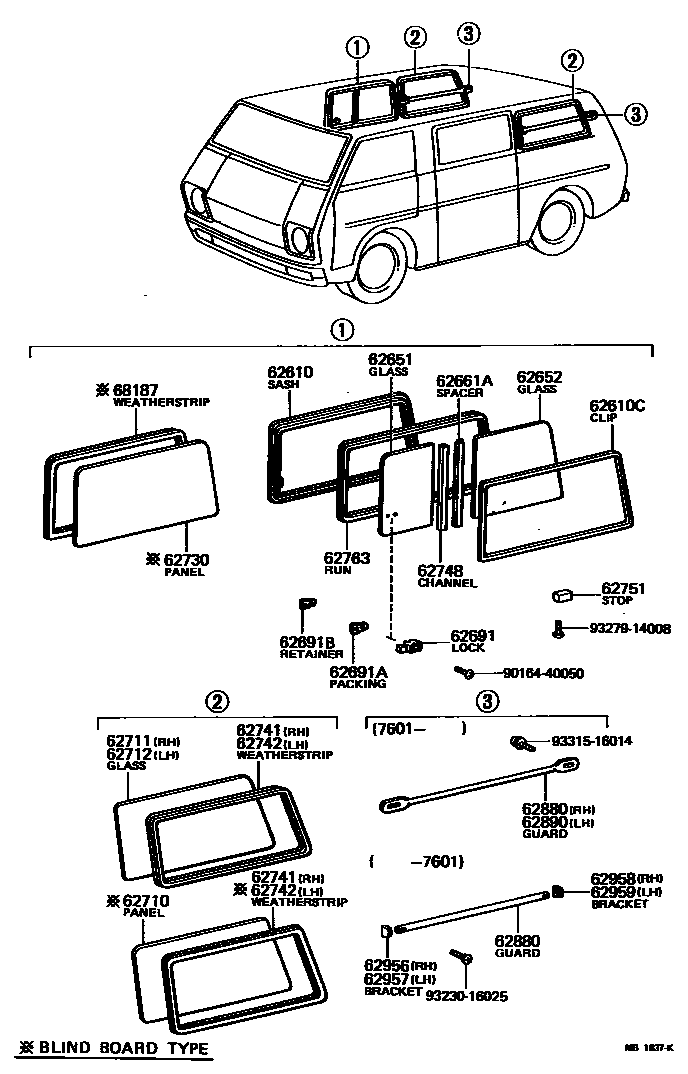

SIDE WINDOW
62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)
62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
62652GLASS, SIDE WINDOW, NO.2, FRONT (FOR SLIDE TYPE)
TN.TP.T=3.0
62661ASPACER, SIDE WINDOW, REAR, NO.1
FOR GLASS T=3.0
FOR GLASS T=4.0
62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)
62691BRETAINER, SIDE WINDOW LOCK, NO.1
62710PANEL ASSY, SIDE WINDOW, NO.1
RH.
LH.
62711GLASS, QUARTER WINDOW, RH
TN.TP.T=4.0
62712GLASS, QUARTER WINDOW, LH
TP.T=4.0
TN.TP.T=4.0
62730PANEL ASSY, SIDE WINDOW, NO.3
62741WEATHERSTRIP, QUARTER WINDOW, RH
FOR GLASS T=3.0
FOR GLASS T=4.0
FOR GLASS T=4.0
FOR BLIND BOARD
62742WEATHERSTRIP, QUARTER WINDOW, LH
FOR GLASS T=3.0
FOR GLASS T=4.0
FOR GLASS T=4.0
FOR BLIND BOARD
62748CHANNEL, SIDE WINDOW GLASS
FOR GLASS T=3.0
FOR GLASS T=4.0
62751STOP, SIDE WINDOW FIX GLASS
62763RUN, SIDE WINDOW, NO.3(FOR SLIDE TYPE)
FOR GLASS T=3.0
FOR GLASS T=3.0
FOR GLASS T=4.0
FOR GLASS T=4.0
62880GUARD ASSY, REAR QUARTER WINDOW, RH
FOR TUBE
FOR COVER
62890GUARD ASSY, REAR QUARTER WINDOW, LH
FOR TUBE
FOR COVER
62956BRACKET, GUARD PIPE QUARTER WINDOW, FRONT RH
62957BRACKET, GUARD PIPE QUARTER WINDOW, FRONT LH
62958BRACKET, GUARD PIPE QUARTER WINDOW, REAR RH
62959BRACKET, GUARD PIPE QUARTER WINDOW, REAR LH
68187WEATHERSTRIP, SIDE WINDOW GLASS
FOR BLIND BOARD
9016440050
main90164-40050
9323016025
main93230-16025
9327914008
main93279-14008
9331516014
main93315-16014
28 parts on this diagram · 2 diagrams in section
