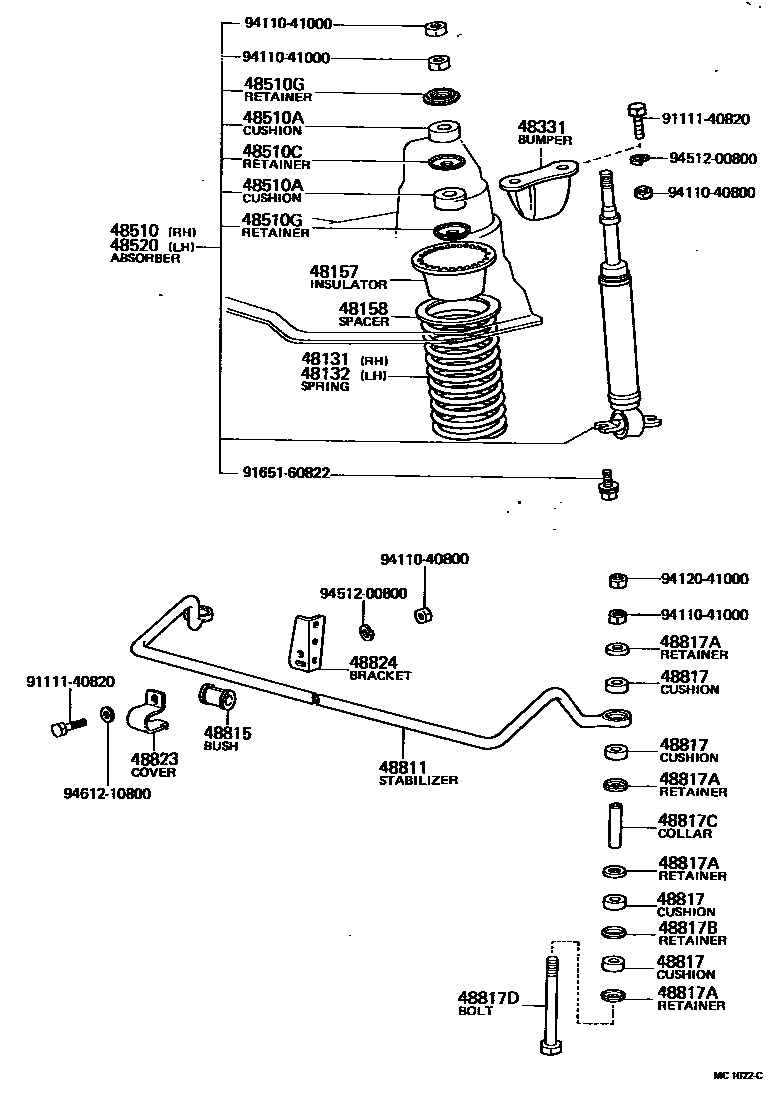

FRONT SPRING & SHOCK ABSORBER
48157INSULATOR, FRONT COIL SPRING, UPPER
48158SPACER, FRONT COIL SPRING
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48500-29076
48510ACUSHION, FRONT SHOCK ABSORBER
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510GRETAINER, FRONT SHOCK ABSORBER
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48500-29076
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48823COVER, STABILIZER LINK(FOR FRONT)
48824BRACKET, STABILIZER, FRONT
RH.
LH.
9111140820
main91111-40820
9165160822
main91651-60822
9411040800
main94110-40800
9411041000
main94110-41000
9412041000
main94120-41000
9451200800
main94512-00800
9461210800
main94612-10800
26 parts on this diagram · 1 diagram in section
