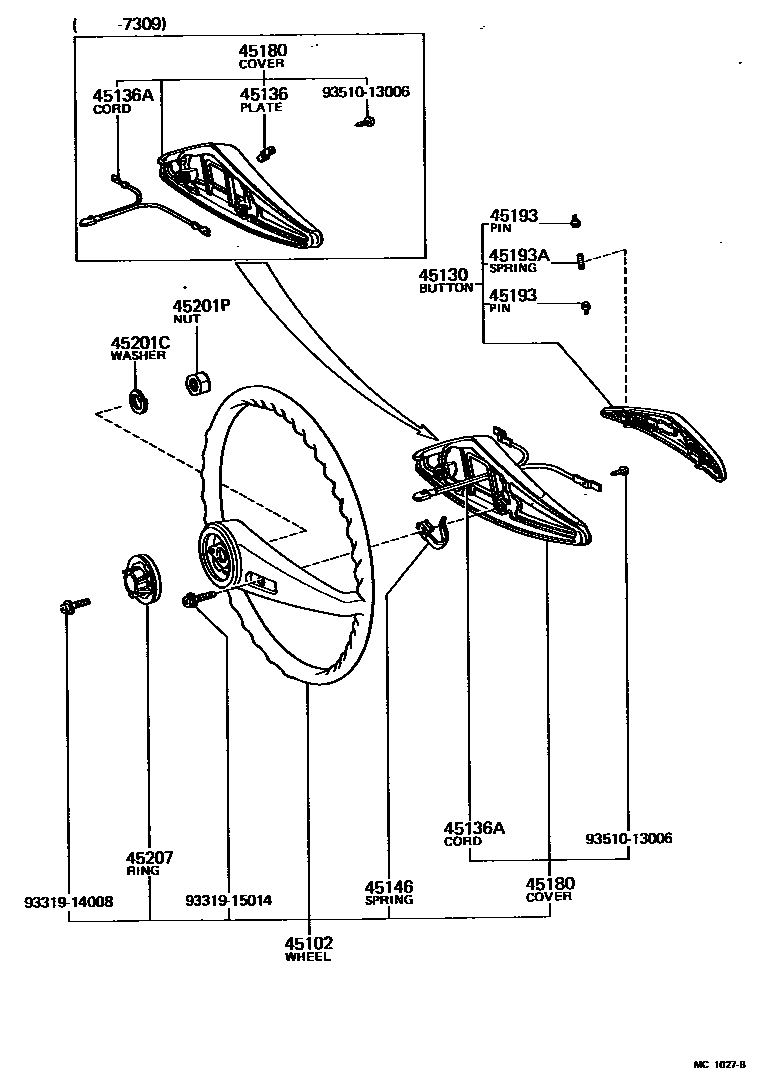

STEERING WHEEL

0001 1 0002 1

45102WHEEL SUB-ASSY, STEERING

main45100-12040iKM10197105-197210

main45100-12041iKM10197210-197610

main45100-12120iKM1#197610-197909

45130BUTTON ASSY, HORN

main45130-12110iKM1#197610-197909

main45130-27010iKM10197105-197210

main45130-27011iKM10197210-197309

main45130-27012iKM10197309-197610

45136PLATE, HORN BUTTON CONTACT

main45136-12030×2iKM10197105-197309

45136ACORD(FOR HORN CONTACT RING)

main90945-02004iKM10197105-197309

main90945-02009iKM10197309-197610

main90945-02026iKM1#197610-197909

45146SPRING, HORN BUTTON CONTACT

main45146-12010×2iKM10197105-197610

main45146-12020×2iKM1#197610-197909

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12010iKM10197105-197210

main45180-12011iKM10197210-197610

45193PIN, HORN BUTTON

main45193-12010×4iKM10197105-197610

45193ASPRING, HORN BUTTON PIN

main90501-07554×2iKM10197105-197309

main90501-07706×2iKM10197309-197610

45201CWASHER, SPRING(FOR STEERING WHEEL SET)

main90204-12029iKM10197105-197610

45201PNUT, STEERING WHEEL SET

main90170-12177iKM10197105-197112

main90179-12086iKM1#197610-197909

main94125-41200iKM10197112-197610

45207RING, HORN CONTACT

main45018-12010iKM10197105-197610

main45176-20030iKM1#197610-197909

9331914008

main93319-14008

9331915014

main93319-15014

9351013006

main93510-13006

14 parts on this diagram · 2 diagrams in section
