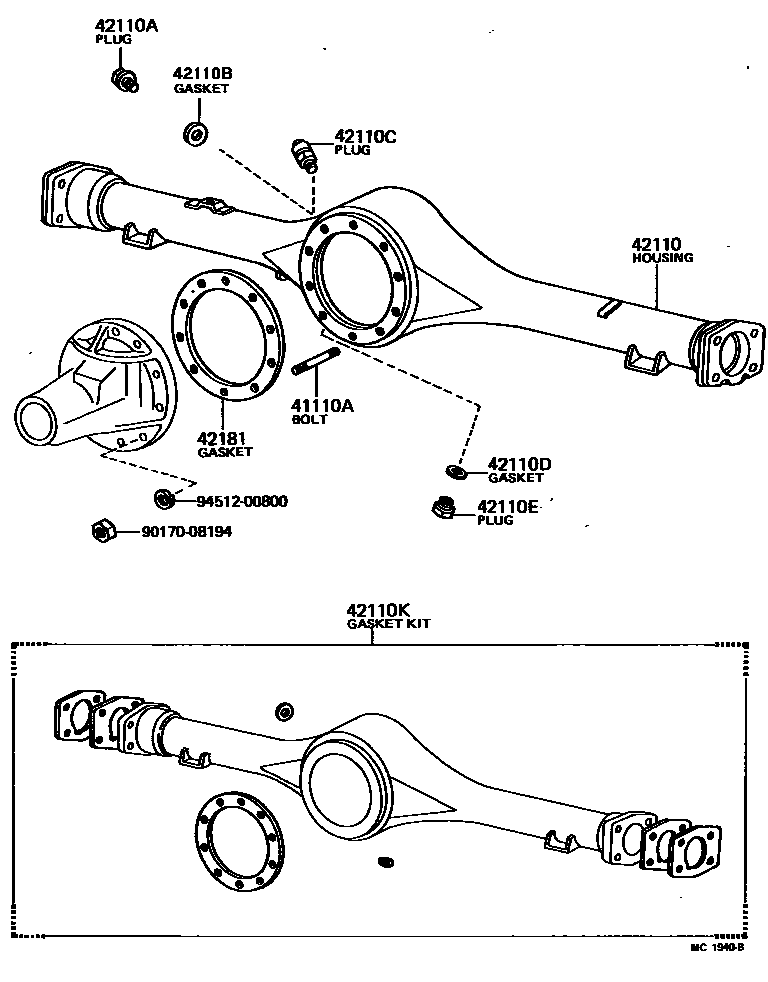

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-27010iKM10..TR197105-197111

R=40:7=5.714

main41110-27020iKM10..V197105-197201

R=37:7=5.286

sub41110-27022

main41110-27023iKM10..TR,V197201-197308

R=37:7=5.286

main41110-27024iKM10..TR,V197308-197511

R=37:7=5.286

sub41110-27040

main41110-27040iKM1#197511-197909

*FGR=41:8=5.125,R=41:8=5.125

sub41110-27110

main41110-31011iKM10..WG197105-197201

R=39:8=4.875

sub41110-31013

main41110-31014iKM10..WG197201-197308

R=39:8=4.875

main41110-31015iKM10..WG197308-197408

R=39:8=4.875

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08025iKM10197105-197303

main90116-08235iKM1#197303-197909

S=12 & 15,L=34

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-27010iKM10197105-197308

sub42110-27011

sub42184-22011

sub94181-11000

main42110-27011iKM10197308-197612

sub42110-27012

sub47319-27011

sub93381-18010

sub96221-30905

main42110-27012iKM1#197612-197909

sub42110-27013

sub90930-03031

main42110-27021iKM10197309-197612

FOR L.S.P.V.

sub42110-27022

sub47319-27011

sub93381-18010

sub96221-30905

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iKM1#197105-197909

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iKM1#197105-197909

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03019iKM1#197105-197909

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iKM1#197105-197909

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iKM1#197105-197909

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-23010iKM1#197105-197909

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iKM1#197105-197909

9017008194

main90170-08194

9451200800

main94512-00800

12 parts on this diagram · 2 diagrams in section
