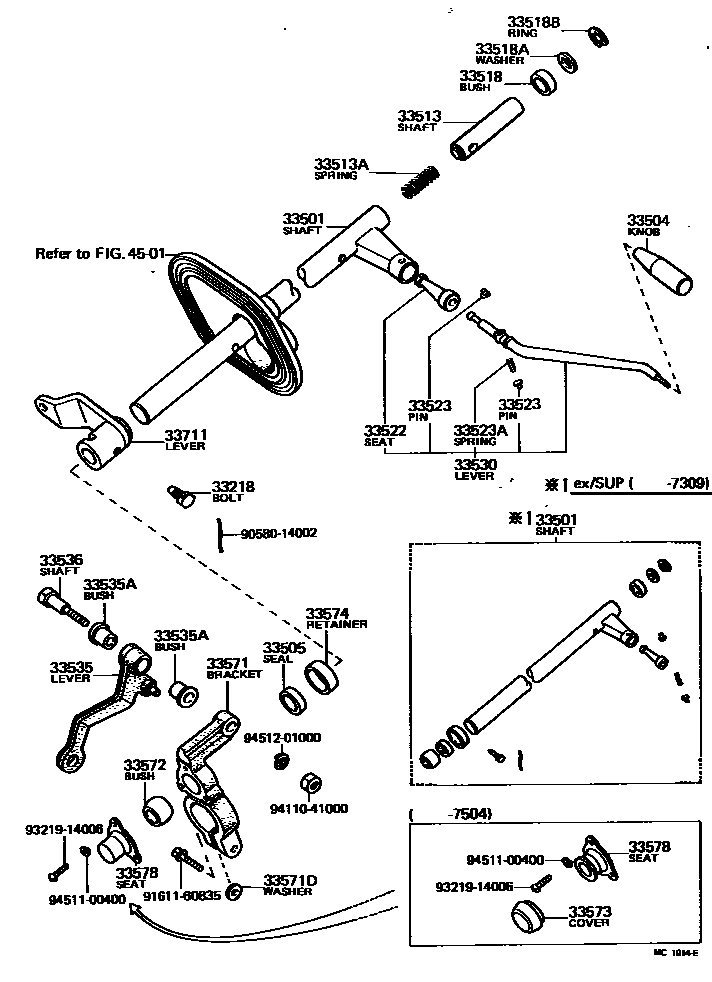

CONTROL SHAFT & CROSSSHAFT
33218BOLT, SHIFT LEVER LOCK
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33571DWASHER, PLATE (FOR CONTROL SHAFT LOWER BRACKET)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33573COVER, CONTROL SHAFT DUST, LOWER
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33578SEAT, CONTROL SHAFT LOWER BUSH, NO.1
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
4501
9058014002
main90580-14002
9161160835
main91611-60835
9321914006
main93219-14006
9411041000
main94110-41000
9451100400
main94511-00400
9451201000
main94512-01000
30 parts on this diagram · 4 diagrams in section
