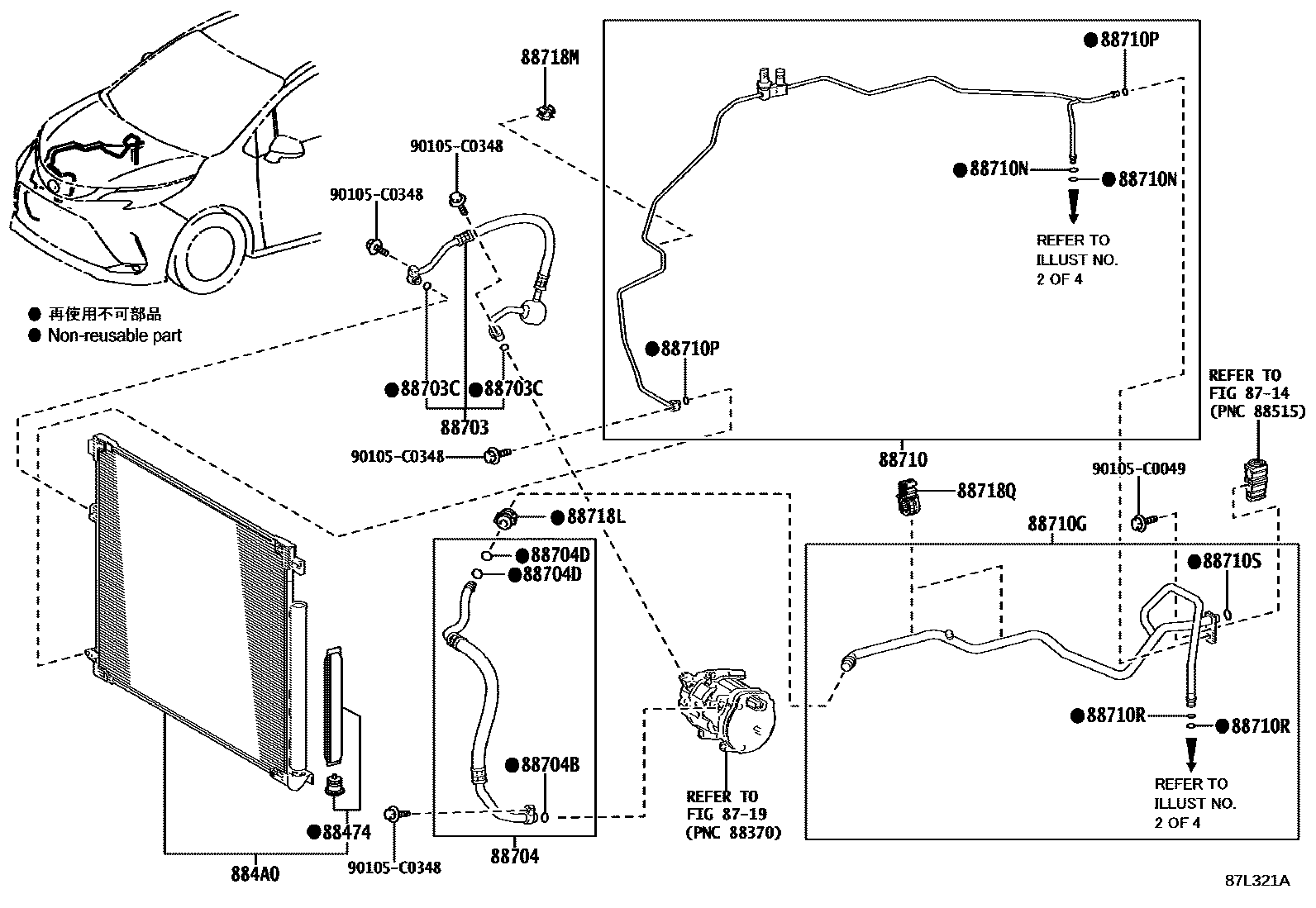

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88704DRING, O, NO.2 (FOR SUCTION HOSE)
ID=14,OD=17.56
88710TUBE ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=7.65,OD=11.21
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88710RRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
ID=14,OD=17.56
88710SRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
ID=13.4,OD=18.2
88718LCLAMP, PIPING
88718MCLAMP, PIPING
(L)
(J)
88718QCLAMP, PIPING
(L)
(J)
90105C0049
main90105-C0049
90105C0348
main90105-C0348
20 parts on this diagram · 4 diagrams in section
