HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1REAR AIR DUCT 0005 1SENSOR

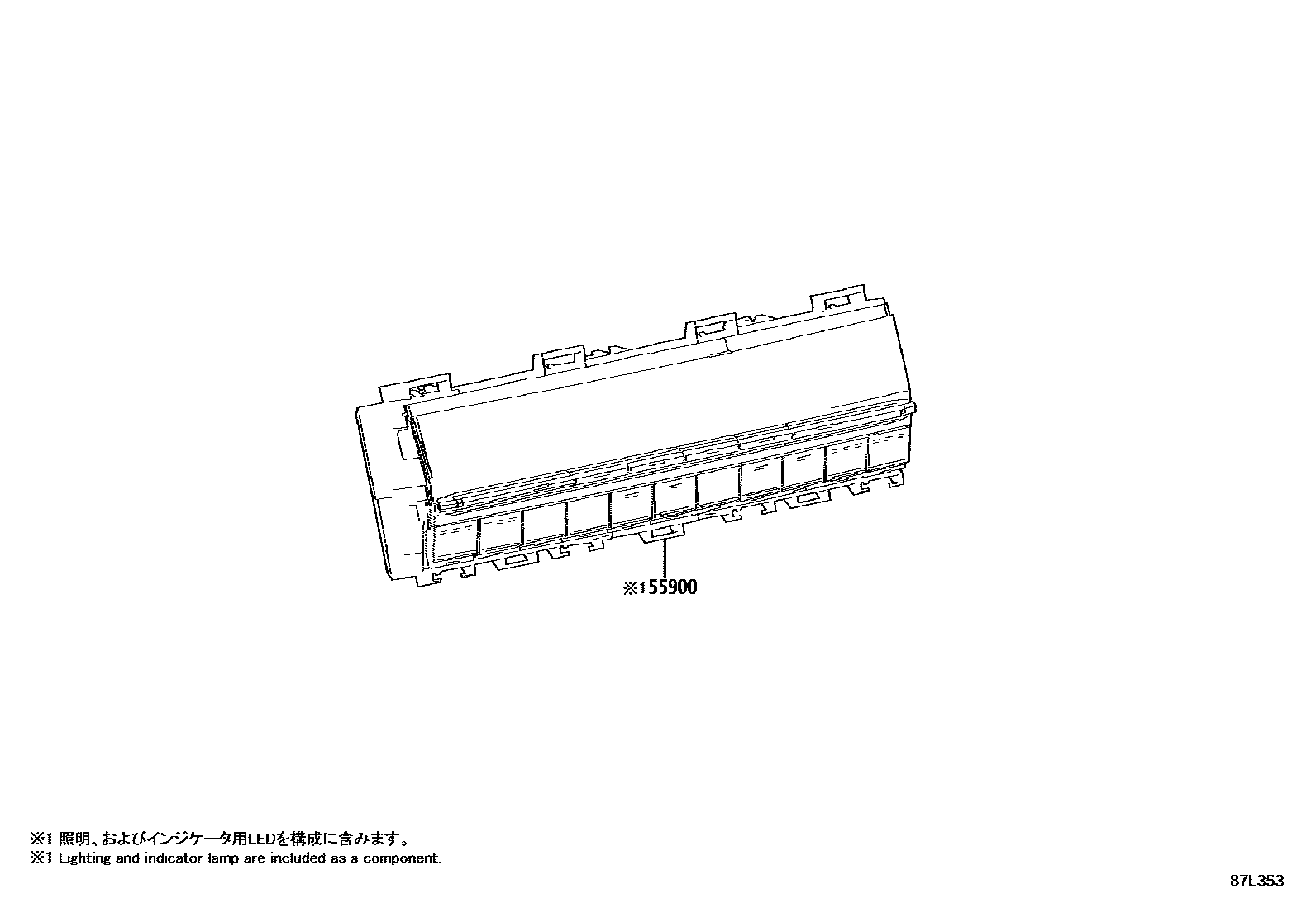

55900CONTROL ASSY, AIR CONDITIONER

main55900-08310iAXLH40..L,P202211-202303

main55900-08320iAXLH40..X202211-202303

main55900-08330iAXLH40..E,N202211-202303

main55900-08440iAXLH40..L,P202303

main55900-08450iAXLH40..X202303-202403

sub55900-08451

main55900-08451iAXLH4#..W,X202404-202509

main55900-08460iAXLH40..E,N202303-202403

sub55900-08461

main55900-08461iAXLH40..E,N202404

main55900-08520iAXLH45..V202404

1 parts on this diagram · 5 diagrams in section
