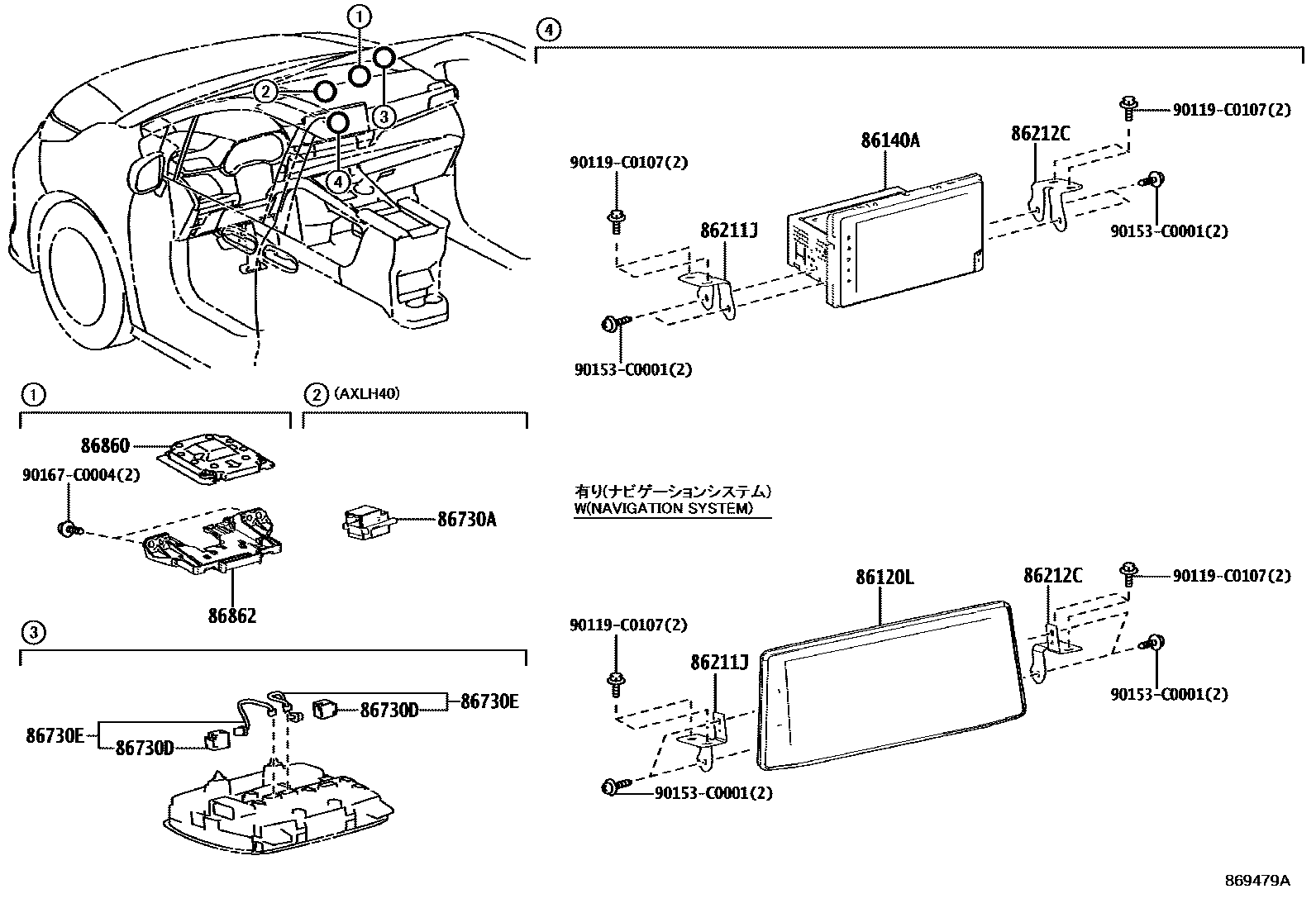

NAVIGATION & FRONT MONITOR DISPLAY

86120LRECEIVER ASSY, NAVIGATION

main86100-08102iAXLH40..L,X202211-202303

DESAY

main86100-08112iAXLH40..P202211-202303

DESAY

main86100-08160iAXLH40..L,X202303-202304

DESAY

sub86100-08161

main86100-08161iAXLH40..L,X202305-202404

DESAY

main86100-08170iAXLH40..P202303-202304

DESAY

sub86100-08171

main86100-08171iAXLH40..P202305-202404

DESAY

main86100-08200iAXLH4#..L,V,W,X202404-202509

DESAY

main86100-08210iAXLH40..P202404-202509

DESAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-08230iAXLH40..E,N202303-202306

DESAY

sub86140-08231

main86140-08231iAXLH40..E,N202307-202404

DESAY

main86140-08520iAXLH40..E,N202211-202303

DESAY

main86140-08550iAXLH40..E,N202404

DESAY

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-08100iAXLH40..L,P,X202211-202404

main86211-08110iAXLH4#..E,N,V,W202211

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-08100iAXLH40..L,P,X202211-202404

main86212-08110iAXLH4#..E,N,V,W202211

86730AMICROPHONE ASSY, TELEPHONE

main86730-08020iAXLH40202211-202404

86730DMICROPHONE ASSY, TELEPHONE, NO.2

main86730-0R050iAXLH4#..L,P,V,W,X202211

86730EMICROPHONE ASSY

main86730-0E080iAXLH4#..L,P,V,W,X202211

86860ANTENNA ASSY, NAVIGATION

main86880-0E020iAXLH40202211-202404

main86880-0R020iAXLH4#202404

86862BRACKET, NAVIGATION ANTENNA

main86862-0E030iAXLH4#202407

main86862-42010iAXLH4#202211-202406

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90167C0004

main90167-C0004

12 parts on this diagram · 1 diagram in section
