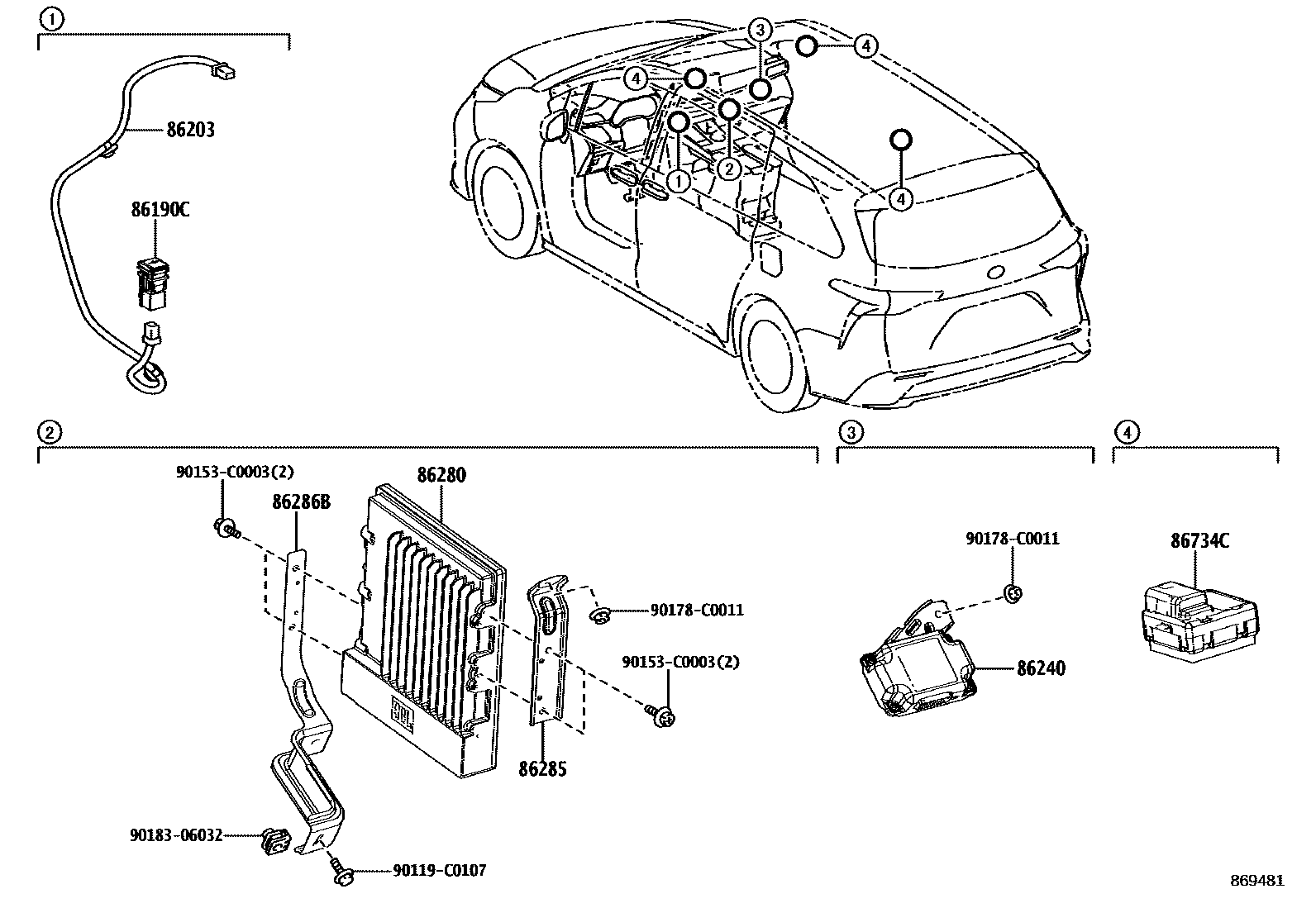

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-08030iAXLH4#..L,P,V,W,X202211

86203WIRE, RADIO

main86203-08080iAXLH40..L,P,X202211-202404

main86203-08220iAXLH4#202404

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-08040iAXLH40..P202211

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-08080iAXLH40..P202211-202404

main86280-08120iAXLH40..P202404-202508

86285BRACKET, AMPLIFIER, NO.1

main86285-08040iAXLH40..P202211

86286BBRACKET, AMPLIFIER, NO.2

main86286-08040iAXLH40..P202211

86734CMICROPHONE, ACTIVE NOISE CONTROL

main86734-08030iAXLH40..P202211

90119C0107

main90119-C0107

90153C0003

main90153-C0003

90178C0011

main90178-C0011

9018306032

main90183-06032

11 parts on this diagram · 2 diagrams in section
