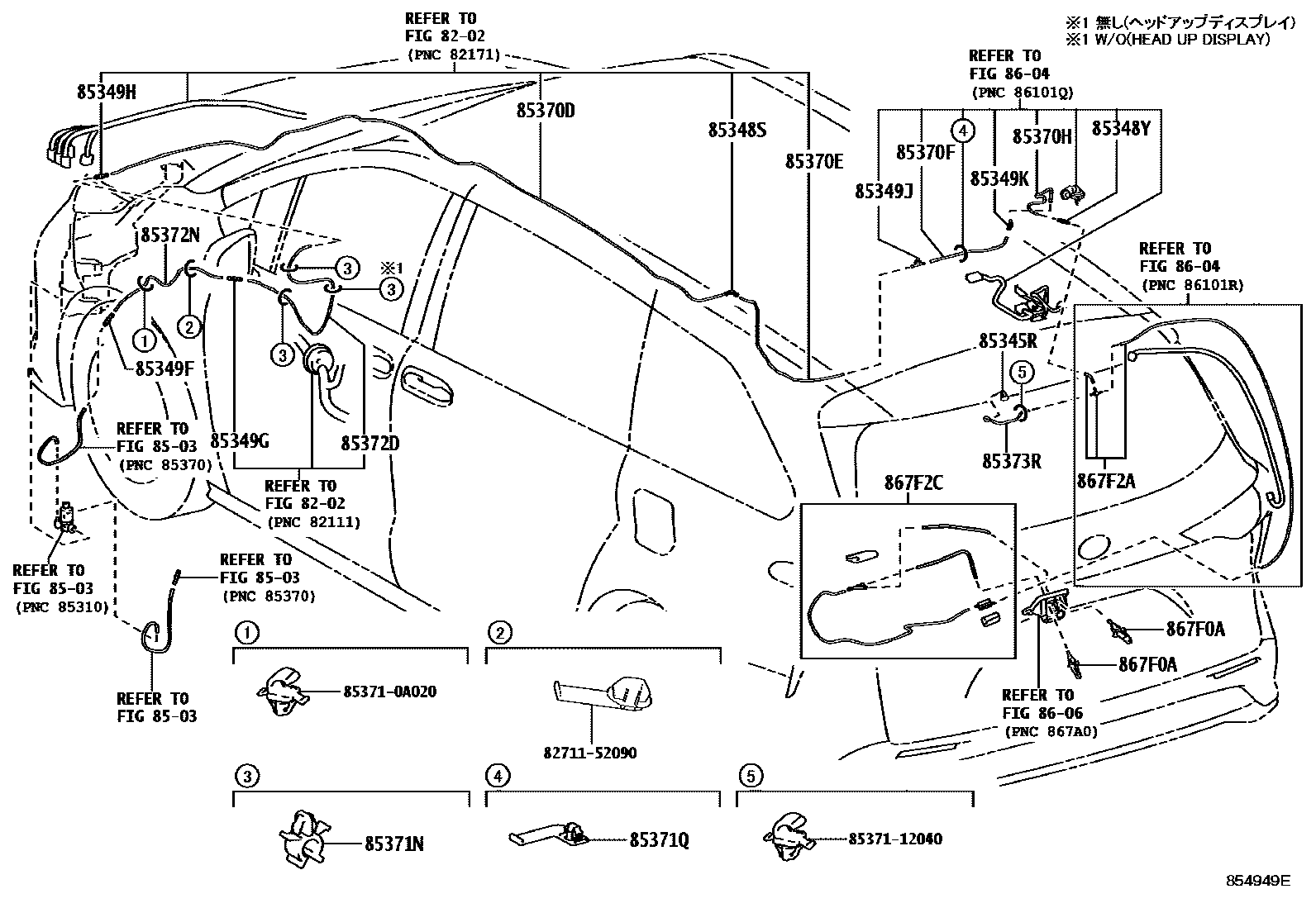

REAR WASHER
8202
8503
85345RNOZZLE, REAR WASHER
85348SJOINT, REAR WASHER ELBOW, NO.1
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349JJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85370DHOSE ASSY, REAR WASHER, NO.1
85370EHOSE ASSY, REAR WASHER, NO.2
85370FHOSE ASSY, REAR WASHER, NO.3
85370HHOSE ASSY, REAR WASHER, NO.4
85371NCLAMP, REAR WASHER HOSE
85371QCLAMP, REAR WASHER HOSE, NO.3
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=750
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=280
8604
8606
867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1
867F2AHOSE ASSY, CAMERA CLEANER
867F2CHOSE, CAMERA CLEANER, NO.2
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
853710A020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-0A020
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
27 parts on this diagram · 1 diagram in section
