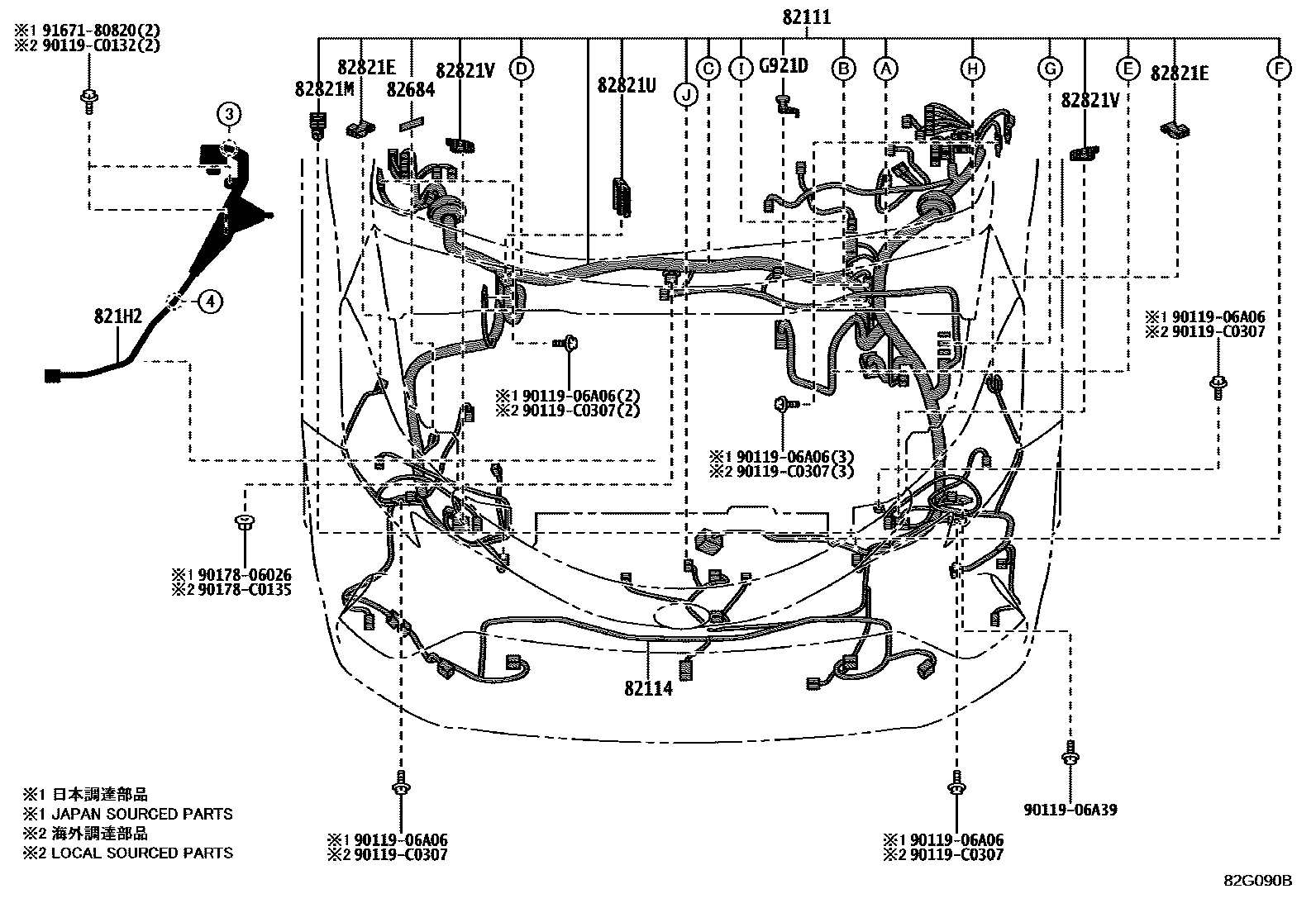

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
BLIND SPOT MONITOR-WITH
SIDE LIFT UP SEAT&BLIND SPOT MONITOR-WITH
SIDE LIFT UP SEAT
BLIND SPOT MONITOR-WITH
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)&BLIND SPOT MONITOR-WITH
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT)
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT)&BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
SIDE LIFT UP SEAT&BLIND SPOT MONITOR-WITH
SIDE LIFT UP SEAT
82114WIRE, ENGINE ROOM, NO.4
821H2WIRE, HV AIR CONDITIONER
82684LABEL, CUT HIGH VOLTAGE ELECTRICITY
82821ECOVER, CONNECTOR
82821MCOVER, CONNECTOR
82821UCOVER, CONNECTOR
82821VCOVER, CONNECTOR
G921DPROTECTOR, INVERTER CONNECTOR COVER
9011906A06
main90119-06A06
9011906A39
main90119-06A39
90119C0132
main90119-C0132
90119C0307
main90119-C0307
9017806026
main90178-06026
90178C0135
main90178-C0135
9167180820
main91671-80820
16 parts on this diagram · 15 diagrams in section
