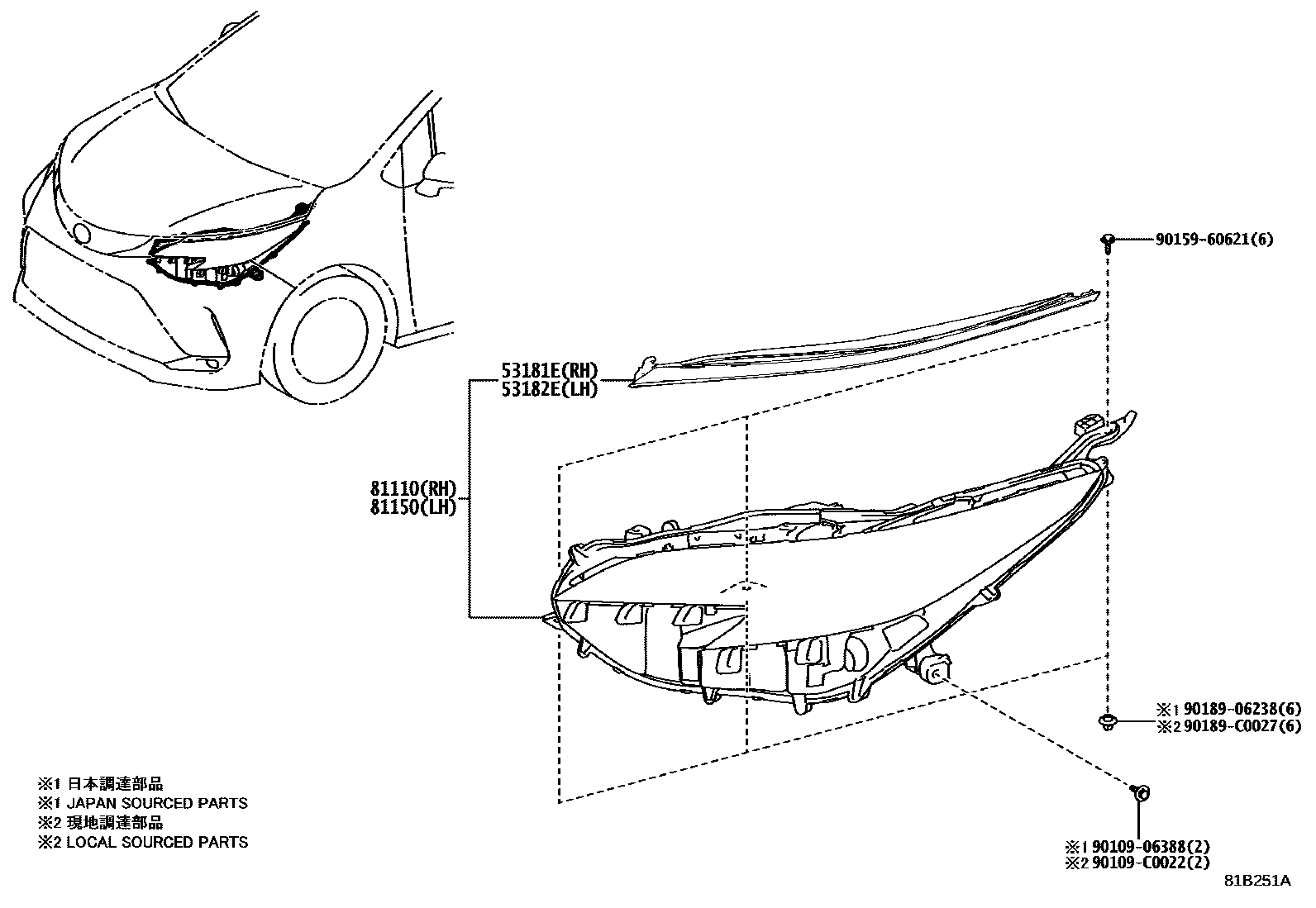

HEADLAMP

0001 1 0002 1

53181ECOVER, HEADLAMP, RH

main53107-08060iAXLH40..E202211

main53107-08070iAXLH4#..L,N,P,V,W,X202211

53182ECOVER, HEADLAMP, LH

main53108-08060iAXLH40..E202211

main53108-08070iAXLH4#..L,N,P,V,W,X202211

81110HEADLAMP ASSY, RH

main81110-08240iAXLH40..E202211-202404

main81110-08241iAXLH40..E202404-202508

main81110-08250iAXLH40..L,N,X202211-202404

main81110-08251iAXLH4#..L,N,W,X202404-202508

main81110-08260iAXLH40..P202211-202404

main81110-08261iAXLH4#..P,V202404-202508

81150HEADLAMP ASSY, LH

main81150-08240iAXLH40..E202211-202404

main81150-08241iAXLH40..E202404-202508

main81150-08250iAXLH40..L,N,X202211-202404

main81150-08251iAXLH4#..L,N,W,X202404-202508

main81150-08260iAXLH40..P202211-202404

main81150-08261iAXLH4#..P,V202404-202508

9010906388

main90109-06388

90109C0022

main90109-C0022

9015960621

main90159-60621

9018906238

main90189-06238

90189C0027

main90189-C0027

9 parts on this diagram · 2 diagrams in section
