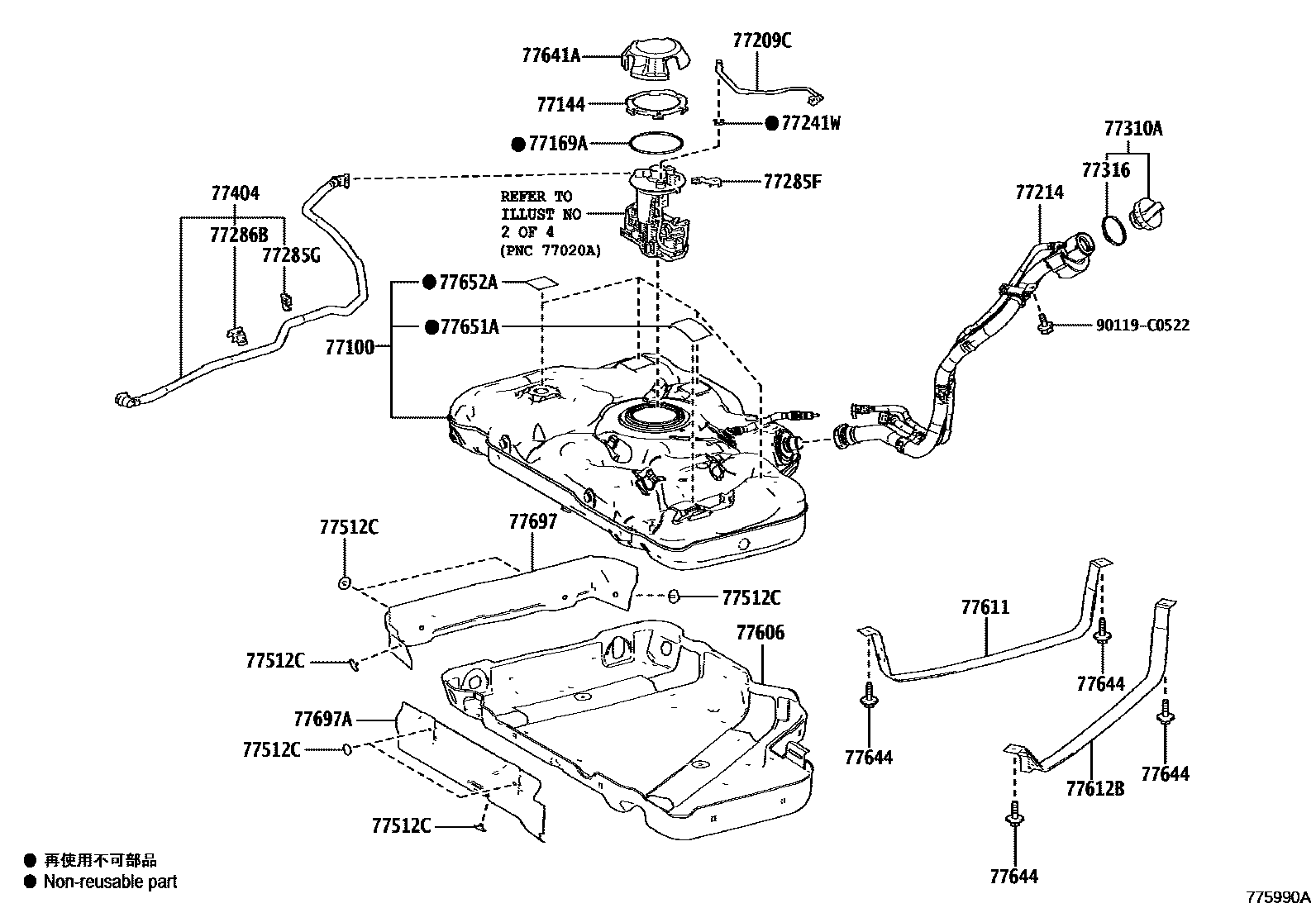

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL PUMP 0003 1FUEL TUBE 0004 1FUEL LID OPNER

77100TANK ASSY, FUEL

main77001-08150iAXLH4#202211

77144RETAINER, FUEL PUMP GAUGE

main77144-F4020iAXLH4#202211

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R050iAXLH4#202211

(L)

main77169-47030iAXLH4#202211

(J)

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-08080iAXLH4#202211

77214PIPE, FUEL TANK FILLER

main77210-08090iAXLH4#202211

77241WCLIP, TUBE JOINT

main77241-02020iAXLH4#202211

77285FCLAMP, FUEL TUBE, NO.1

main77285-08310iAXLH4#202211

77285GCLAMP, FUEL TUBE, NO.1

main77285-0R140iAXLH4#202211

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-08420iAXLH4#202211

77310ACAP ASSY, FUEL TANK

main77300-06110iAXLH4#202211

77316GASKET, FUEL TANK CAP

main77316-75010iAXLH4#202211

(J)

main77316-75020iAXLH4#202211

(L)

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-08120iAXLH4#202211

77512CBRACKET, FUEL TANK

main77512-07010iAXLH4#202211

(L)

main77512-35140iAXLH4#202211

(J)

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-08030iAXLH4#202211

77611BAND, FUEL TANK

main77601-08040iAXLH4#202211

77612BBAND, FUEL TANK, NO.2

main77602-08040iAXLH4#202211

77641APROTECTOR, FUEL TANK, NO.1

main77641-08060iAXLH4#202211

77644BOLT, FUEL TANK

main90119-10A05iAXLH4#202211

(J)

main90119-C0614iAXLH4#202211

(L)

77651ACUSHION, FUEL TANK, NO.1

main77651-08050iAXLH4#202211

77652ACUSHION, FUEL TANK, NO.2

main77651-08060iAXLH4#202211

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-08040iAXLH4#202211

77697AINSULATOR, FUEL TANK HEAT, NO.2

main77698-08020iAXLH4#202211

90119C0522

main90119-C0522

23 parts on this diagram · 4 diagrams in section
