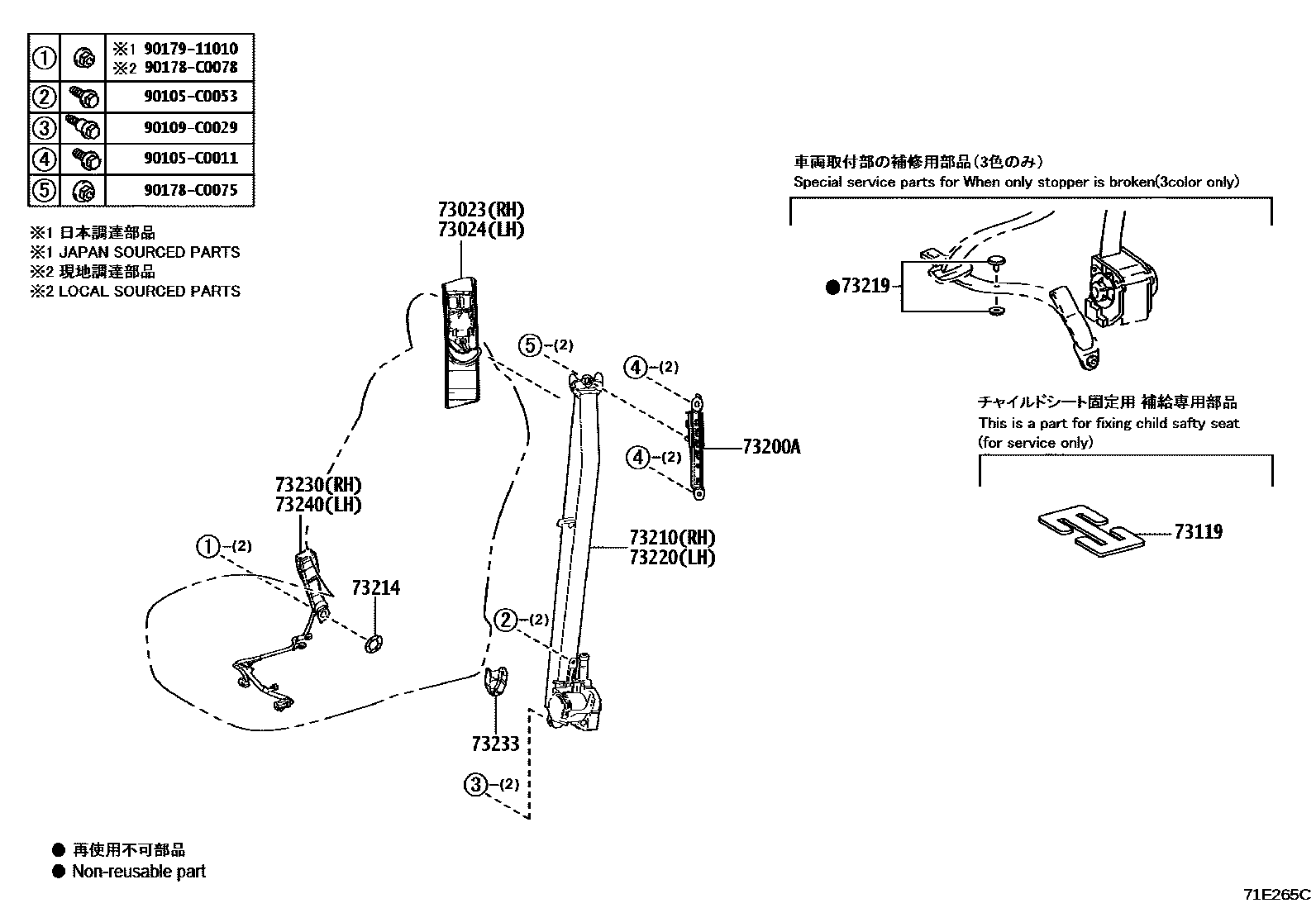

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
FROMAGE,TRIM0#,40
FROMAGE,TRIM0#,11,41
SIDE LIFT UP SEAT,FROMAGE,TRIM11,4#
FROMAGE,TRIM0#,1#,41
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM2#,40,41
NEUTRAL WARM GRAY,TRIM2#
SIDE LIFT UP SEAT,NEUTRAL WARM GRAY,TRIM2#
NEUTRAL WARM GRAY,TRIM2#,4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
SIDE LIFT UP SEAT,FROMAGE,TRIM11,4#
FROMAGE,TRIM0#,11,41
FROMAGE,TRIM0#,40
FROMAGE,TRIM0#,1#,41
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM2#,40,41
NEUTRAL WARM GRAY,TRIM2#
SIDE LIFT UP SEAT,NEUTRAL WARM GRAY,TRIM2#
NEUTRAL WARM GRAY,TRIM2#,4#
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM41
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#,40,41
BLACK,TRIM2#
GREGE,TRIM0#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM41
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,40,41
GREGE,TRIM0#
73230BELT ASSY, FRONT SEAT INNER, RH
FROMAGE,TRIM0#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,40,41
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
NEUTRAL BEIGE,TRIM41
73233COVER, LAP BELT OUTER ANCHOR
FROMAGE,TRIM0#
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM11,2#,40,41
BLACK,TRIM1#,2#,40,41
BLACK,TRIM11,2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
NEUTRAL BEIGE,TRIM41
73240BELT ASSY, FRONT SEAT INNER, LH
FROMAGE,TRIM0#
BLACK,TRIM1#,2#,40,41
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
NEUTRAL BEIGE,TRIM41
BLACK,TRIM1#,2#
90105C0011
main90105-C0011
90105C0053
main90105-C0053
90109C0029
main90109-C0029
90178C0075
main90178-C0075
90178C0078
main90178-C0078
9017911010
main90179-11010
17 parts on this diagram · 4 diagrams in section
