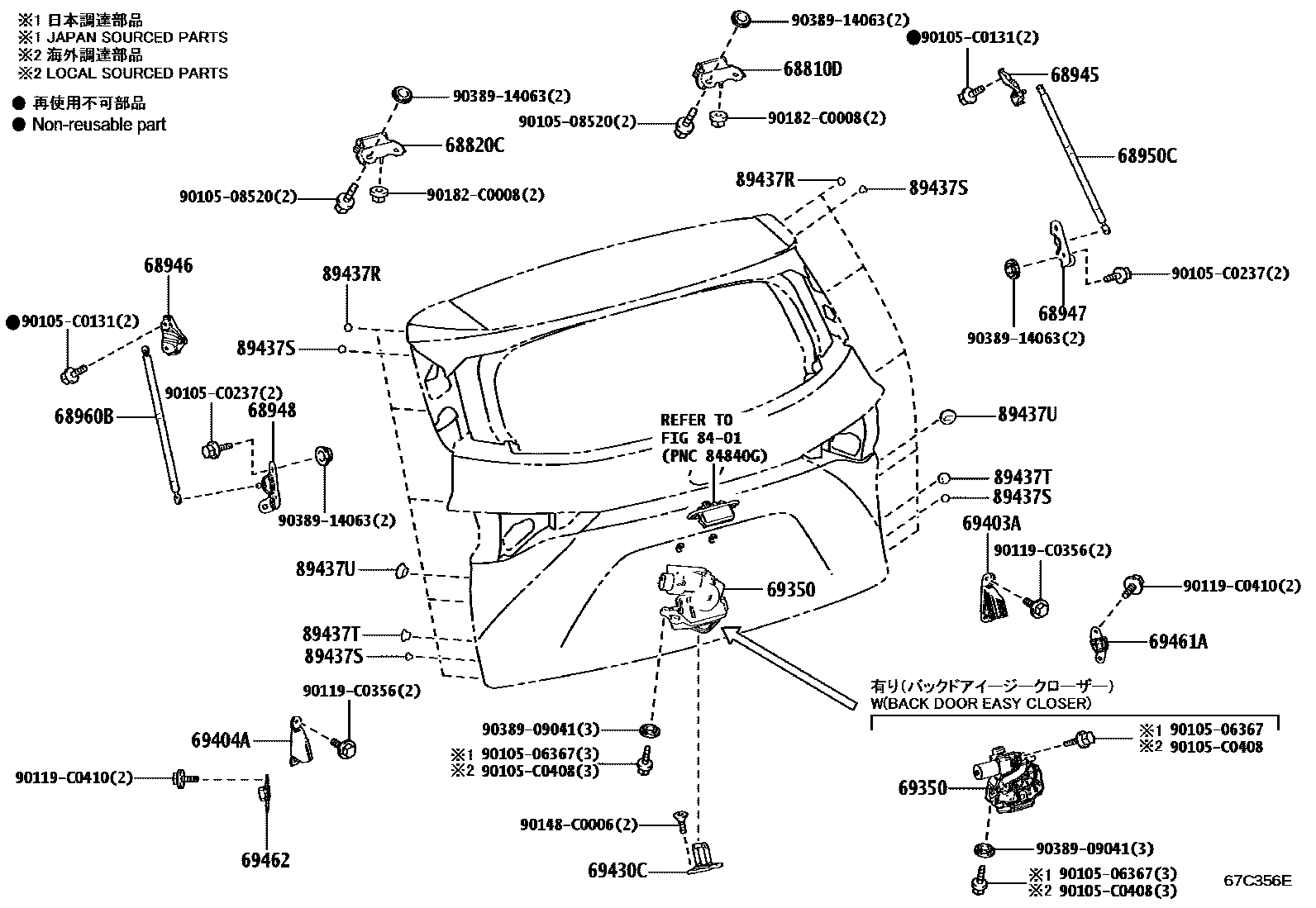

BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-0E320iAXLH4#202304

PAD T=1.5

main68810-0E321iAXLH40202211-202303

PAD T=1.5

68820CHINGE ASSY, BACK DOOR, LH

main68820-0E260iAXLH4#202304

PAD T=1.5

main68820-0E261iAXLH40202211-202303

PAD T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-08060iAXLH40..E,N202211

main68945-08070iAXLH4#..L,P,V,W,X202211

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-08060iAXLH40..E,N202211

main68946-08070iAXLH4#..L,P,V,W,X202211

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-08050iAXLH4#202211

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-08050iAXLH4#202211

68950CSTAY ASSY, BACK DOOR, RH

main68950-08070iAXLH40..E,N202211

68960BSTAY ASSY, BACK DOOR, LH

main68960-08070iAXLH40..E,N202211

69350LOCK ASSY, BACK DOOR

main69350-0E180iAXLH40..E,N202211

main69350-0E190iAXLH4#..L,P,V,W,X202211

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-08050iAXLH4#202211

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-08050iAXLH4#202211

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0R020iAXLH4#202211

69461ASTOPPER, BACK DOOR SIDE MALE

main67281-08050iAXLH4#202211

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-08050iAXLH4#202211

8401

89437RCOVER, SENSOR, NO.1

main89437-0E090iAXLH40..E,N202211

89437SCOVER, SENSOR, NO.2

main89437-0E100iAXLH40..E,N202211

89437TCOVER, SENSOR, NO.3

main89437-0E110iAXLH40..E,N202211

89437UCOVER, SENSOR, NO.4

main89437-0E120iAXLH40..E,N202211

9010506367

main90105-06367

9010508520

main90105-08520

90105C0131

main90105-C0131

90105C0237

main90105-C0237

90105C0408

main90105-C0408

90119C0356

main90119-C0356

90119C0410

main90119-C0410

90148C0006

main90148-C0006

90182C0008

main90182-C0008

9038909041

main90389-09041

9038914063

main90389-14063

30 parts on this diagram · 2 diagrams in section
