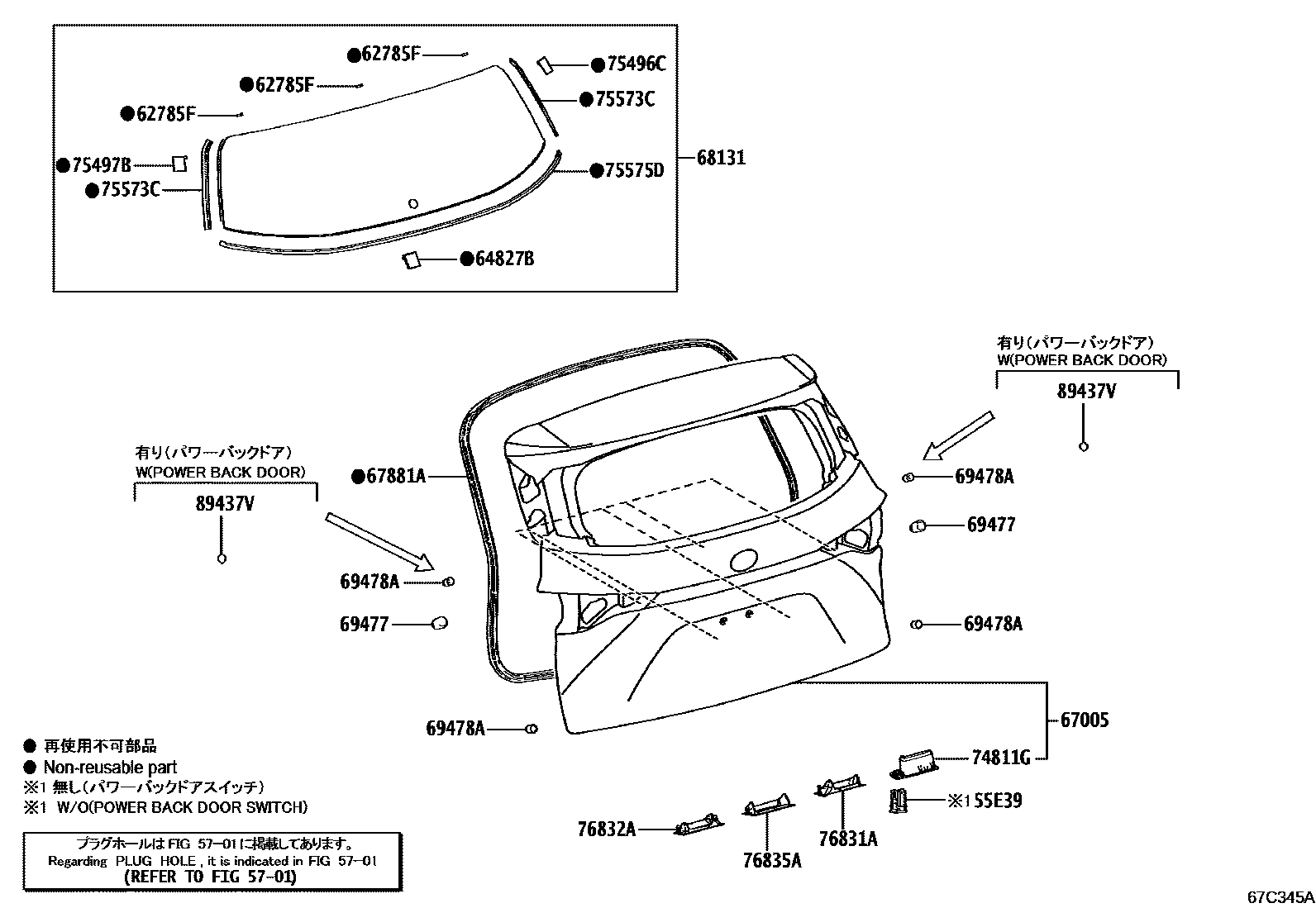

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

55E39COVER, SPARE SWITCH HOLE

main55539-07020iAXLH40..E,N202211

5701

62785FSPACER, BACK DOOR GLASS

main62785-08030iAXLH4#202211

64827BCLIP, BACK WINDOW GLASS, RH

main64827-08030iAXLH4#202211

67005PANEL SUB-ASSY, BACK DOOR

main67005-08220-C0iAXLH4#202211-202509

BLACK MC.,089 ,1K0 ,209 ,221 ,4X9 ,6X3

67881AWEATHERSTRIP, BACK DOOR

main67881-08060iAXLH4#202211

68131GLASS, BACK DOOR

main68105-08140iAXLH40..L,P,X202211-202404

main68105-08150iAXLH4#..E,N,V,W202211

69477CUSHION, BACK DOOR UPPER STOPPER

main69477-0E020iAXLH4#202211

69478ACUSHION, BACK DOOR LOWER STOPPER

main69478-76010iAXLH40..E,N202211

LOWER

74811GHANDLE, DOOR PULL

main74811-08030iAXLH4#202211

75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH

main75496-08030iAXLH4#202211

75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH

main75497-08030iAXLH4#202211

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-08050iAXLH4#202211

75575DMOULDING, BACK WINDOW, LOWER

main75575-08040iAXLH4#202211

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-08030iAXLH4#202211

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-08030iAXLH4#202211

76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1

main76835-08030iAXLH4#202211

89437VCOVER, SENSOR

main89437-0E100iAXLH4#..L,P,V,W,X202211

18 parts on this diagram · 2 diagrams in section
