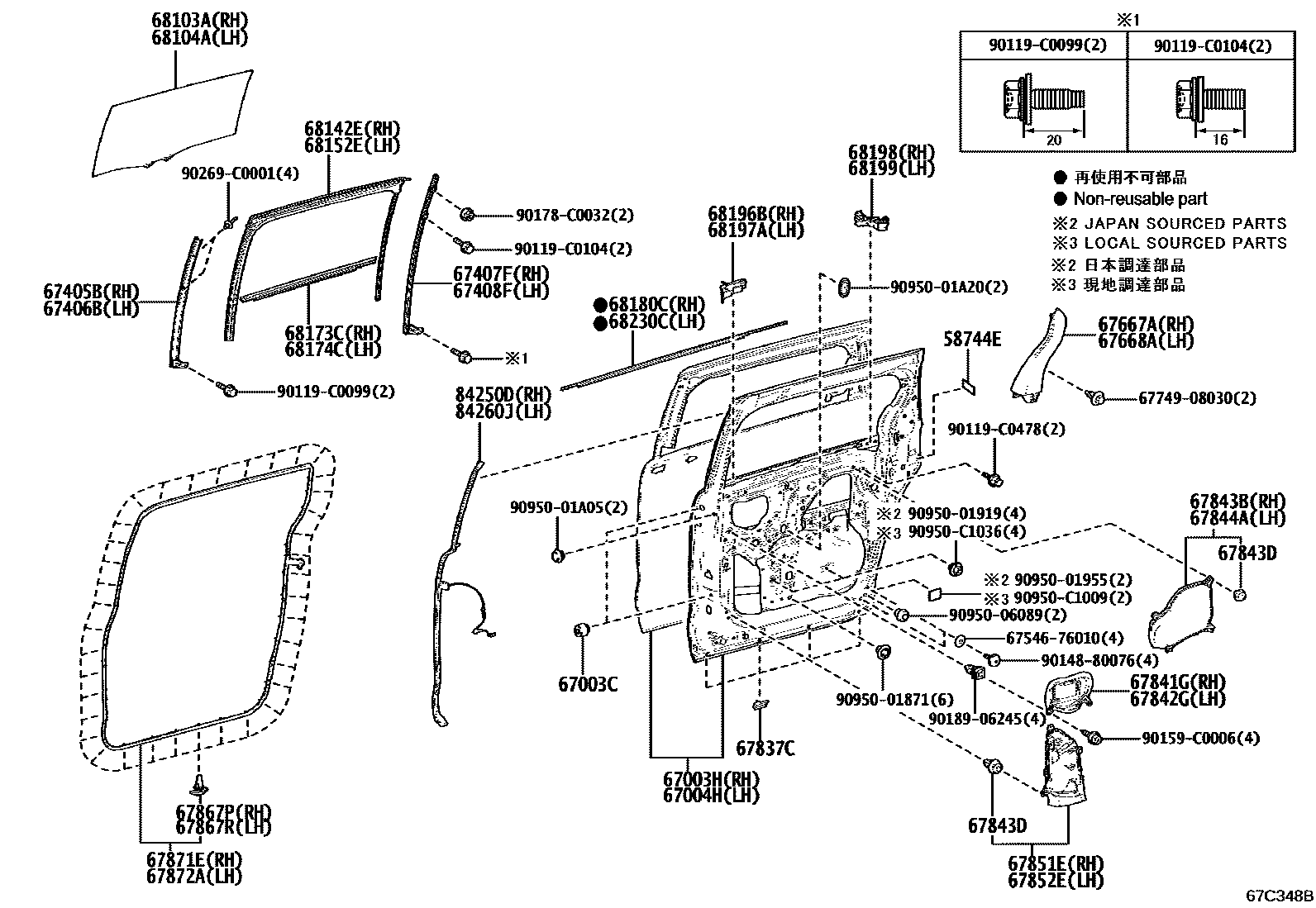

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

58744EPROTECTOR, SLIDE DOOR PANEL, LH

main58743-08090iAXLH4#202211

67003CCUSHION, REAR DOOR PANEL

main90541-12013×4iAXLH4#202211

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-08170iAXLH4#202211

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-08170iAXLH4#202211

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-08030iAXLH4#202211

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-08030iAXLH4#202211

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-08050iAXLH4#202211

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-08050iAXLH4#202211

67667AGARNISH, SLIDE DOOR WINDOW, RH

main67667-08060iAXLH4#202211

67668AGARNISH, SLIDE DOOR WINDOW, LH

main67668-08060iAXLH4#202211

67837CSEAL, REAR DOOR DUST PROOF

main67837-08080×8iAXLH4#202211

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-08050iAXLH40..X202211-202404

main67841-08060iAXLH4#..L,P,V,W202211

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-08050iAXLH40..X202211-202404

main67842-08060iAXLH4#..L,P,V,W202211

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-08060iAXLH40..X202211-202404

main67843-08070iAXLH4#..L,P,V,W202211

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-C0033×16iAXLH4#202211

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-08060iAXLH40..X202211-202404

main67844-08070iAXLH4#..L,P,V,W202211

67851ECOVER, SLIDE DOOR SERVICE HOLE, RH

main67851-08070iAXLH40..X202211-202404

main67851-08080iAXLH4#..L,P,V,W202211

67852ECOVER, SLIDE DOOR SERVICE HOLE, LH

main67852-08070iAXLH40..X202211-202404

main67852-08080iAXLH4#..L,P,V,W202211

67867PRETAINER, SLIDE DOOR WEATHERSTRIP, NO.1

main67867-52010×35iAXLH4#202211

BLUE

main67867-52030iAXLH4#202211

PINK

main67867-52040×2iAXLH4#202211

GREEN

67867RRETAINER, SLIDE DOOR WEATHERSTRIP, NO.3

main67867-52010×2iAXLH4#202211

NATURAL

main67867-52030iAXLH4#202211

PINK

main67867-52040×35iAXLH4#202211

BLUE

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-08060iAXLH4#202211

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-08060iAXLH4#202211

68103AGLASS SUB-ASSY, SLIDE DOOR, RH

main68103-08040iAXLH40..L,P,X202211-202404

main68103-08060iAXLH4#..L,P,V,W,X202404

68104AGLASS SUB-ASSY, SLIDE DOOR, LH

main68104-08040iAXLH40..L,P,X202211-202404

main68104-08060iAXLH4#..L,P,V,W,X202404

68142ERUN, SLIDE DOOR GLASS, RH

main68142-08060iAXLH4#202211

68152ERUN, SLIDE DOOR GLASS, LH

main68152-08050iAXLH4#202211

68173CWEATHERSTRIP, SLIDE DOOR GLASS, INNER RH

main68173-08060iAXLH4#202211

68174CWEATHERSTRIP, SLIDE DOOR GLASS, INNER LH

main68174-08060iAXLH4#202211

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-08050iAXLH4#202211

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-08040iAXLH4#202211

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-08040iAXLH4#202211

68198SEAL, REAR DOOR BELT, REAR RH

main68198-08030iAXLH4#202211

68199SEAL, REAR DOOR BELT, REAR LH

main68199-08030iAXLH4#202211

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-08050iAXLH4#202211

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-08250iAXLH4#202211

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-08080iAXLH4#202211

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010

6774908030CLIP, DOOR TRIM MOULDING

main67749-08030

90119C0099

main90119-C0099

90119C0104

main90119-C0104

90119C0478

main90119-C0478

9014880076

main90148-80076

90159C0006

main90159-C0006

90178C0032

main90178-C0032

9018906245

main90189-06245

90269C0001

main90269-C0001

9095001871

main90950-01871

9095001919

main90950-01919

9095001955

main90950-01955

9095001A05

main90950-01A05

9095001A20

main90950-01A20

9095006089

main90950-06089

90950C1009

main90950-C1009

90950C1036

main90950-C1036

54 parts on this diagram · 2 diagrams in section
