FLOOR MAT & SILENCER PAD

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-08060iAXLH4#..E,L,P,V,W,X202211

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-08040iAXLH4#..E,L,P,V,W,X202211

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-08040iAXLH4#..E,L,P,V,W,X202211

58441JCOVER, BATTERY SERVICE HOLE

main58441-08050-B0iAXLH40..E,N202211-202509

NEUTRAL WARM GRAY,TRIM1#,LH

main58441-08050-C0iAXLH40..E,N202211

BLACK,TRIM2#,LH

main58441-08050-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#,LH

main58441-08050-C0iAXLH45202404

BLACK,TRIM2#,4#,LH

main58441-08060-B0iAXLH40..E,N202211-202509

NEUTRAL WARM GRAY,TRIM10,RH

main58441-08060-C0iAXLH40..E,N202211

BLACK,TRIM0#,1#,2#,4#,RH

main58441-08060-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#,RH

main58441-08060-C0iAXLH45202404

BLACK,TRIM2#,4#,RH

58441NCLIP(FOR BATTERY SERVICE HOLE COVER)

main90467-C0047-B0iAXLH40..E,N,X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main90467-C0047-C0iAXLH40..E,N202211

BLACK,TRIM2#

main90467-C0047-C0iAXLH45202404

BLACK,TRIM2#,4#

58442DCOVER, JACK

main58440-08080-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58440-08080-C0iAXLH40..P202211

BLACK,TRIM2#

main58440-08080-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main58440-08080-C0iAXLH40..X202404

BLACK,TRIM2#,4#

58460GSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iAXLH4#..E,L,P,V,W,X202211

58511FCARPET, FLOOR, FRONT RH

main58511-08070-B1iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58511-08070-C1iAXLH40..P202211

BLACK,TRIM2#

main58511-08070-C1iAXLH40..X202404

BLACK,TRIM2#,4#

main58511-08070-C1iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

58512DCARPET, FLOOR, FRONT LH

main58512-08030-B1iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58512-08030-C1iAXLH40..P202211

BLACK,TRIM2#

main58512-08030-C1iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main58512-08030-C1iAXLH40..X202404

BLACK,TRIM2#,4#

58513DCARPET, FLOOR, FRONT CENTER

main58513-08100-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58513-08100-C0iAXLH40..P202211

BLACK,TRIM2#

main58513-08100-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main58513-08100-C0iAXLH45202404

BLACK,TRIM2#,4#

main58513-08110-B0iAXLH40..X202211-202404

SIDE LIFT UP SEAT,NEUTRAL WARM GRAY,TRIM10

main58513-08110-C0iAXLH40..X202404

SIDE LIFT UP SEAT,BLACK,TRIM1#,2#,4#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-C0059-C0iAXLH4#..E,L,P,V,W,X202211

BLACK

58556FCLIP, REAR FLOOR SILENCER

main90467-C0059-C0iAXLH40202211-202311

BLACK

58651DSHEET, REAR FLOOR SILENCER, NO.1

main58651-08170iAXLH4#..E,L,P,V,W,X202211

main58651-08180iAXLH40..X202211

SIDE LIFT UP SEAT

58653BSHEET, REAR FLOOR SILENCER, NO.2

main58653-08070iAXLH4#..E,L,P,V,W,X202211

58661SHEET, REAR FLOOR SILENCER, NO.3

main58611-08080iAXLH4#..E,L,P,V,W,X202211

58694APLATE, MAT SET, UPPER

main58694-33010iAXLH4#..E,L,P,V,W,X202211

58698BPLATE, MAT SET, LOWER

main58698-33010iAXLH4#..E,L,P,V,W,X202211

58792JSUPPORT, JACK CARRIER

main58792-0E060iAXLH4#..E,L,P,V,W,X202211

64993CBOX, DECK FLOOR, REAR

main64993-08030iAXLH4#..E,L,P,V,W,X202211

67935PLATE, BACK DOOR SCUFF

main67935-08060-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main67935-08060-C0iAXLH40..X202404

BLACK,TRIM2#

main67935-08060-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main67935-08060-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

7158

8201

8715

C3224SPACER, FLOOR PANEL SIDE, LH

mainC322408030iAXLH4#..E,L,P,V,W,X202211

9011906A44

main90119-06A44

90119C0632

main90119-C0632

90178C0011

main90178-C0011

9046705171

main90467-05171

9046706147

main90467-06147

9046713079

main90467-13079

90467C0036

main90467-C0036

90467C0046

main90467-C0046

90467C0087

main90467-C0087

90467C0093

main90467-C0093

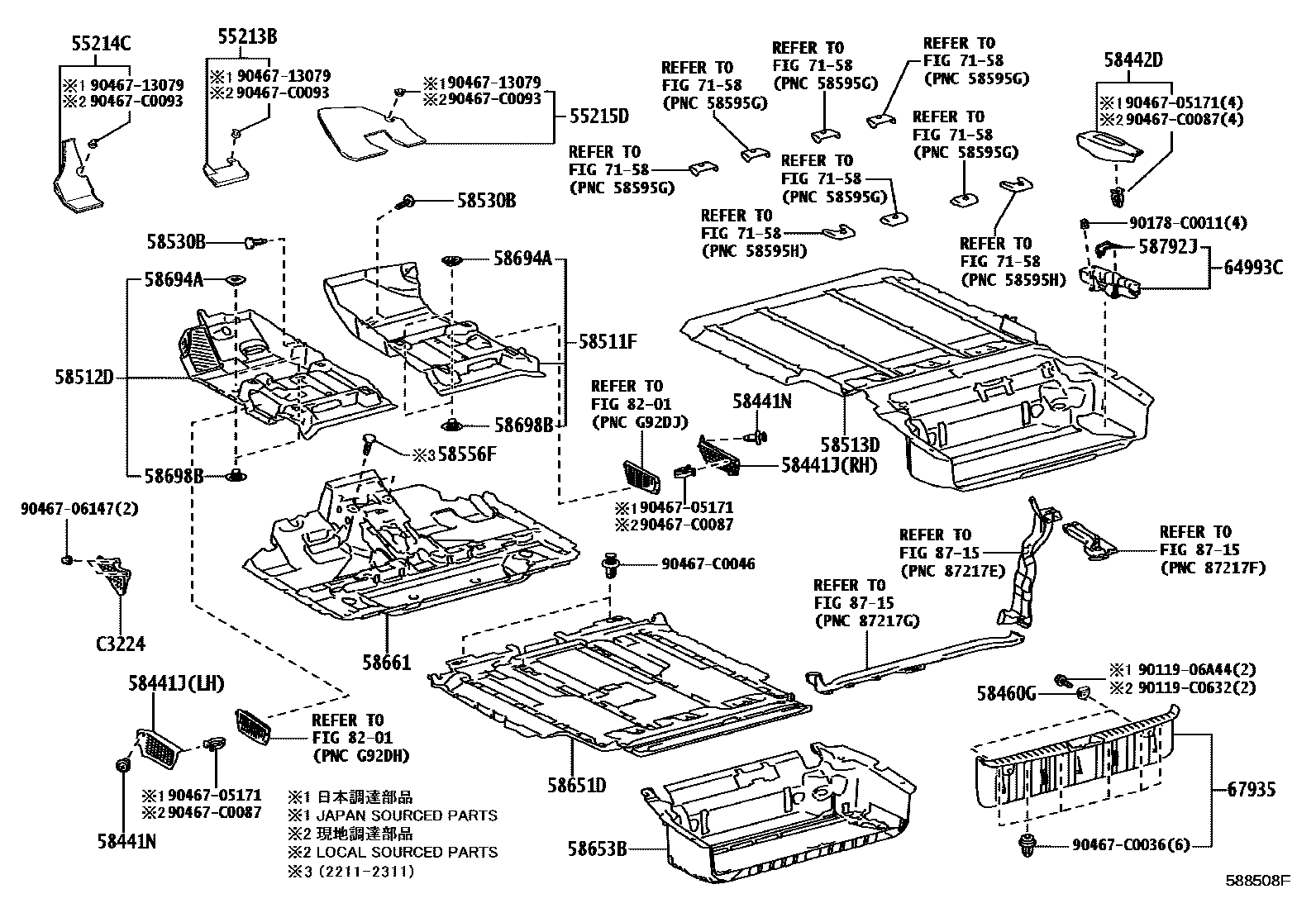

34 parts on this diagram · 1 diagram in section
