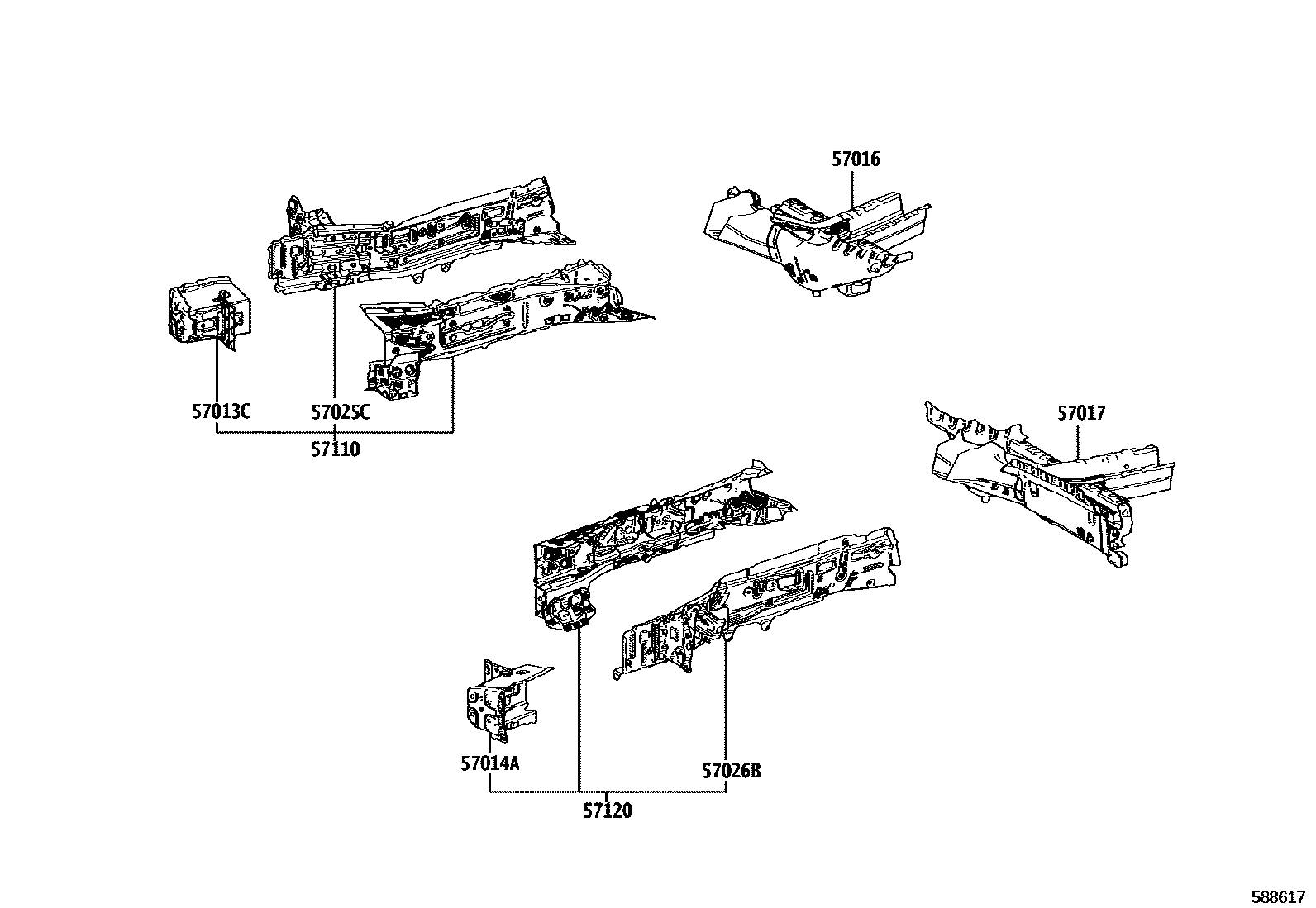

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FRONT SIDE MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR PANEL

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-08100iAXLH4#..E,L,P,V,W,X202211

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-08040iAXLH4#..E,L,P,V,W,X202211

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-08040iAXLH4#..E,L,P,V,W,X202211

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-08040iAXLH4#..E,L,P,V,W,X202211

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-08050iAXLH4#..E,L,P,V,W,X202211

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-08050iAXLH4#..E,L,P,V,W,X202211

57110MEMBER ASSY, FRONT SIDE, RH

main57110-08030iAXLH4#..E,L,P,V,W,X202211

57120MEMBER ASSY, FRONT SIDE, LH

main57120-08030iAXLH4#..E,L,P,V,W,X202211

8 parts on this diagram · 3 diagrams in section
