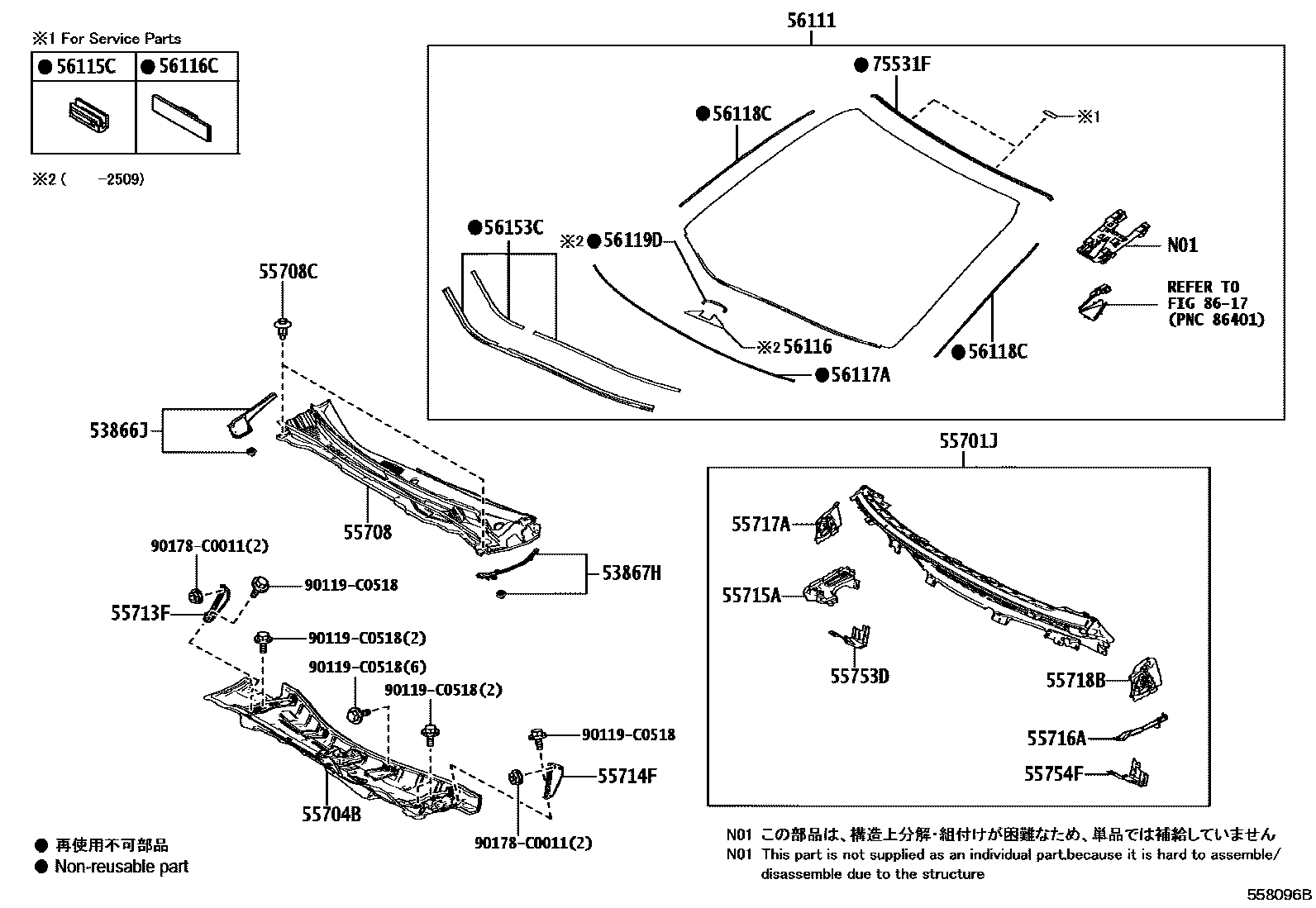

COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-08050iAXLH40..N202211

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-08050iAXLH4#..E,L,P,V,W,X202211

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-08050iAXLH4#..E,L,P,V,W,X202211

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-08070iAXLH4#..E,L,P,V,W,X202211

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-08070iAXLH4#..E,L,P,V,W,X202211

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-08180iAXLH4#..E,L,P,V,W,X¥130202211

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55713-08040iAXLH4#..E,L,P,V,W,X202211

55714FREINFORCEMENT, COWL TOP SIDE, LH

main55714-08040iAXLH4#..E,L,P,V,W,X202211

55715ABRACE, COWL TOP TO APRON, RH

main55715-08040iAXLH4#..E,L,P,V,W,X202211

55716ABRACE, COWL TOP TO APRON, LH

main55716-08040iAXLH4#..E,L,P,V,W,X202211

55717APANEL, COWL TOP SIDE, INNER RH

main55717-08090iAXLH4#..E,L,P,V,W,X202211

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-08080iAXLH4#..E,L,P,V,W,X202211

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-08030iAXLH4#..E,L,P,V,W,X202211

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-08030iAXLH40..N202211

56111GLASS, WINDSHIELD

main56101-08450iAXLH4#..W,X202404-202509

W(HEAD UP DISPLAY)

main56101-08460iAXLH45..V202404-202509

main56101-08480iAXLH40..L202404-202509

main56101-08550iAXLH40..N202211-202509

main56101-08560iAXLH40..L202211-202404

main56101-08570iAXLH40..P202211-202509

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iAXLH4#¥130202211

56116SPACER, WINDSHIELD GLASS

main56116-08030iAXLH40..X202211-202509

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXLH4#¥120202211

56117ADAM, WINDOW GLASS ADHESIVE

main56117-08070iAXLH40..N202211-202509

L=1524

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-08030iAXLH40..X202211-202509

56119DDAM, WINDOW GLASS ADHESIVE, NO.3

main56119-08030iAXLH40..X202211-202509

L=104

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-08040iAXLH40..X202211-202509

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-08050iAXLH40..X202211-202509

8617

90119C0518

main90119-C0518

90178C0011

main90178-C0011

26 parts on this diagram · 1 diagram in section
